ATL - 8 Pages

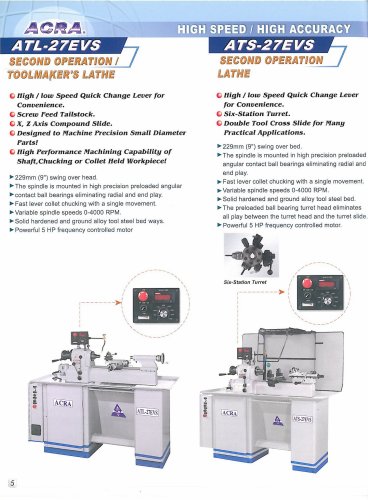

HIGH SPEED / HIGH ACCURACY

ATS-27EVS SÊ

TOOLMAjiER'S LATHE

C High I low Speed Quick Change Lever for

Convenience.

G Screw Feed Tailstock.

G X, Z Axis Compound Slide.

G Designed to Machine Precision Small Diameter

Parts!

G High Performance Machining Capability of

Shaft.Chucking or Collet Held Workptece!

► 229mm (9") awing over head.

►-The spindle is mounted in high precision preloaded angular

► coniaci ball bearings eliminating radial and end play.

► Fast lever collet chucking with a single movement.

► Variable spindle speeds 0-4000 RPM.

► Solid hardened and ground alloy tool steel bed ways.

► Powerful 5 HP frequency controlled motor

SECOND OPERATION_/

G High I low Speed Quick Change Lever

for Convenience.

G Six-Station Turret.

G Double Tool Cross Slide for Many

Practical Applications.

► 229mm (9"] swing over bed.

► The spindle is mounted in high precision preloaded

angular contact ball bearings eliminating radial and

end play.

► Fast lever collet chucking with a single movement.

► Variable spindle speeds 0-4000 RPM.

► Solid hardened and ground alloy tool steel bed.

► The preloaded ball bearing turret head eliminates

all play between the lurret head and the turret slide.

► Powerful 5 HP frequency controlled motor.

5

ATL
  1. P. 1

    to 0.0015mm (50 millionths inch) Designing, engineering and manufacturing to the highest accuracy standards.
  2. P. 2

    AGRA. H:I»*Í«I«H;««]I'/IJ¿U:I: C Guaranteed Circular Accuracy 0.0015mm (50 millionths of an inch) C- Teach-in...
  3. P. 3

    C Guaranteed Circular Accuracy 0.0015mm (50 millionth.*, of an inch) C Gang-Type Tooling System C CE Standard Splash Guard (Optional) G X,...
  4. P. 4

    HIGH SPEED / HIGH ACCURACY new Design The first choice of toolmakers! ►■Good for pilch and module turning processing without any...
  5. P. 5

    The first choice of toolmakers \ C Ruggedly constructed to withstand continuous production. With Inch I Metric Dual Systems ►•280mm...
  6. P. 6

  7. P. 7

    AGB9A. CHUCKING LATHE í¿ High I low Speed Quick Change Lever for Convenience. C A Heavy Duty Chucking Machine Produced C to Meel...
  8. P. 8

    AGRA ATL-618CNC ATL-606CNC Maximum Swing280mm (11")200mm Í8")Maximum Turning Diameter150mm (6")150mm (6")Maximum Turning Lenglh457mm {18")150mm...
