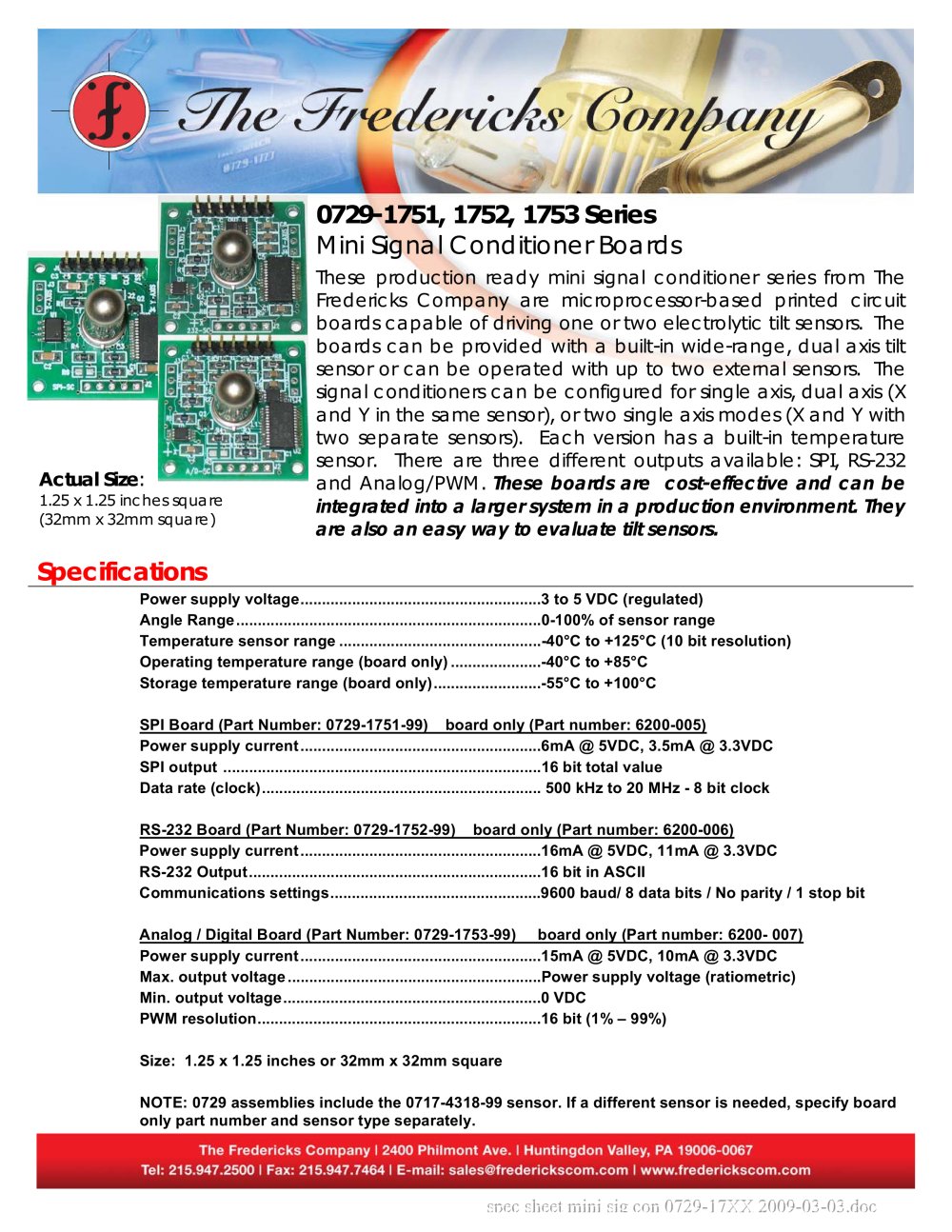

0729-1751, 1752, 1753 Series Mini Signal Conditioner Boards These production ready mini signal conditioner series from The Fredericks Company are microprocessor-based printed circuit boards capable of driving one or two electrolytic tilt sensors. The boards can be provided with a built-in wide-range, dual axis tilt sensor or can be operated with up to two external sensors. The signal conditioners can be configured for single axis, dual axis (X and Y in the same sensor), or two single axis modes (X and Y with two separate sensors). Each version has a built-in temperature sensor. There are three different outputs available: SPI, RS-232 and Analog/PWM. These boards are cost-effective and can be integrated into a larger system in a production environment. They are also an easy way to evaluate tilt sensors. Specifications Power supply voltage........................................................3 to 5 VDC (regulated) Angle Range.......................................................................0-100% of sensor range Temperature sensor range...............................................-40°C to +125°C (10 bit resolution) Operating temperature range (board only).....................-40°C to +85°C Storage temperature range (board only).........................-55°C to +100°C SPI Board (Part Number: 0729-1751-99) board only (Part number: 6200-005) Power supply current........................................................6mA @ 5VDC, 3.5mA @ 3.3VDC SPI output ..........................................................................16 bit total value Data rate (clock)................................................................. 500 kHz to 20 MHz - 8 bit clock RS-232 Board (Part Number: 0729-1752-99) board only (Part number: 6200-006) Power supply current........................................................16mA @ 5VDC, 11mA @ 3.3VDC RS-232 Output....................................................................16 bit in ASCII Communications settings.................................................9600 baud/ 8 data bits / No parity / 1 stop bit Analog / Digital Board (Part Number: 0729-1753-99) board only (Part number: 6200- 007) Power supply current........................................................15mA @ 5VDC, 10mA @ 3.3VDC Max. output voltage...........................................................Power supply voltage (ratiometric) Min. output voltage............................................................0 VDC PWM resolution..................................................................16 bit (1% – 99%) Size: 1.25 x 1.25 inches or 32mm x 32mm square NOTE: 0729 assemblies include the 0717-4318-99 sensor. If a different sensor is needed, specify board only part number and sensor type separately. Actual Size: 1.25 x 1.25 inches square (32mm x 32mm square)
