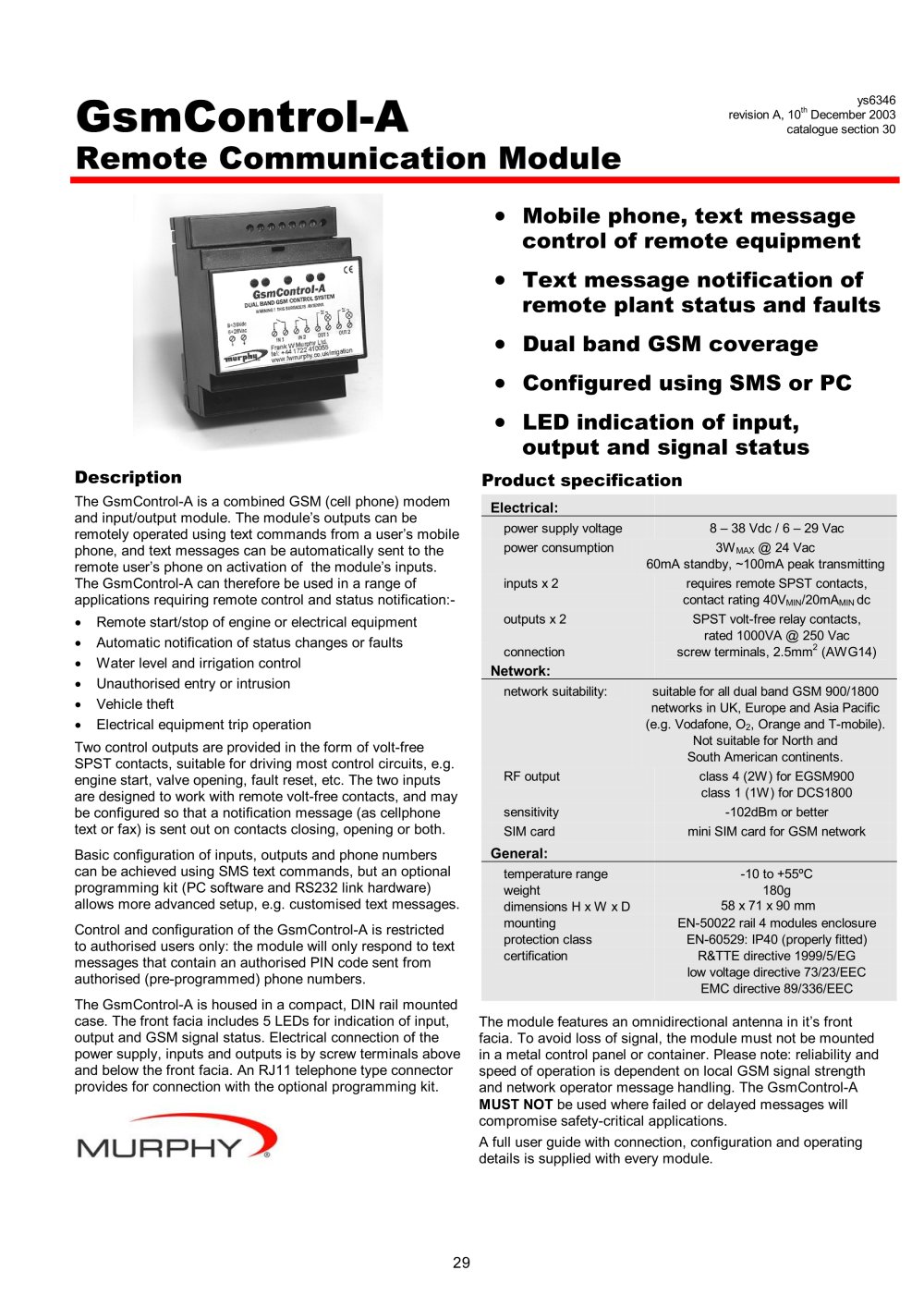

| Description The GsmControl-A is a combined GSM (cell phone) modem and input/output module. The module's outputs can be remotely operated using text commands from a user's mobile phone, and text messages can be automatically sent to the remote user's phone on activation of the module's inputs. T-i.: Csrr CO'V.::: i ■ i" '"ore Oincf.! of applications requiring remote control and status notification:- • Remote start/stop of engine or electrical equipment • Automatic notification of status changes or faults • Water level and irrigation control • Unauthorised entry or intrusion • Vehicle theft • Electrical equipment trip operation Two control outputs are provided in the form of volt-free SPST contacts, suitable for driving most control circuits, e.g. engine start, valve opening, fault reset, etc. The two inputs ti-e <:h5 ij'ied to work with remote volt-free contacts, and may be configured so that a notification message (as cellphone text or fax) is sent out on contacts closing, opening or both. Basic configuration of inputs, outputs and phone numbers can be achieved using SMS text commands, but an optional programming kit (PC software and RS232 link hardware) allows more advanced setup, e.g. customise* C: 'i ol ivid configuration of the GsmControl-to authorised users only: the module will only respond to text messages that contain an authorised PIN code sent from authorised (pre-programmed) phone numbers. The GsmControl-A is housed in a compact, DIN rail mountec case. The front facia includes 5 LEDs for indication of input, output and GSM signal stains FIsclricK-l connection of the power supply, inputs and outputs is by screw terminals abovi and below the front facia. An RJ11 telephone provides for connection with the optional programming |
