| Keystart 7210 & 9610 series » ^5 catalogue section 75 Engine and Generator Controls | ||||||||||||||||||||||||||||||||||
| Manual start/stop Keyswitch operation Timed preheat output Automatic fault shutdowns Overspeed shutdown, magnetic pickup or generator AC driven 72mm or 96mm DIN case | ||||||||||||||||||||||||||||||||||
| Si ^ ED | ||||||||||||||||||||||||||||||||||

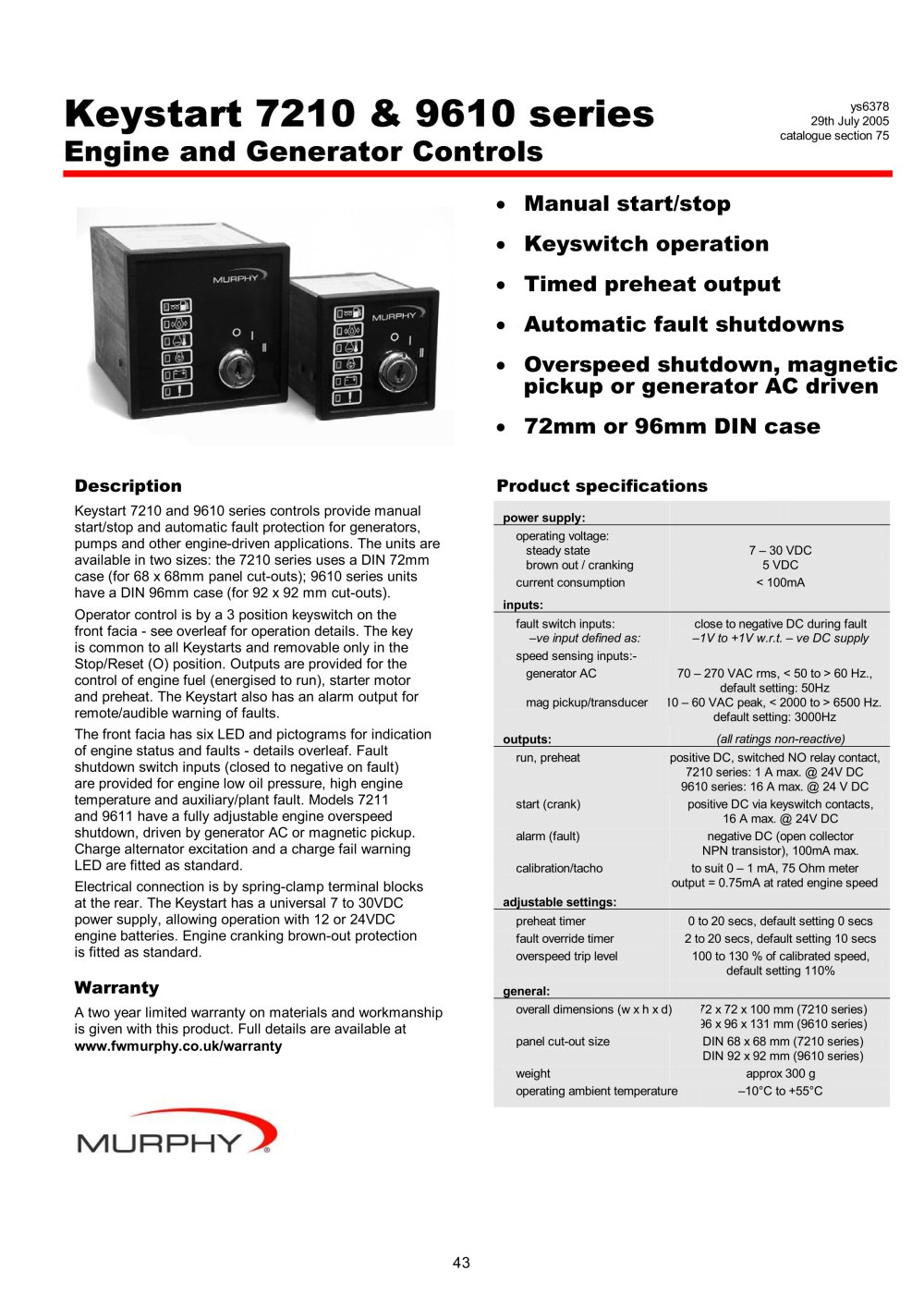

| Description Keystart 7210 and 9610 series controls provide manual start/stop and automatic fault protection for generators, pumps and other engine-driven applications. The units are available in two sizes: the 7210 series uses a DIN 72mm case (for 68 x 68mm panel cut-outs); 9610 series units have a DIN 96mm case (for 92 x 92 mm cut-outs). Operator control is by a 3 position keyswitch on the front facia - see overleaf for operation details. The key is common to all Keystarts and removable only in the Stop/Reset (O) position. Outputs are provided for the control of engine fuel (energised to run), starter motor and preheat. The Keystart also has an alarm output for remote/audible warning of faults. The front facia has six LED and pictograms for indication of engine status and faults - details overleaf. Fault shutdown switch inputs (closed to negative on fault) are provided for engine low oil pressure, high engine temperature and auxiliary/plant fault. Models 7211 and 9611 have a fully adjustable engine overspeed shutdown, driven by generator AC or magnetic pickup. Charge alternator excitation and a charge fail warning LED are fitted as standard. Electrical connection is by spring-clamp terminal blocks at the rear. The Keystart has a universal 7 to 30VDC power supply, allowing operation with 12 or 24VDC engine batteries. Engine cranking brown-out protection is fitted as standard. Warranty A two year limited warranty on materials and workmanship is given with this product. Full details are available at www.fwmurphy.co.uk/warranty | Product specifications | |||||||||||||||||||||||||||||||||
| power supply: | ||||||||||||||||||||||||||||||||||
| operating voltage: steady state brown out / cranking current consumption inputs:_ | ||||||||||||||||||||||||||||||||||
| 7 - 30 VDC 5 VDC < 100mA | ||||||||||||||||||||||||||||||||||
| fault switch inputs: -ve input defined as: speed sensing inputs:-generator AC mag pickup/transducer outputs: | close to negative DC during fault -1V to +1V w.r.t. - ve DC supply 70 - 270 VAC rms, < 50 to > 60 Hz., default setting: 50Hz 10 - 60 VAC peak, < 2000 to > 6500 Hz. default setting: 3000Hz _(all ratings non-reactive)_ | |||||||||||||||||||||||||||||||||
| run, preheat start (crank) alarm (fault) calibration/tacho adjustable settings: | positive DC, switched NO relay contact, 7210 series: 1 A max. @ 24V DC 9610 series: 16 A max. @ 24 V DC positive DC via keyswitch contacts, 16 A max. @ 24V DC negative DC (open collector NPN transistor), 100mA max. to suit 0 - 1 mA, 75 Ohm meter output = 0.75mA at rated engine speed | |||||||||||||||||||||||||||||||||
| preheat timer fault override timer overspeed trip level general:_ | 0 to 20 secs, default setting 0 secs 2 to 20 secs, default setting 10 secs 100 to 130 % of calibrated speed, default setting 110% | |||||||||||||||||||||||||||||||||
| overall dimensions (w x h x d) panel cut-out size weight operating ambient temperature | 72 x 72 x 100 mm (7210 series) 96 x 96 x 131 mm (9610 series) DIN 68 x 68 mm (7210 series) DIN 92 x 92 mm (9610 series) approx 300 g -10°C to +55°C | |||||||||||||||||||||||||||||||||
