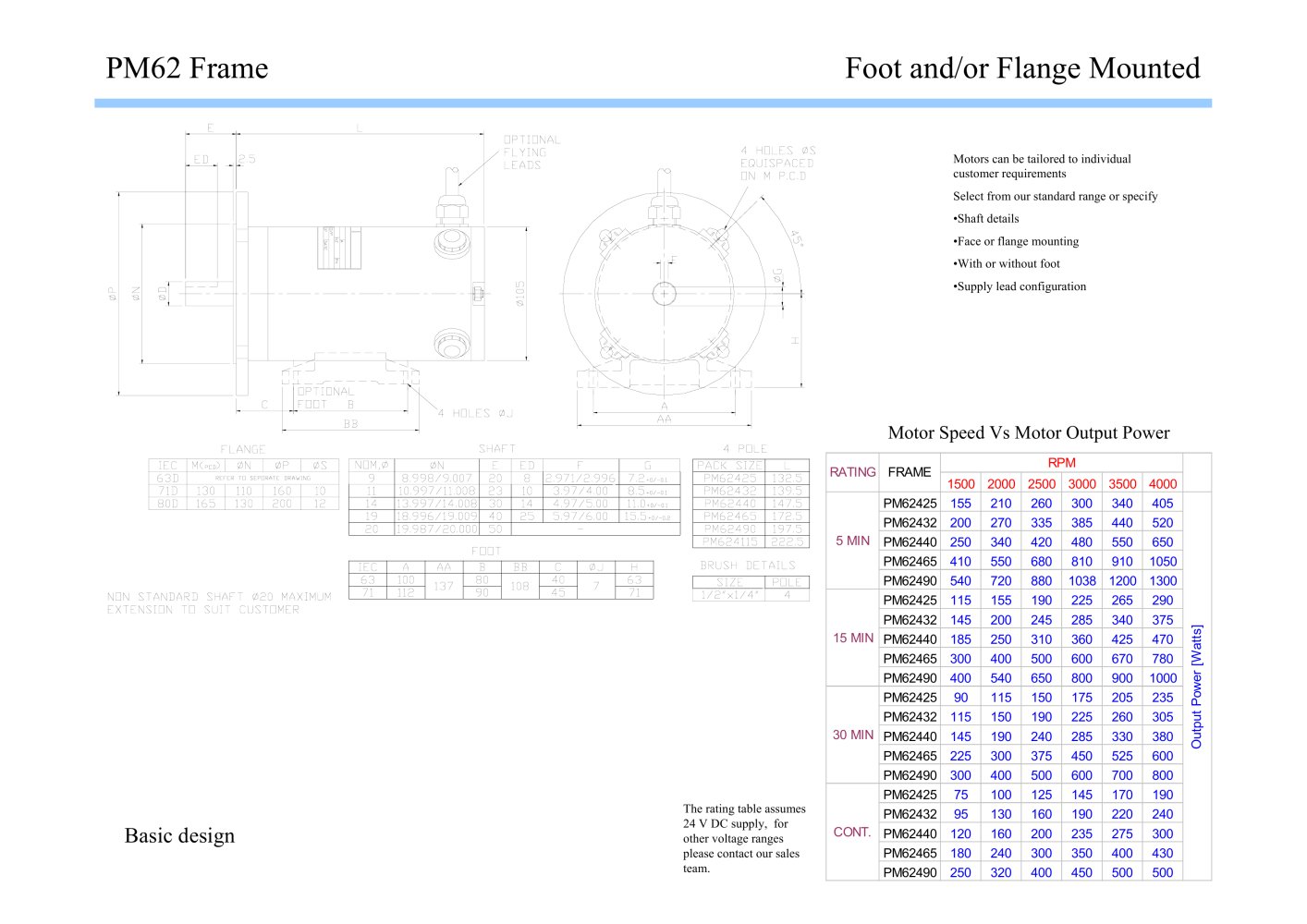

Foot and/or Flange Mounted

PM62 Frame

Motors can be tailored to individual customer requirements

Select from our standard range or specify

•Shaft details

•Face or flange mounting

•With or without foot

•Supply lead configuration

Motor Speed Vs Motor Output Power

SHAFT

4 PELE

FLANGE


	RATING	FRAME	RPM
	RATING	FRAME	1500	2000	2500	3000	3500	4000
	5 MIN	PM62425	155	210	260	300	340	405
		PM62432	200	270	335	385	440	520
		PM62440	250	340	420	480	550	650
		PM62465	410	550	680	810	910	1050
		PM62490	540	720	880	1038	1200	1300
	15 MIN	PM62425	115	155	190	225	265	290
		PM62432	145 200		245	285	340	375
		PM62440	185 250		310	360	425	470
		PM62465	300	400	500	600	670	780
		PM62490	400	540	650	800	900	1000
	30 MIN	PM62425	90	115	150	175	205	235
		PM62432	115	150	190	225	260	305
		PM62440	145	190	240	285	330	380
		PM62465	225	300	375	450	525	600
		PM62490	300	400	500	600	700	800
	CONT.	PM62425	75	100	125	145	170	190
		PM62432	95	130	160	190	220	240
		PM62440	120	160	200	235	275	300
		PM62465	180	240	300	350	400	430
		PM62490	250	320	400	450	500	500


	IFF	M(pgd)	0N	0P	0S
	63D	refer td sepdrate drawing
	71D	130	110	160	10
	80D	165	130	300	13


	NEMj0	0N	E	ED	F	G
	9	8,998/9,007	30	8	3,971/3,996	7,2 +0/-0.1
	11	10,997/11,008	33	10	3,97/4,00	8,5 +0/-0.1
	14	13,997/14,008	30	14	4,97/5,00	11,0 «/-0.1
	19	18,996/19,009	40	35	5,97/6,00	15,5 +0/-0.2
	30	19,987/30,000	50	-


	PAGE SIZE	L
	PM63435	133 5
	PM63433	139 5
	PM63440	147 5
	PM63465	173 5
	PM63490	197 5
	PM634115	333,5
	BRUSH DETAILS
	SIZE	PELE
	l/3"xl/4"	4

FEET


	IEC	A	AA	B	BB	C	03	H
	63	100	137	80	108	40	7	63
	71	113	137	90	108	45	7	71

NEN STANDARD SHAFT 030 MAXIMUM EXTENSIEN TE SUIT GUSTEMER

03

a) S o el's a.

"3

o

The rating table assumes 24 V DC supply, for other voltage ranges please contact our sales team.

Basic design
