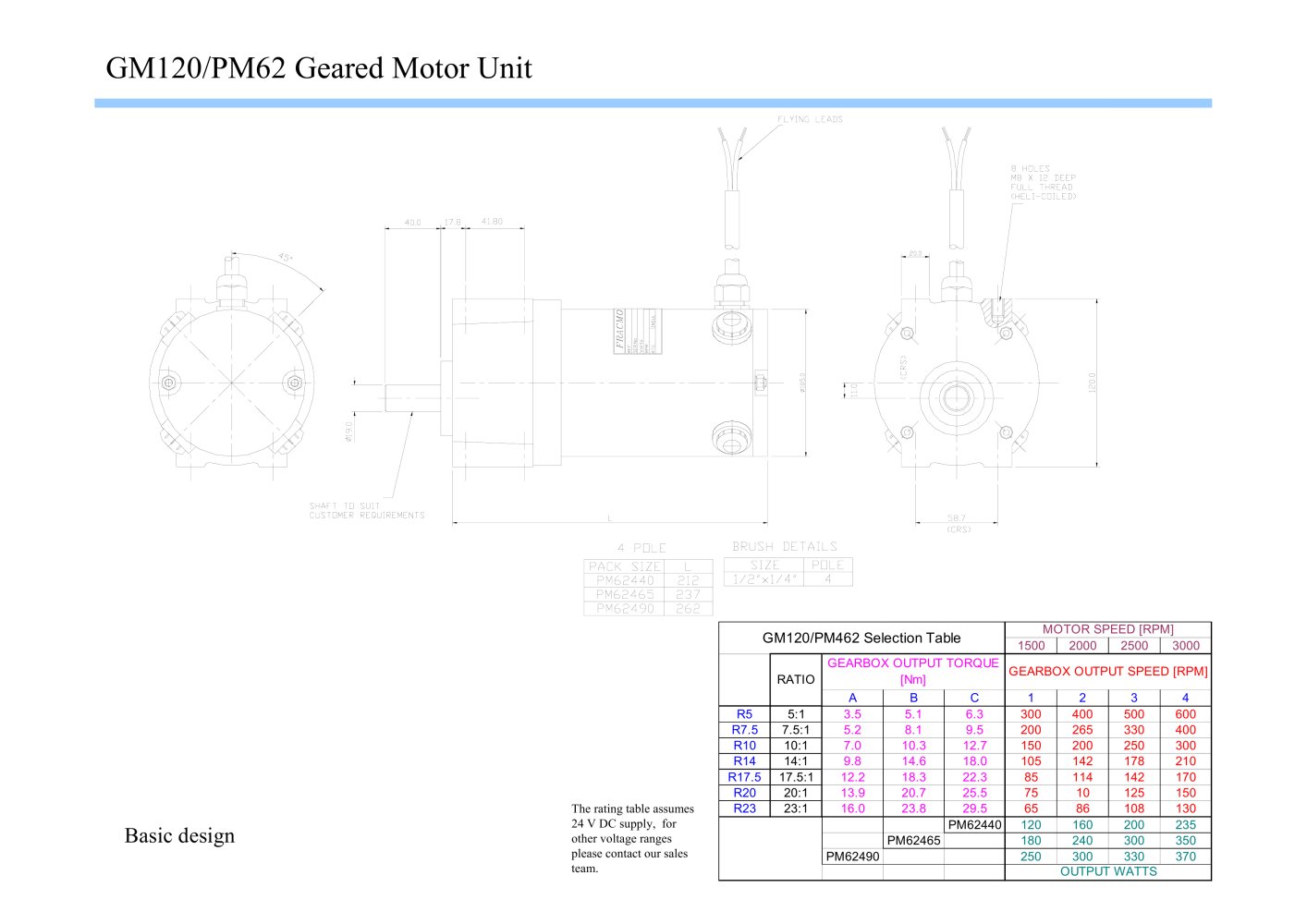

GM120/PM62 Geared Motor Unit
FLYING LEADS
8 HULLS
M8 X 12 DEEP
FULL THREAD
(HELI-CDILED)
SHAFT TFJ SUIT CUSTOMER REQUIREMENT
BRUSH DETAILS
4 PELE
SIZE
PELE
l/2"xl/4"
4
PACK SIZE
L
PM62440
212
PM6P465
237
PM62490
262
GM120/PM462 Selection Table
MOTOR SPEED [RPM]
1500
2000
2500
3000
RATIO
GEARBOX OUTPUT TORQUE [Nm]
GEARBOX OUTPUT SPEED [RPM]
A
B
C
1
2
3
4
R5
5:1
3.5
5.1
6.3
300
400
500
600
R7.5
7.5:1
5.2
8.1
9.5
200
265
330
400
R10
10:1
7.0
10.3
12.7
150
200
250
300
R14
14:1
9.8
14.6
18.0
105
142
178
210
R17.5
17.5:1
12.2
18.3
22.3
85
114
142
170
R20
20:1
13.9
20.7
25.5
75
10
125
150
R23
23:1
16.0
23.8
29.5
65
86
108
130
1 PM62440
120
160
200
235
PM62465
180
240
300
350
PM62490
250
300
330
370
OUTPUT WATTS
The rating table assumes 24 V DC supply, for
other voltage ranges please contact our sales team.
Basic design
