ISS.	DATE	MOD No.	D'MAN	NOTES
1	13/06/03	DRAWN	PNJ	-
2	20/09/04	10129	PNJ	HARNESS DETAILS ADDED
3	07/11/05	10953	DVZ	CUSTOMER REQUESTED MODIFICATIONS
4	23/12/05	11042	PNJ	TIE ROD NUTS ADDED.

^{N G}

⁵

⁴

/// o o

NOTES: WITH BROWN LEAD CONNECT TO POSITIVE WITH BLUE LEAD CONNECT TO NEGATIVE

SHAFT TO ROTATE CLOCKWISE WHEN VIEWED FROM ARROW ^

140.5

SECTION A-A SHOWING KEYWAY

IF IN DOUBT ASK-DO NOT SCALE-ALL DIMENSIONS IN mm

FRACTIONAL HP MOTORS LTD CAERNARFON ROAD BANGOR, GWYNEDD, LL57 4SP TEL. 01248 370370 EMAIL: ENGINEERING@DFM-LTD.CO.UK

2 x M5 NUT, ONE PER STUD IN THIS POSITION. STUDLOCKED WITH BLUE LOCTITE THREAD LOCKER.

ENSURE NUT IS FITTED AS FAR AS POSSIBLE DOWN ALONG THE STUD'S THREAD.

TOLERANCES

(UNLESS OTHERWISE STATED)

THE INFORMATION CONTAINED INTHIS DRAWING IS THE PROPERTY OF FRACTIONAL HP

MOTORS AND ITS CONTENTS ARE NOT

TO BE DISCLOSED

TO A THI RD PARTY

WITHOUT AUTHORITY

1:1

SCALE

DIMENSION

TOLERANCE

TITLE

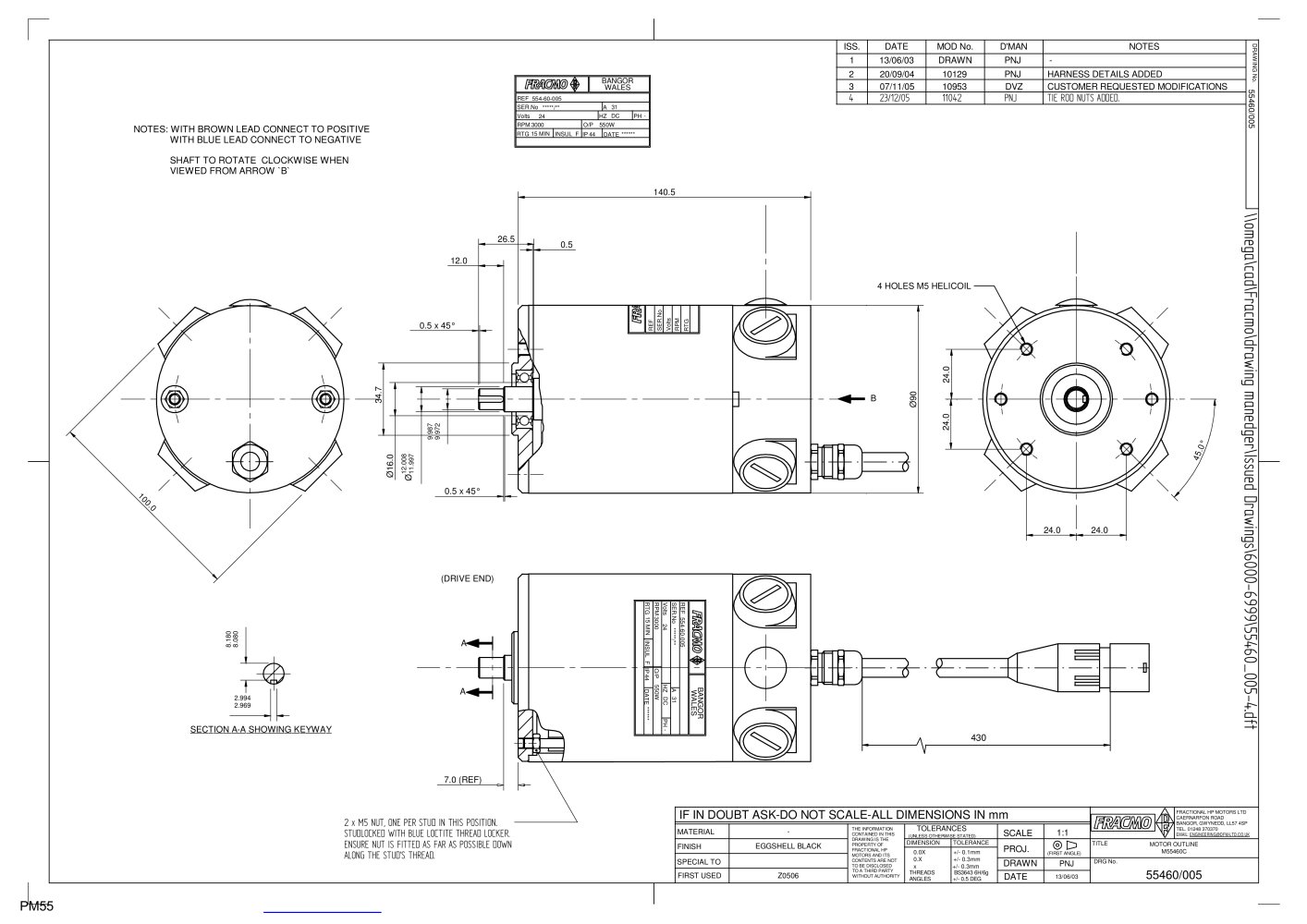

MOTOR OUTLINE M55460C

PROJ.

0.0X 0.X

THREADS ANGLES

+/- 0.1mm +/- 0.3mm +/- 0.3mm BS3643 6H/6g +/- 0.5 DEG

(FIRST ANGLE)

DRG No.

DRAWN

PNJ

55460/005

DATE

13/06/03

PM55
