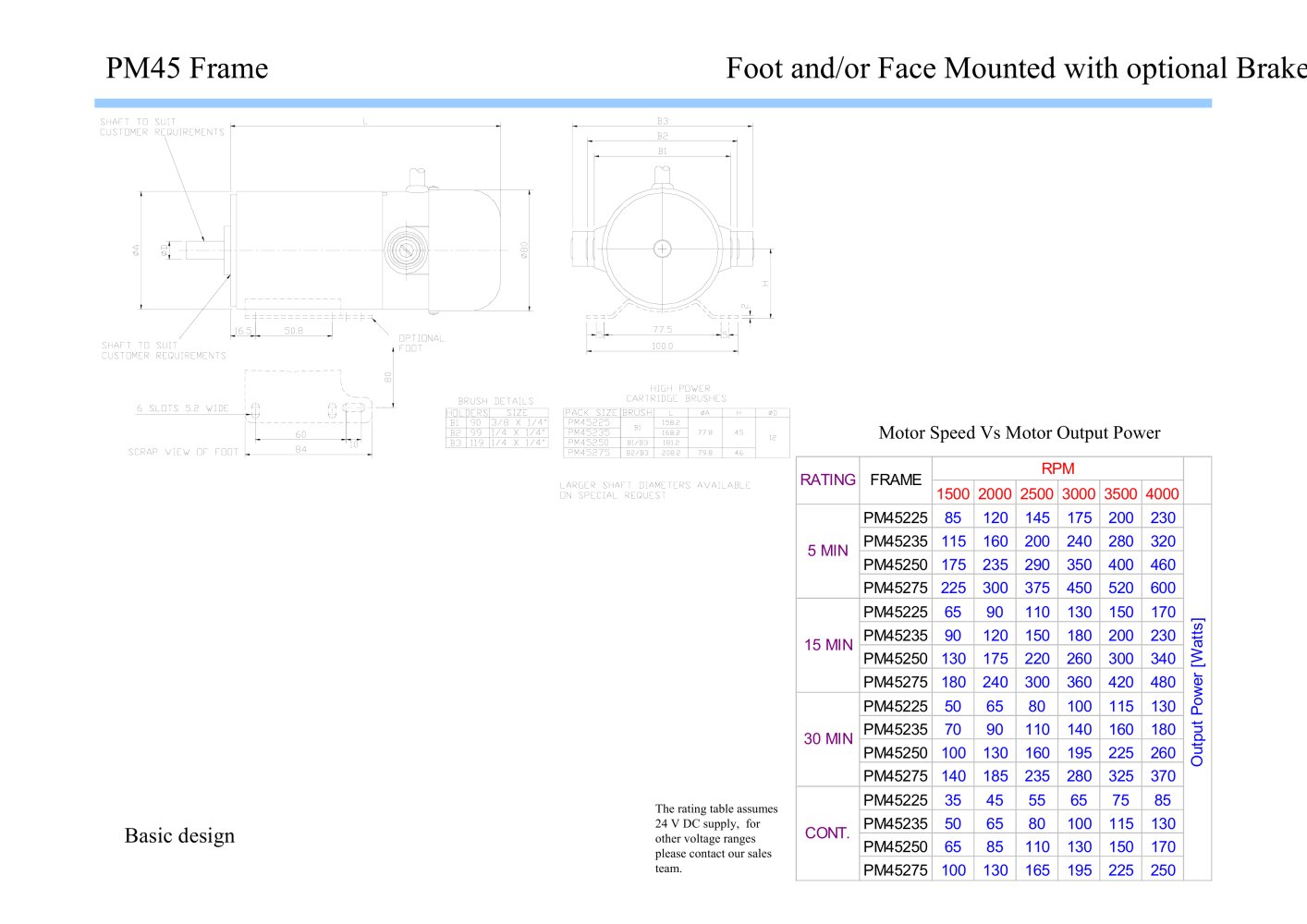

| | | Foot and/or Face Mounted with optional Brake | |
| | | PM45 Frame | | |
| | | |
| | | |
| | | SHAFT TD SUIT CUSTOMER REQUIREMENT | | |
| | | |
| | | OPTIONAL i FDDT | | |
| | | SHAFT TD SUIT CUSTOMER REQUIREMENTS | | |
| | | |
| | | |
| | | HIGH POWER CARTRIDGE BRUSHES | | |
| | | BRUSH DETAILS | | |
| | | |
| | | |
| | | SLUTS 5,2 WIDE | | |
| | | | | | | | | | | HEILDERS | SIZE | | | | Bl | 90 | 3/8 X 1/4' | | | | B2 | 99 | 1/4 X 1/4" | | | | B3 | 119 | 1/4 X 1/4" | | | | | | | | | | | | | | | | | | | | | PACK SIZE | BRUSH | L | 0A | H | 0D | | | | PM45225 | Bl | 158.e | | | | | | | PM45235 | | 168.e | 77.8 | 45 | 12 | | | | PM45250 | B1/B3 | 181.2 | | | | | | PM45275 | B2/B3 | 208.2 | 79.8 | 46 | | | | | | | | | | | | | | |
| | | |
| | | Motor Speed Vs Motor Output Power | | |
| | | |
| | | |
| | | SCRAP VIEW OF FDDT | | |
| | | |
| | | | | | | | | | | | | | | | | RATING | FRAME | RPM | | | | | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | | | | | | PM45225 | 85 | 120 | 145 | 175 | 200 | 230 | | | | | 5 MIN | PM45235 | 115 | 160 | 200 | 240 | 280 | 320 | | | | | PM45250 | 175 | 235 | 290 | 350 | 400 | 460 | | | | | | PM45275 | 225 | 300 | 375 | 450 | 520 | 600 | | | | | | PM45225 | 65 | 90 | 110 | 130 | 150 | 170 | [Watts] | | | | 15 MIN | PM45235 | 90 | 120 | 150 | 180 | 200 | 230 | | | | PM45250 | 130 | 175 | 220 | 260 | 300 | 340 | | | | | PM45275 | 180 | 240 | 300 | 360 | 420 | 480 | Power | | | | | PM45225 | 50 | 65 | 80 | 100 | 115 | 130 | | | | 30 MIN | PM45235 | 70 | 90 | 110 | 140 | 160 | 180 | Output | | | | PM45250 | 100 | 130 | 160 | 195 | 225 | 260 | | | | | PM45275 | 140 | 185 | 235 | 280 | 325 | 370 | | | | | PM45225 | 35 | 45 | 55 | 65 | 75 | 85 | | | | | CONT. | PM45235 | 50 | 65 | 80 | 100 | 115 | 130 | | | | | PM45250 | 65 | 85 | 110 | 130 | 150 | 170 | | | | | | PM45275 | 100 | 130 | 165 | 195 | 225 | 250 | | | | | | | | | | | | | | | | | |
| | | |
| | | LARGER SHAFT DIAMETERS UN SPECIAL REQUEST | | |
| | | |
| | | The rating table assumes 24 V DC supply, for other voltage ranges please contact our sales team. | | |
| | | Basic design | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
