PM
Motor Range ● Output Torque Range: 0.1 to 2 Nm. ● Continuous Output Power Range: 50 to 500 Watts. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Speed Range 1000 to 4500 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44.
Performance Features
PM36
Design FeaturesPM45 PM36-IMS

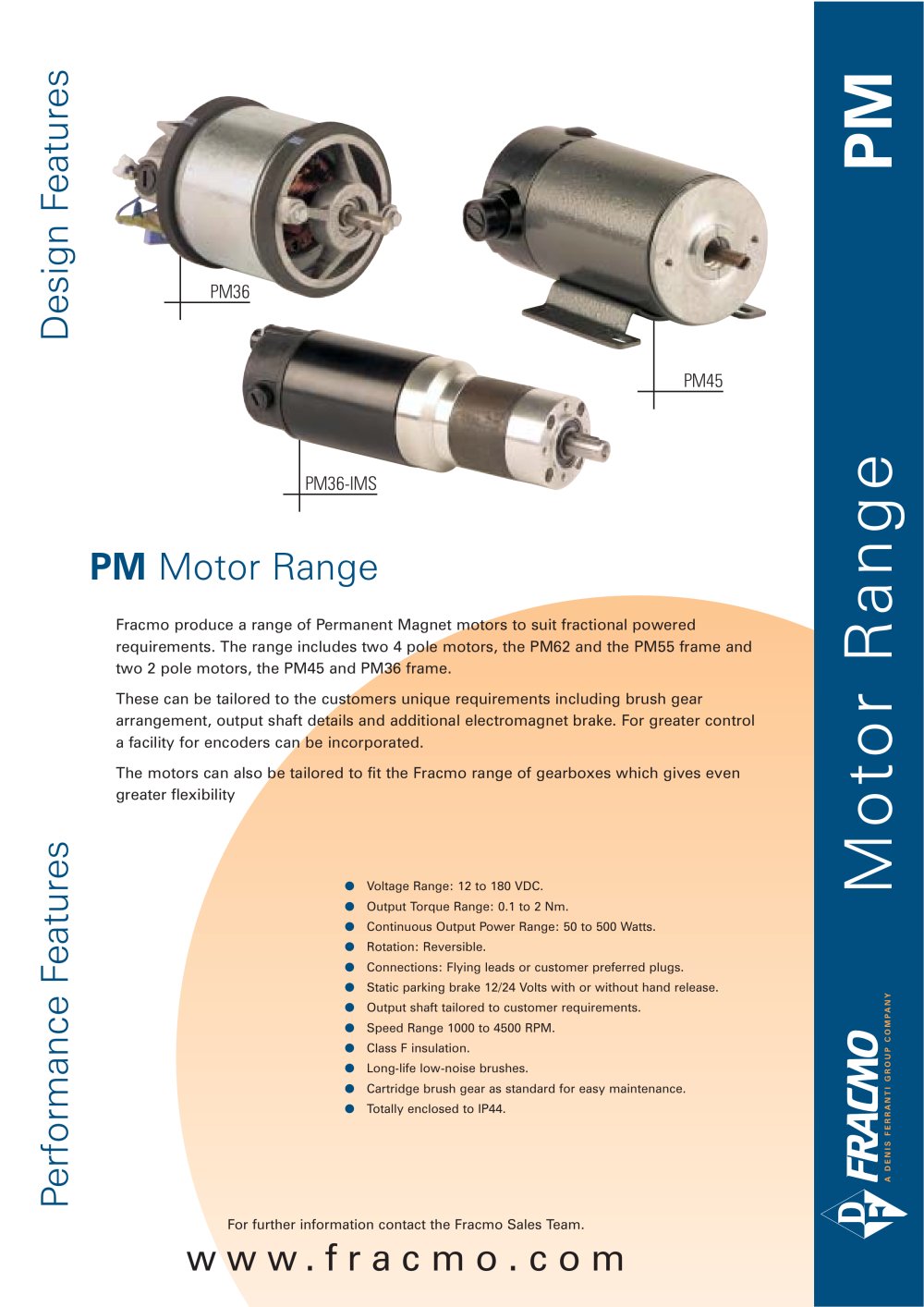

Fracmo DC Motors - 39638 PM Motor Range
Fracmo produce a range of Permanent Magnet motors to suit fractional poweredrequirements. The range includes two 4 pole motors, the PM62 and the PM55 frame and two 2 pole motors, the PM45 and PM36 frame. These can be tailored to the customers unique requirements including brush geararrangement, output shaft details and additional electromagnet brake. For greater control a facility for encoders can be incorporated.The motors can also be tailored to fit the Fracmo range of gearboxes which gives evengreater flexibility
● Voltage Range: 12 to 180 VDC.Motor Range ● Output Torque Range: 0.1 to 2 Nm. ● Continuous Output Power Range: 50 to 500 Watts. ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Speed Range 1000 to 4500 RPM. ● Class F insulation. ● Long-life low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44.
Performance Features
