G30PM45 Design Features
Geared Motor Unit ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 37 to 250 watts. ● Speed Range 55 to 450 RPM. ● Class F insulation. ● Long-life, low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 4 motor stack lengths.
Performance Features

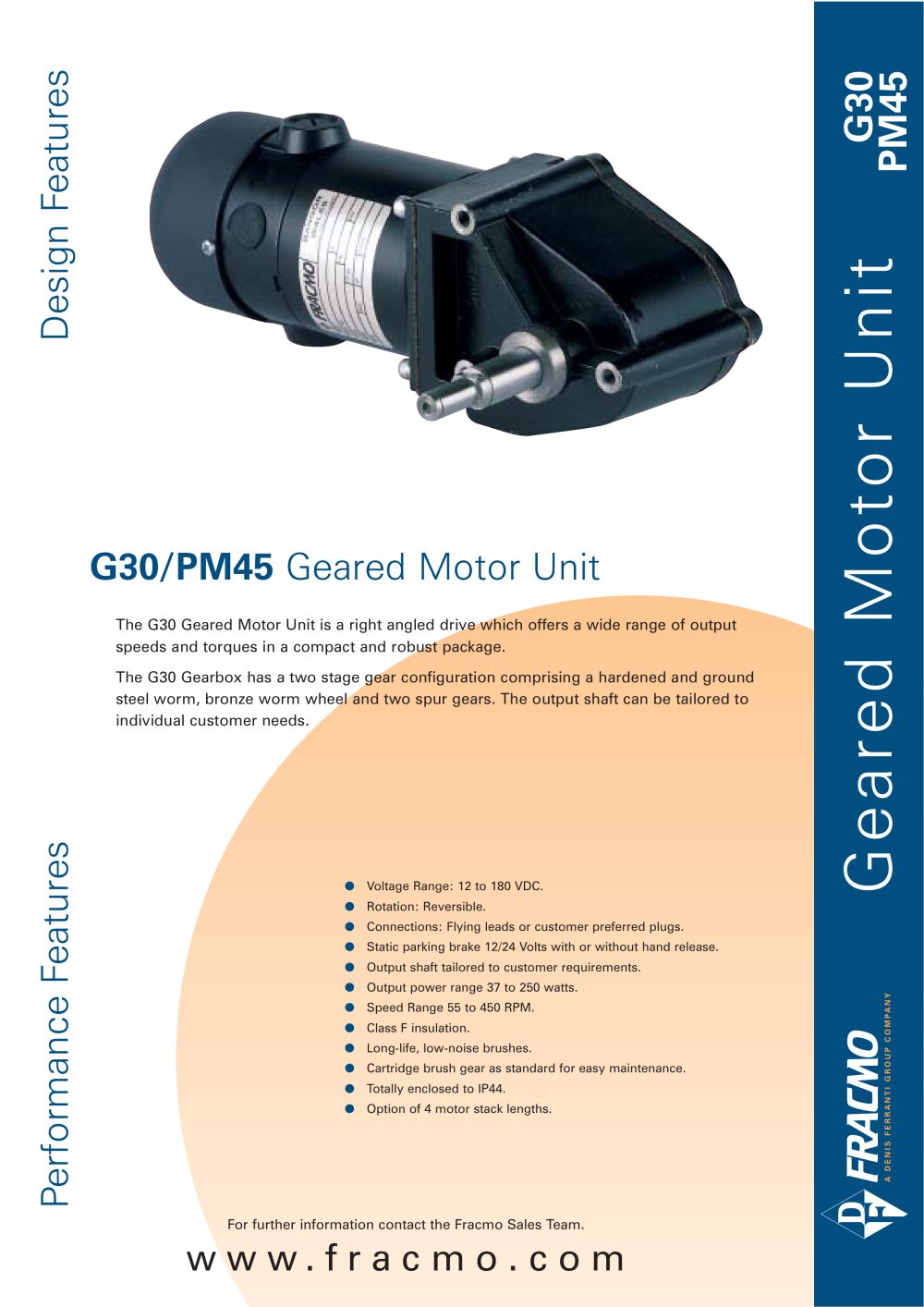

Fracmo DC gearmotors - 39638 G30/PM45 Geared Motor Unit
The G30 Geared Motor Unit is a right angled drive which offers a wide range of outputspeeds and torques in a compact and robust package.The G30 Gearbox has a two stage gear configuration comprising a hardened and groundsteel worm, bronze worm wheel and two spur gears. The output shaft can be tailored to individual customer needs.
● Voltage Range: 12 to 180 VDC.Geared Motor Unit ● Rotation: Reversible. ● Connections: Flying leads or customer preferred plugs. ● Static parking brake 12/24 Volts with or without hand release. ● Output shaft tailored to customer requirements. ● Output power range 37 to 250 watts. ● Speed Range 55 to 450 RPM. ● Class F insulation. ● Long-life, low-noise brushes. ● Cartridge brush gear as standard for easy maintenance. ● Totally enclosed to IP44. ● Option of 4 motor stack lengths.
Performance Features
