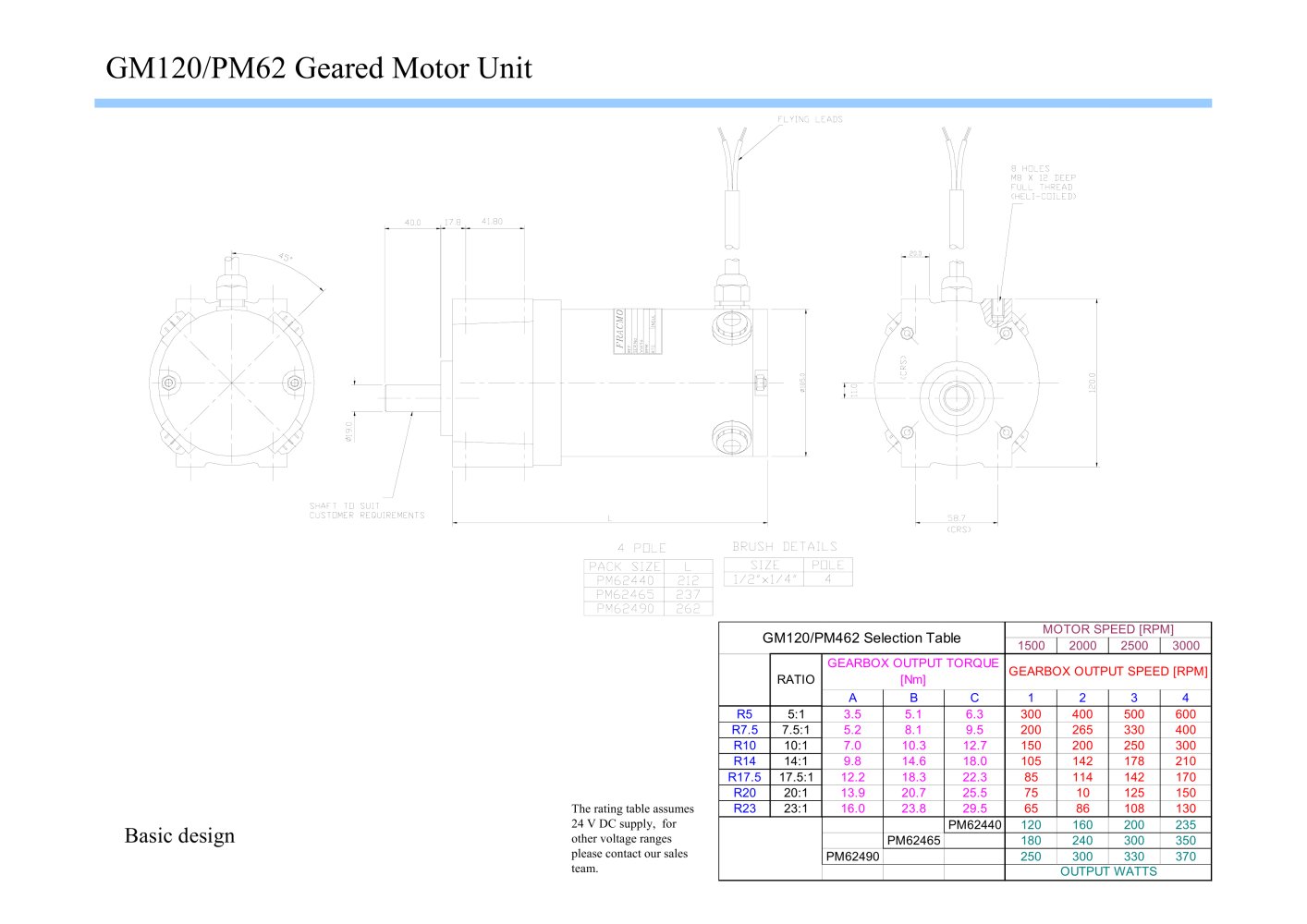

GM120/PM62 Geared Motor Unit

FLYING LEADS

8 HULLS

M8 X 12 DEEP

FULL THREAD

(HELI-CDILED)

SHAFT TD SUIT CUSTDMER REQUIREMENT

BRUSH DETAILS

4 PELE


	SIZE	PELE
	l/2"xl/4"	4


	PACK SIZE	L
	PM62440	212
	PM6P465	237
	PM62490	262


	GM120/PM462 Selection Table					MOTOR SPEED [RPM]
	GM120/PM462 Selection Table					1500	2000	2500	3000
		RATIO	GEARBOX OUTPUT TORQUE [Nm]			GEARBOX OUTPUT SPEED [RPM]
			A	B	C	1	2	3	4
	R5	5:1	3.5	5.1	6.3	300	400	500	600
	R7.5	7.5:1	5.2	8.1	9.5	200	265	330	400
	R10	10:1	7.0	10.3	12.7	150	200	250	300
	R14	14:1	9.8	14.6	18.0	105	142	178	210
	R17.5	17.5:1	12.2	18.3	22.3	85	114	142	170
	R20	20:1	13.9	20.7	25.5	75	10	125	150
	R23	23:1	16.0	23.8	29.5	65	86	108	130
				1 PM62440		120	160	200	235
				PM62465		180	240	300	350
			PM62490			250	300	330	370
						OUTPUT WATTS

The rating table assumes 24 V DC supply, for

other voltage ranges please contact our sales team.

Basic design
