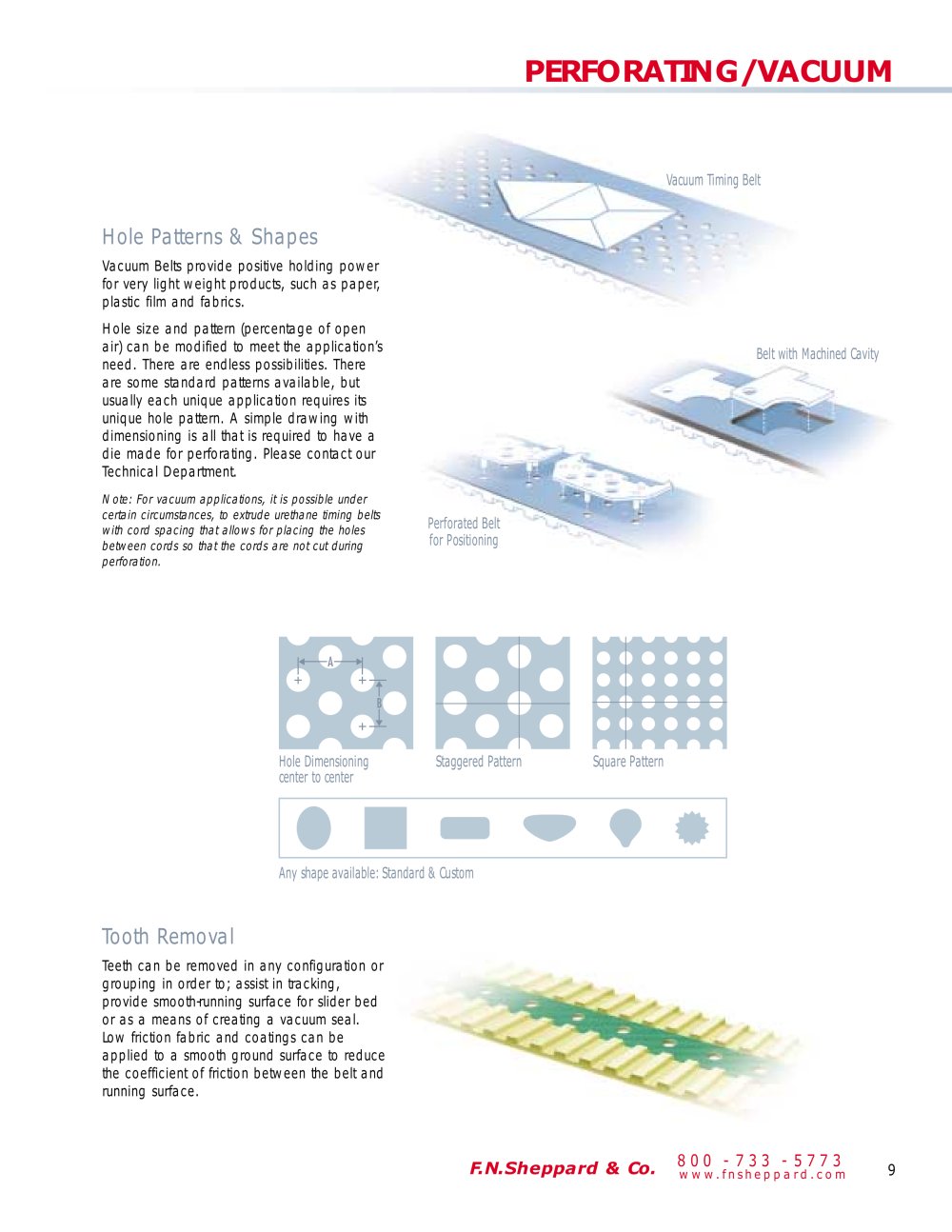

F.N.Sheppard & Co. 8w0w0w. f-n 7sh3e3pp -a r5d7.c7o3m 9 Tooth Removal Teeth can be removed in any configuration or grouping in order to; assist in tracking, provide smooth-running surface for slider bed or as a means of creating a vacuum seal. Low friction fabric and coatings can be applied to a smooth ground surface to reduce the coefficient of friction between the belt and running surface. Hole Dimensioning center to center Staggered Pattern Square Pattern Any shape available: Standard & Custom Belt with Machined Cavity Perforated Belt for Positioning PERFORATING/VACUUM Vacuum Timing Belt Hole Patterns & Shapes Vacuum Belts provide positive holding power for very light weight products, such as paper, plastic film and fabrics. Hole size and pattern (percentage of open air) can be modified to meet the application’s need. There are endless possibilities. There are some standard patterns available, but usually each unique application requires its unique hole pattern. A simple drawing with dimensioning is all that is required to have a die made for perforating. Please contact our Technical Department. Note: For vacuum applications, it is possible under certain circumstances, to extrude urethane timing belts with cord spacing that allows for placing the holes between cords so that the cords are not cut during perforation.
