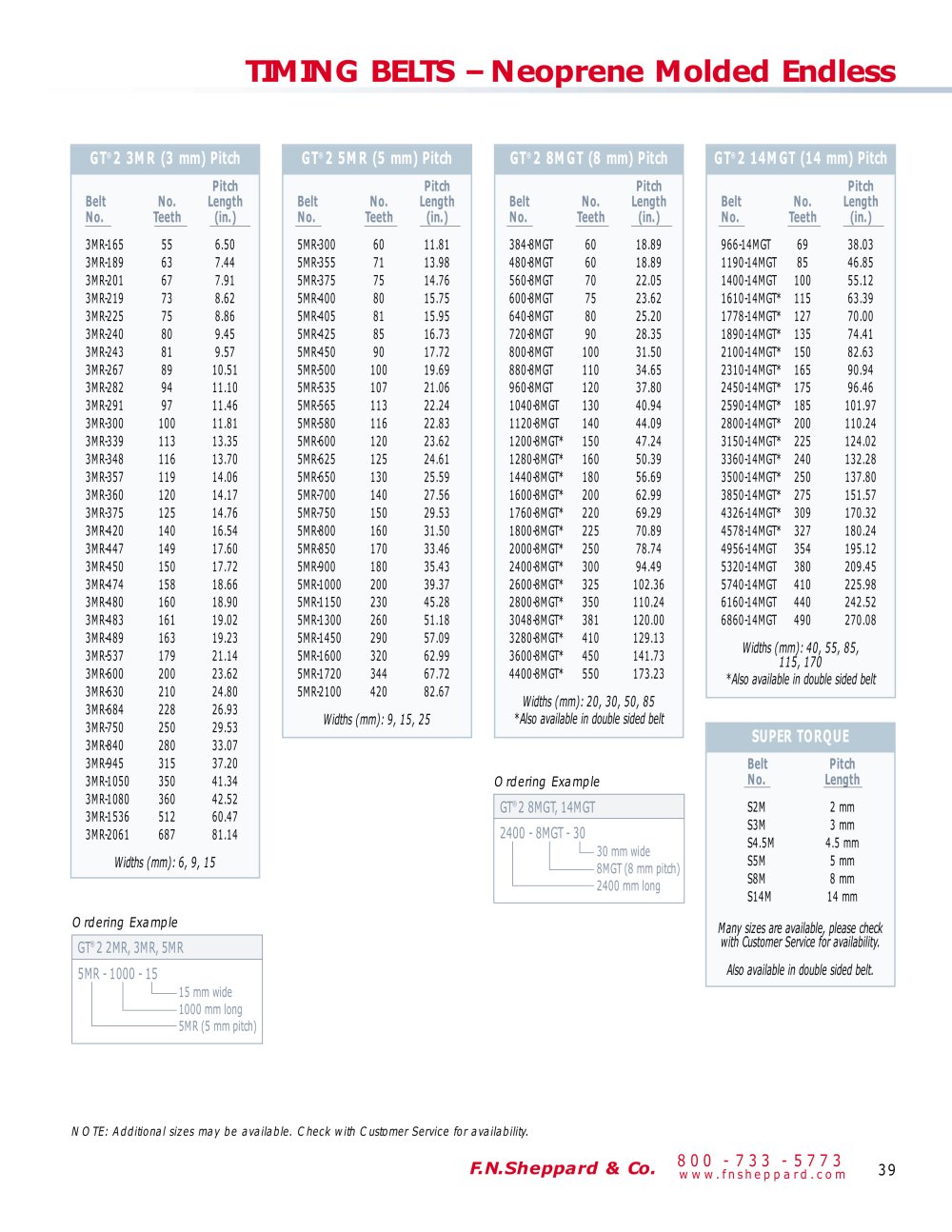

NOTE: Additional sizes may be available. Check with Customer Service for availability. GT®2 3MR (3 mm) Pitch Pitch Belt No. Length No. Teeth (in.) 3MR-165 55 6.50 3MR-189 63 7.44 3MR-201 67 7.91 3MR-219 73 8.62 3MR-225 75 8.86 3MR-240 80 9.45 3MR-243 81 9.57 3MR-267 89 10.51 3MR-282 94 11.10 3MR-291 97 11.46 3MR-300 100 11.81 3MR-339 113 13.35 3MR-348 116 13.70 3MR-357 119 14.06 3MR-360 120 14.17 3MR-375 125 14.76 3MR-420 140 16.54 3MR-447 149 17.60 3MR-450 150 17.72 3MR-474 158 18.66 3MR-480 160 18.90 3MR-483 161 19.02 3MR-489 163 19.23 3MR-537 179 21.14 3MR-600 200 23.62 3MR-630 210 24.80 3MR-684 228 26.93 3MR-750 250 29.53 3MR-840 280 33.07 3MR-945 315 37.20 3MR-1050 350 41.34 3MR-1080 360 42.52 3MR-1536 512 60.47 3MR-2061 687 81.14 Widths (mm): 6, 9, 15 GT®2 5MR (5 mm) Pitch Pitch Belt No. Length No. Teeth (in.) 5MR-300 60 11.81 5MR-355 71 13.98 5MR-375 75 14.76 5MR-400 80 15.75 5MR-405 81 15.95 5MR-425 85 16.73 5MR-450 90 17.72 5MR-500 100 19.69 5MR-535 107 21.06 5MR-565 113 22.24 5MR-580 116 22.83 5MR-600 120 23.62 5MR-625 125 24.61 5MR-650 130 25.59 5MR-700 140 27.56 5MR-750 150 29.53 5MR-800 160 31.50 5MR-850 170 33.46 5MR-900 180 35.43 5MR-1000 200 39.37 5MR-1150 230 45.28 5MR-1300 260 51.18 5MR-1450 290 57.09 5MR-1600 320 62.99 5MR-1720 344 67.72 5MR-2100 420 82.67 Widths (mm): 9, 15, 25 GT®2 8MGT (8 mm) Pitch Pitch Belt No. Length No. Teeth (in.) 384-8MGT 60 18.89 480-8MGT 60 18.89 560-8MGT 70 22.05 600-8MGT 75 23.62 640-8MGT 80 25.20 720-8MGT 90 28.35 800-8MGT 100 31.50 880-8MGT 110 34.65 960-8MGT 120 37.80 1040-8MGT 130 40.94 1120-8MGT 140 44.09 1200-8MGT* 150 47.24 1280-8MGT* 160 50.39 1440-8MGT* 180 56.69 1600-8MGT* 200 62.99 1760-8MGT* 220 69.29 1800-8MGT* 225 70.89 2000-8MGT* 250 78.74 2400-8MGT* 300 94.49 2600-8MGT* 325 102.36 2800-8MGT* 350 110.24 3048-8MGT* 381 120.00 3280-8MGT* 410 129.13 3600-8MGT* 450 141.73 4400-8MGT* 550 173.23 Widths (mm): 20, 30, 50, 85 *Also available in double sided belt GT®2 14MGT (14 mm) Pitch Pitch Belt No. Length No. Teeth (in.) 966-14MGT 69 38.03 1190-14MGT 85 46.85 1400-14MGT 100 55.12 1610-14MGT* 115 63.39 1778-14MGT* 127 70.00 1890-14MGT* 135 74.41 2100-14MGT* 150 82.63 2310-14MGT* 165 90.94 2450-14MGT* 175 96.46 2590-14MGT* 185 101.97 2800-14MGT* 200 110.24 3150-14MGT* 225 124.02 3360-14MGT* 240 132.28 3500-14MGT* 250 137.80 3850-14MGT* 275 151.57 4326-14MGT* 309 170.32 4578-14MGT* 327 180.24 4956-14MGT 354 195.12 5320-14MGT 380 209.45 5740-14MGT 410 225.98 6160-14MGT 440 242.52 6860-14MGT 490 270.08 Widths (mm): 40, 55, 85, 115, 170 *Also available in double sided belt TIMING BELTS – Neoprene Molded Endless F.N.Sheppard & Co. 8w0w0w. f-n 7sh3e3pp -a r5d7.c7o3m 39 SUPER TORQUE Belt Pitch No. Length S2M 2 mm S3M 3 mm S4.5M 4.5 mm S5M 5 mm S8M 8 mm S14M 14 mm Many sizes are available, please check with Customer Service for availability. Also available in double sided belt. GT®2 2MR, 3MR, 5MR 5MR - 1000 - 15 15 mm wide 1000 mm long 5MR (5 mm pitch) Ordering Example GT®2 8MGT, 14MGT 2400 - 8MGT - 30 30 mm wide 8MGT (8 mm pitch) 2400 mm long Ordering Example
