FLUKI

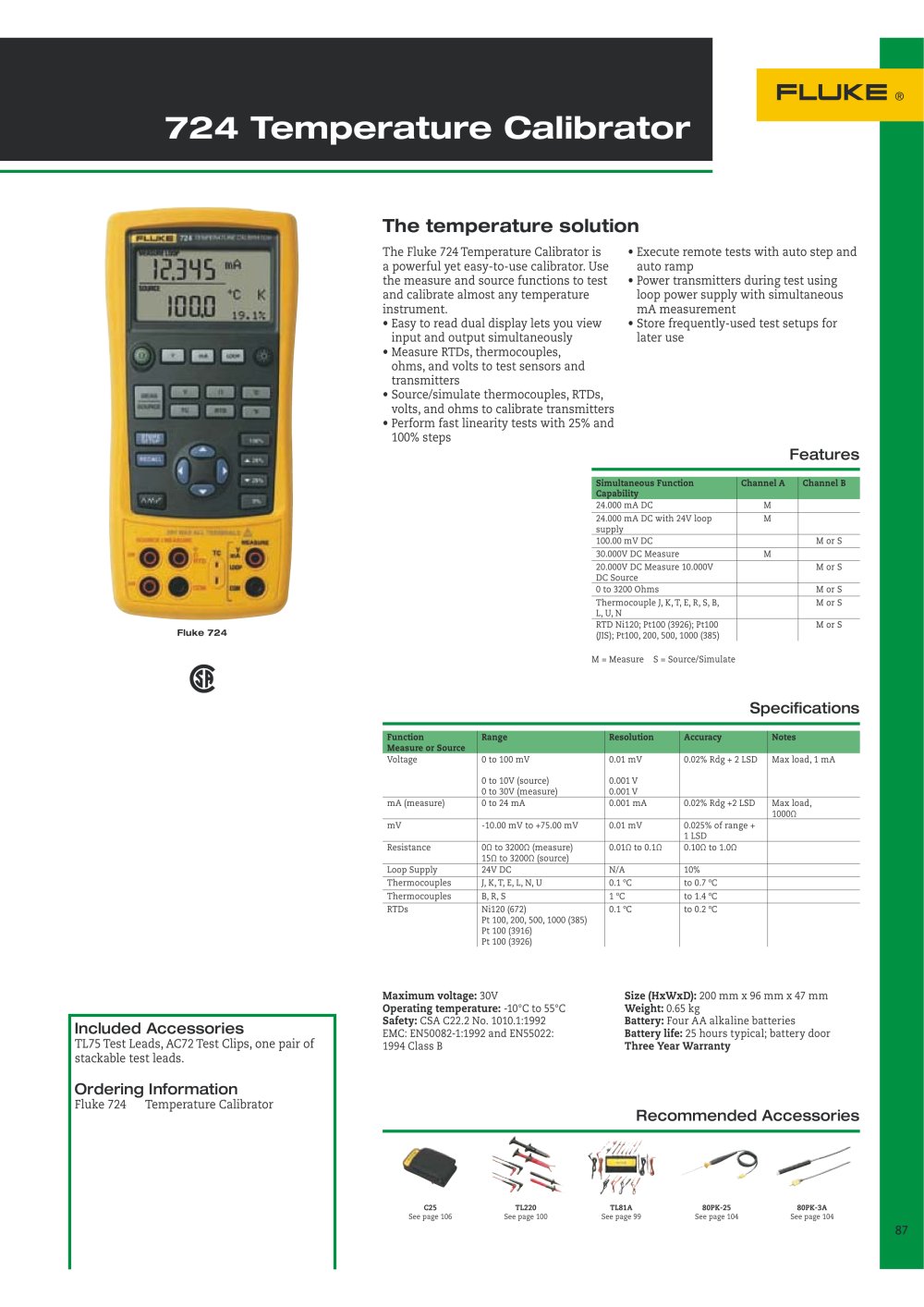

724 Température Calibrator

The température solution

The Fluke 724 Température Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.

• Easy to read dual display lets you view input and output simultaneously

• Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters

• Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters

• Perform fast linearity tests with 25% and 100% steps

• Execute remote tests with auto step and auto ramp

• Power transmitters during test using loop power supply with simultaneous mA measurement

• Store frequently-used test setups for later use

Features


Simultaneous Function Capability	Channel A	Channel B
24.000 mA DC	M
24.000 mA DC with 24V loop supply	M
100.00 mV DC		M or S
30.000V DC Measure	M
20.000V DC Measure 10.000V DC Source		M or S
0 to 3200 Ohms		M or S
Thermocouple J, K, T, E, R, S, B, L, U, N		M or S
RTD Ni120; Pt100 (3926); Pt100 (JIS); Pt100, 200, 500, 1000 (385)		M or S

Fluke 724

M = Measure S = Source/Simulate

Spécifications


Function Measure or Source	Range	Resolution	Accuracy	Notes
Voltage	0 to 100 mV 0 to 10V (source) 0 to 30V (measure)	0.01 mV 0.001 V 0.001 V	0.02% Rdg + 2 LSD	Max load, 1 mA
mA (measure)	0 to 24 mA	0.001 mA	0.02% Rdg +2 LSD	Max load, 10000
mV	-10.00 mV to +75.00 mV	0.01 mV	0.025% of range + 1 LSD
Resistance	00 to 32000 (measure) 150 to 32000 (source)	0.010 to 0.10	0.100 to 1.00
Loop Supply	24V DC	N/A	10%
Thermocouples	J, K, T, E, L, N, U	0.1 °C	to 0.7 °C
Thermocouples	B, R, S	1 °C	to 1.4 °C
RTDs	Ni120 (672) Pt 100, 200, 500, 1000 (385) Pt 100 (3916) Pt 100 (3926)	0.1 °C	to 0.2 °C

Included Accessories

TL75 Test Leads, AC72 Test Clips, one pair of stackable test leads.

Ordering Information

Fluke 724 Temperature Calibrator

Maximum voltage: 30V

Operating temperature: -10°C to 55°C

Safety: CSA C22.2 No. 1010.1:1992 EMC: EN50082-1:1992 and EN55022: 1994 Class B

Size (HxWxD): 200 mm x 96 mm x 47 mm Weight: 0.65 kg

Battery: Four AA alkaline batteries Battery life: 25 hours typical; battery door Three Year Warranty

Recommended Accessories

-^9

C25

See page 106

TL220

See page 100

TL81A

See page 99

80PK-25

See page 104

80PK-3A

See page 104
