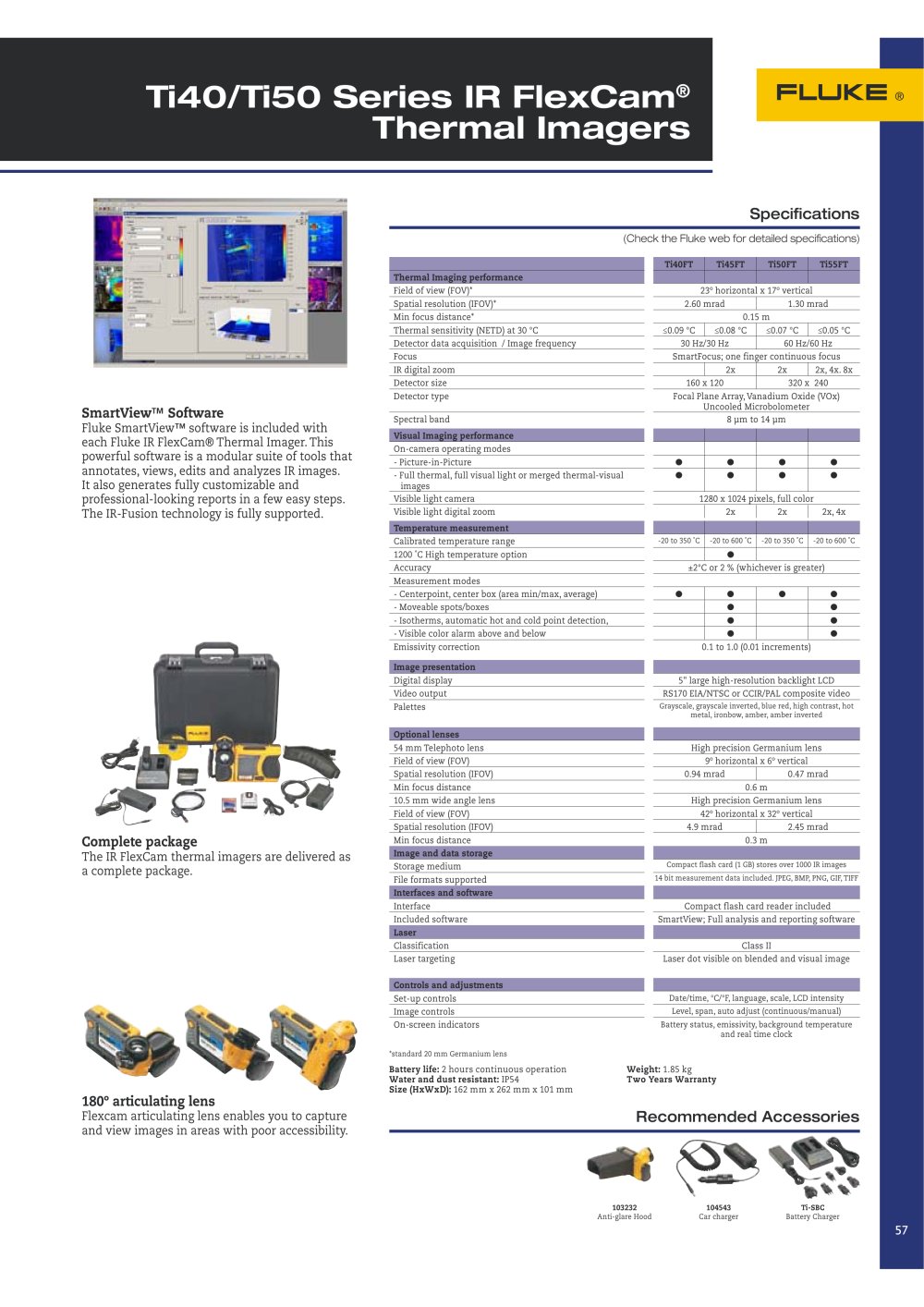

TI40/TI50 Séries IR FlexCam®

Thermal Imagers

FLUKI

Spécifications

(Check the Fluke web for detailed spécifications)

Thermal Imaging performance


Ti40FT	Ti45FT	Ti50FT	Ti55FT
1 1 1

Field of view (FOV)*

23° horizontal x 17° vertical


Spatial resolution (IFOV)*	2.60 mrad	1.30 mrad
Min focus distance*	0.15 m
Thermal sensitivity (NETD) at 30 °C	<0.09 °C \| <0.08 °C	<0.07 °C \| <0.05 °C
Detector data acquisition / Image frequency	30 Hz/30 Hz	60 Hz/60 Hz
Focus	SmartFocus; one finger continuous focus
IR digital zoom	1 2x	2x \| 2x, 4x. 8x
Detector size	160x120	320 x 240

SmartView™ Software

Fluke SmartView™ software is included with each Fluke IR FlexCam® Thermal Imager. This powerful software is a modular suite of tools that annotates, views, edits and analyzes IR images. It also generates fully customizable and professional-looking reports in a few easy steps. The IR-Fusion technology is fully supported.

Detector type

Focal Plane Array, Vanadium Oxide (VOx)

_Uncooled Microbolometer_

8 pm to 14 pm

Spectral band


Visual Imaging performance
On-camera operating modes
- Picture-in-Picture	•	•	•	•
- Full thermal, full visual light or merged thermal-visual images	•	•	•	•
Visible light camera	1280 x 1024 pixels, full color
Visible light digital zoom		2x	2x
Temperature measurement
Calibrated temperature range	-20 to 350 °C	-20 to 600 "C	-20 to 350 "C	-20 to 600 "C
1200 °C High temperature option		•

Accuracy

±2°C or 2 % (whichever is greater)

Measurement modes

- Centerpoint, center box (area min/max, average)

- Moveable spots/boxes

•___•_

- Isotherms, automatic hot and cold point detection,

- Visible color alarm above and below

•___•_

Emissivity correction

0.1 to 1.0 (0.01 increments)

Digital display

_5" large high-resolution backlight LCD_

RS170 EIA/NTSC or CCIR/PAL composite video

Grayscale, grayscale inverted, blue red, high contrast, hot metal, ironbow, amber, amber inverted

Video output

Palettes

Optional lenses

High precision Germanium lens 9° horizontal x 6° vertical

54 mm Telephoto lens

Field of view (FOV)

Spatial resolution (IFOV)

0.94 mrad

0.47 mrad

Min focus distance

0.6 m

10.5 mm wide angle lens

High precision Germanium lens 42° horizontal x 32° vertical

Field of view (FOV)

Spatial resolution (IFOV)

4.9 mrad

2.45 mrad

Complete package

The IR FlexCam thermal imagers are delivered as a complete package.

Min focus distance

Image and data storage

0.3 m

Storage medium

Compact flash card (1 GB) stores over 1000 IR images 14 bit measurement data included. JPEG, BMP, PNG, GIF, TIFF

File formats supported

Interfaces and software

Interface

Compact flash card reader included SmartView; Full analysis and reporting software

_Class II_

Laser dot visible on blended and visual image

Included software

Laser

Classification

Laser targeting

Controls and adjustments

Set-up controls

Date/time, °C/°F, language, scale, LCD intensity Level, span, auto adjust (continuous/manual) Battery status, emissivity, background temperature

Image controls

On-screen indicators

*standard 20 mm Germanium lens

Battery life: 2 hours continuous operation

Water and dust resistant: IP54

Size (HxWxD): 162 mm x 262 mm x 101 mm

and real time clock

Weight: 1.85 kg Two Years Warranty

180° articulating lens

Flexcam articulating lens enables you to capture and view images in areas with poor accessibility.

Recommended Accessories

103232

Anti-glare Hood

104543

Car charger

Ti-SBC

Battery Charger
