FLUKE

~~ Hart Scientific ®

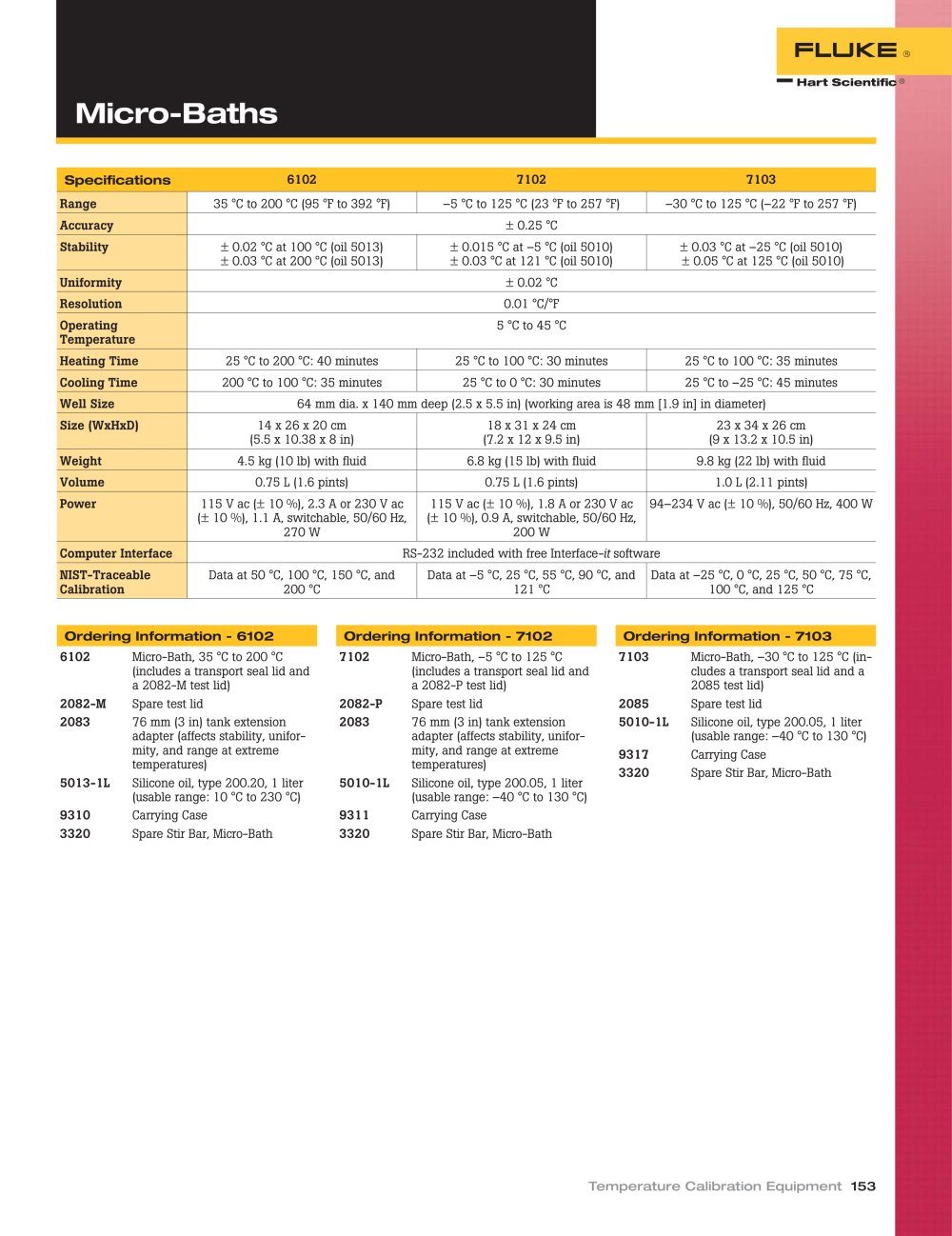

Micro-Baths


Specifications	6102	7102	7103
Range	35 °C to 200 °C (95 °F to 392 °F)	-5°Cto 125 °C (23 °F to 257 °F)	-30 °C to 125 °C (-22 °F to 257 °F)
Accuracy	±0.25°C
Stability	±0.02°Cat 100 °C (oil 5013) ±0.03°Cat 200 °C (oil 5013)	± 0.015 °C at -5 °C (oil 5010) ±0.03°Cat 121 °C (oil 5010)	±0.03°Cat -25°C(oil 5010) ±0.05°Cat 125 °C (oil 5010)
Uniformity	±0.02°C
Resolution	0.01 °C/°F
Operating Temperature	5°Cto 45°C
Heating Time	25 °C to 200 °C: 40 minutes	25°Cto 100 °C: 30 minutes	25 °C to 100 °C: 35 minutes
Cooling Time	200 °C to 100 °C: 35 minutes	25 °C to 0 °C: 30 minutes	25 °C to -25 °C: 45 minutes
Well Size	64 mm dia. x 140 mm deep (2.5 x 5.5 in) (working area is 48 mm [1.9 in] in diameter)
Size (WxHxD)	14x26x20 cm (5.5 x 10.38x8 in)	18x31 x 24 cm (7.2x12x9.5in)	23 x 34 x 26 cm (9x 13.2 x 10.5 in)
Weight	4.5 kg (10 lb) with fluid	6.8 kg (15 lb) with fluid	9.8 kg (22 lb) with fluid
Volume	0.75 L (1.6 pints)	0.75 L (1.6 pints)	1.0 L (2.11 pints)
Power	115 V ac (± 10 %), 2.3 A or 230 V ac (± 10 %), 1.1 A, switchable, 50/60 Hz, 270 W	115 V ac (± 10 %), 1.8 A or 230 V ac (± 10 %), 0.9 A, switchable, 50/60 Hz, 200 W	94-234 V ac (± 10 %), 50/60 Hz, 400 W
Computer Interface	RS-232 included with free Interface-!f software
NIST-Traceable Calibration	Data at 50 °C, 100 °C, 150 °C, and 200 °C	Data at -5 °C, 25 °C, 55 °C, 90 °C, and 121 °C	Data at -25 °C, 0 °C, 25 °C, 50 °C, 75 °C, 100 °C, and 125 °C

Ordering Information - 6102

6102 Micro-Bath, 35 °C to 200 °C

(includes a transport seal lid and a 2082-M test lid)

2082-M Spare test lid

2083 76 mm (3 in) tank extension

adapter (affects stability, uniformity, and range at extreme temperatures)

5013-1L Silicone oil, type 200.20, 1 liter (usablerange:10°Cto 230 °C)

9310 Carrying Case

3320 Spare Stir Bar, Micro-Bath

Ordering Information - 7102

7102 Micro-Bath, -5 °C to 125 °C

(includes a transport seal lid and a 2082-P test lid)

2082-P Spare test lid

2083 76 mm (3 in) tank extension

adapter (affects stability, uniformity, and range at extreme temperatures)

5010-1L Silicone oil, type 200.05, 1 liter (usable range: -40 °C to 130 °C)

9311 Carrying Case

3320 Spare Stir Bar, Micro-Bath

Ordering Information - 7103

7103 Micro-Bath, -30 °C to 125 °C (includes a transport seal lid and a 2085 test lid)

2085 Spare test lid

5010-1L Silicone oil, type 200.05, 1 liter (usable range: -40 °C to 130 °C)

9317 Carrying Case

3320 Spare Stir Bar, Micro-Bath
