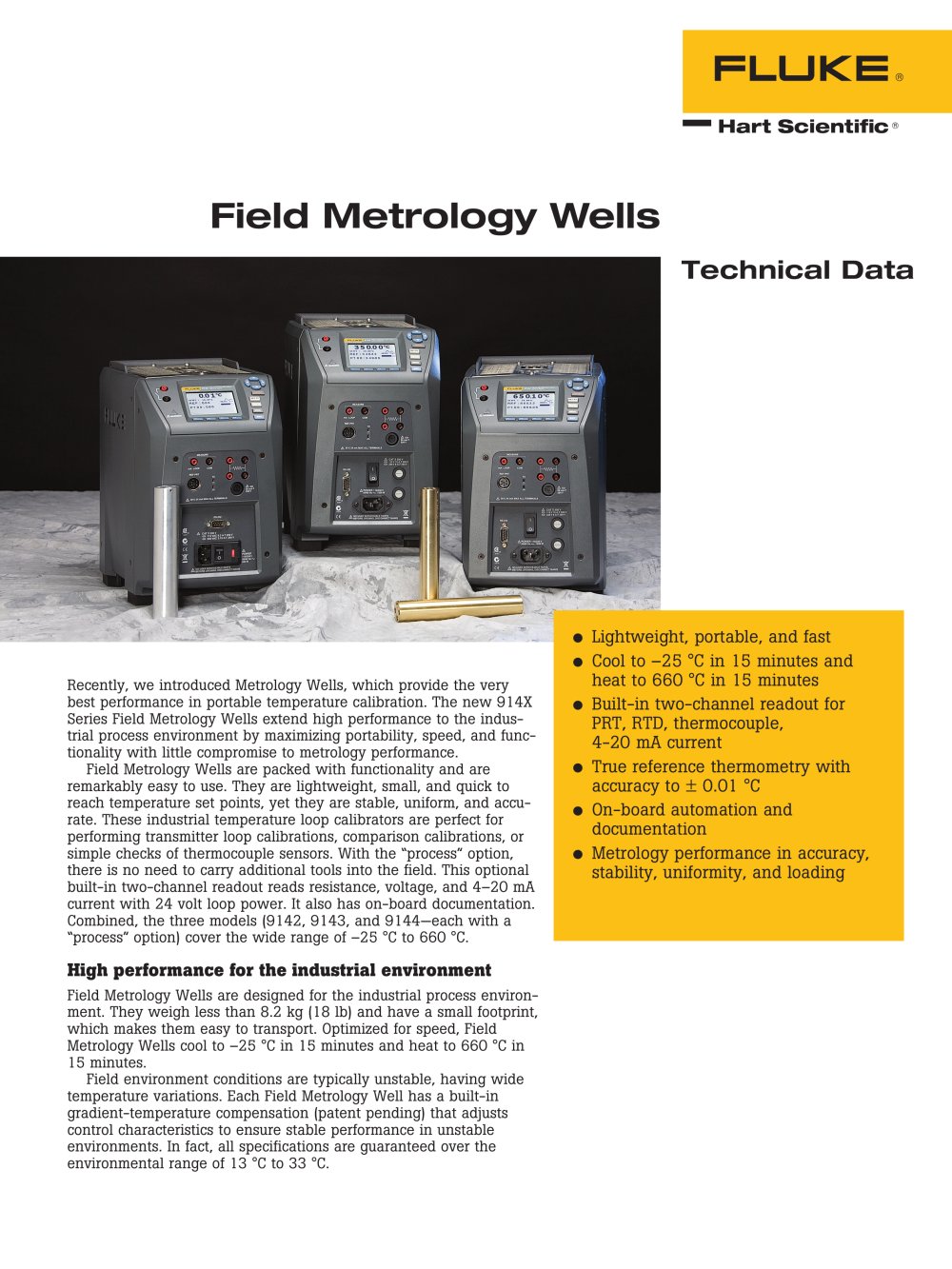

Field Metrology Wells - Fluke Calibration Instruments - Hart Scientific - #1

Text version of the page

Recently, we introduced Metrology Wells, which provide the very best performance in portable temperature calibration. The new 914X Series Field Metrology Wells extend high performance to the industrial process environment by maximizing portability, speed, and functionality with little compromise to metrology performance. Field Metrology Wells are packed with functionality and are remarkably easy to use. They are lightweight, small, and quick to reach temperature set points, yet they are stable, uniform, and accurate. These industrial temperature loop calibrators are perfect for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the “process” option, there is no need to carry additional tools into the field. This optional built-in two-channel readout reads resistance, voltage, and 4–20 mA current with 24 volt loop power. It also has on-board documentation. Combined, the three models (9142, 9143, and 9144—each with a “process” option) cover the wide range of –25 °C to 660 °C. High performance for the industrial environment Field Metrology Wells are designed for the industrial process environment. They weigh less than 8.2 kg (18 lb) and have a small footprint, which makes them easy to transport. Optimized for speed, Field Metrology Wells cool to –25 °C in 15 minutes and heat to 660 °C in 15 minutes. Field environment conditions are typically unstable, having wide temperature variations. Each Field Metrology Well has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments. In fact, all specifications are guaranteed over the environmental range of 13 °C to 33 °C. Field Metrology Wells Technical Data Lightweight, portable, and fast�œ�œ Cool to –25 °C in 15 minutes and �œ�œheat to 660 °C in 15 minutes Built-in two-channel readout for �œ�œPRT, RTD, thermocouple, 4-20 mA current True reference thermometry with �œ�œaccuracy to ± 0.01 °C On-board automation and �œ�œdocumentation Metrology performance in accuracy, �œ�œstability, uniformity, and loading
