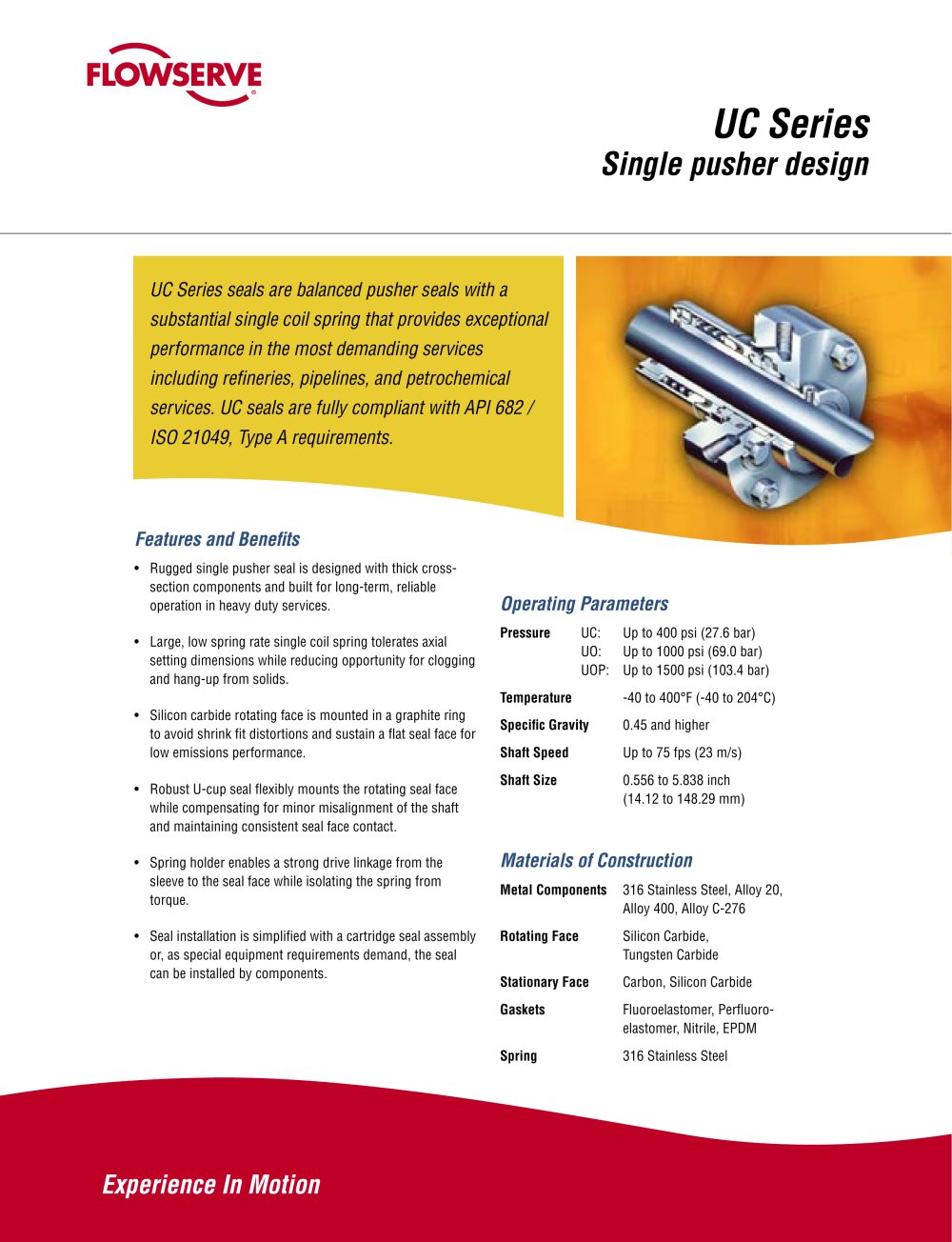

| FLOWSERVE UC Series Single pusher design | ||||||||||||||
| UC Series seals are balanced pusher seals with a substantial single coil spring that provides exceptional performance In the most demanding services including refineries, pipelines, and petrochemical services. UC seals are fully compliant with API 682 / ISO 21049, Type A requirements. | ||||||||||||||
| Features and Benefits Rugged single pusher seal is designed with thick cross-section components and built for long-term, reliable operation in heavy duty services. Large, low spring rate single coil spring tolerates axial setting dimensions while reducing opportunity for clogging and hang-up from solids. Silicon carbide rotating face is mounted in a graphite ring to avoid shrinkfit distortions and sustain a flat seal face for low emissions performance. Robust U-cup seal flexibly mounts the rotating seal face while compensating for minor misalignment of the shaft and maintaining consistent seal face contact. Spring holder enables a strong drive linkage from the sleeve to the seal face while isolating the spring from torque. Seal installation is simplified with a cartridge seal assembly or, as special equipment requirements demand, the seal can be installed by components. | ||||||||||||||
| Operating Parameters Pressure UC: Up to 400 psi (27.6 bar) UO: Up to 1000 psi (69.0 bar) UOP: Up to 1500 psi (103.4 bar) Temperature -40 to 400°F (-40 to 204°C) Specific Gravity 0.45 and higher Shaft Speed Upto75fps(23m/s) Shaft Size 0.556 to 5.838 inch (14.12to 148.29 mm) | ||||||||||||||
| Materials of Construction Metal Components 316 Stainless Steel, Alloy 20, Alloy 400, Alloy C-276 Rotating Face Silicon Carbide, Tungsten Carbide Stationary Face Carbon, Silicon Carbide Gaskets Fluoroelastomer, Perfluoro- elastomer, Nitrile, EPDM Spring 316 Stainless Steel | ||||||||||||||
| Experience In Motion | ||||||||||||||
