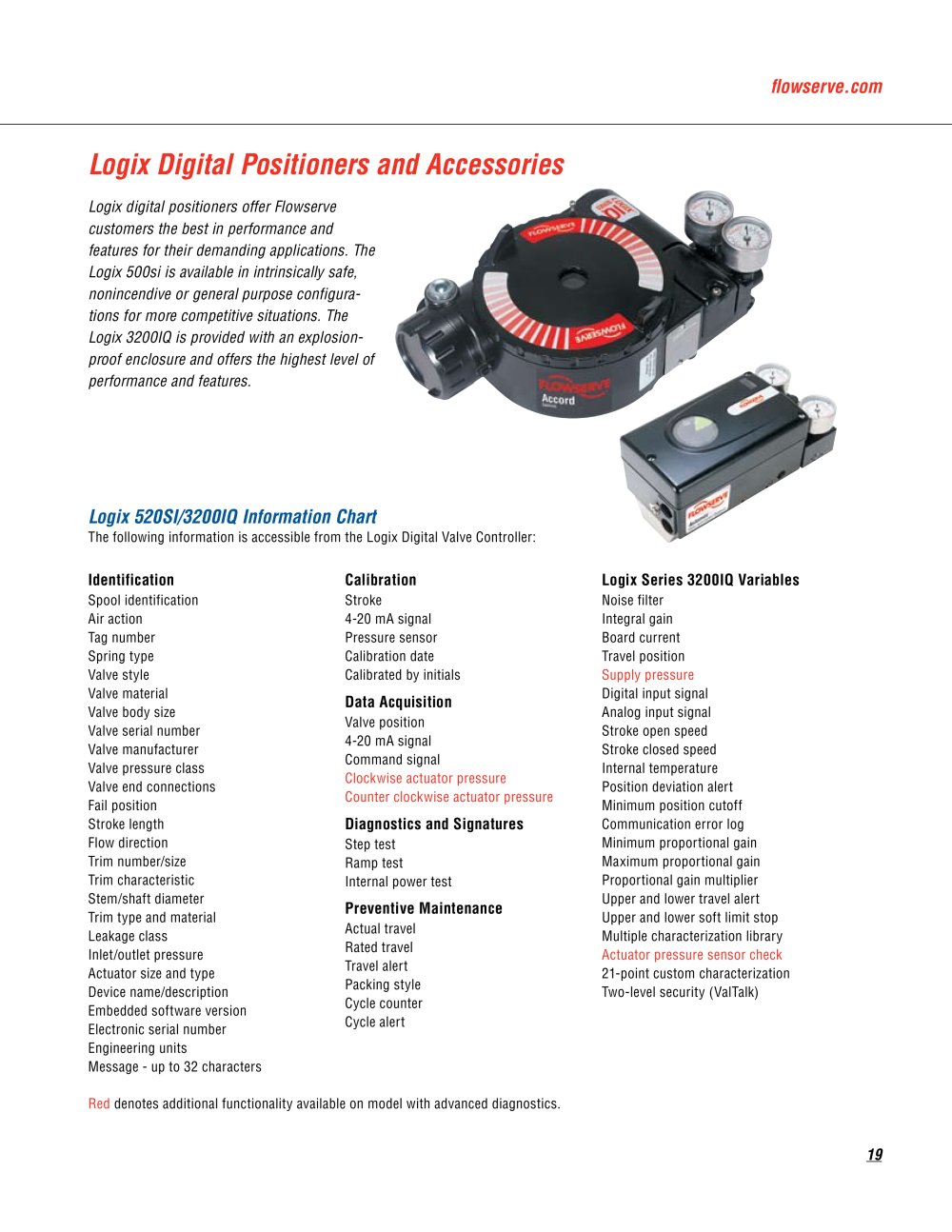

Rotary Switches and Positioners - 6194 Logix Digital Positioners and Accessories

Logix digital positioners offer Flowserve customers the best in performance and features for their demanding applications. The Logix 500si is available in intrinsically safe, nonincendive or general purpose configura- tions for more competitive situations. The Logix 3200IQ is provided with an explosion- proof enclosure and offers the highest level of performance and features. Identification

Logix 520SI/3200IQ Information Chart

The following information is accessible from the Logix Digital Valve Controller:

Calibration Logix Series 3200IQ Variables

Spool identificationAir action Tag number Spring type Valve style Valve material Valve body size Valve serial number Valve manufacturer Valve pressure class Valve end connections Fail position Stroke length Flow direction Trim number/size Trim characteristic Stem/shaft diameter Trim type and material Leakage class Inlet/outlet pressureActuator size and type Device name/description Embedded software version Electronic serial number Engineering units Message - up to 32 characters Stroke4-20 mA signal Pressure sensor Calibration date Calibrated by initials Noise filter Integral gain Board current Travel position Supply pressure

Data Acquisition

Digital input signal Analog input signal Stroke open speed Stroke closed speed Internal temperature Position deviation alert Minimum position cutoff Communication error logMinimum proportional gain Maximum proportional gainProportional gain multiplier Upper and lower travel alert Upper and lower soft limit stopMultiple characterization library Valve position 4-20 mA signal Command signal Clockwise actuator pressureCounter clockwise actuator pressure

Diagnostics and Signatures

Step test Ramp testInternal power test

Preventive Maintenance

Actual travel Rated travel Travel alert Packing style Cycle counter Cycle alert Actuator pressure sensor check 21-point custom characterizationTwo-level security (ValTalk) Red denotes additional functionality available on model with advanced diagnostics.

19
