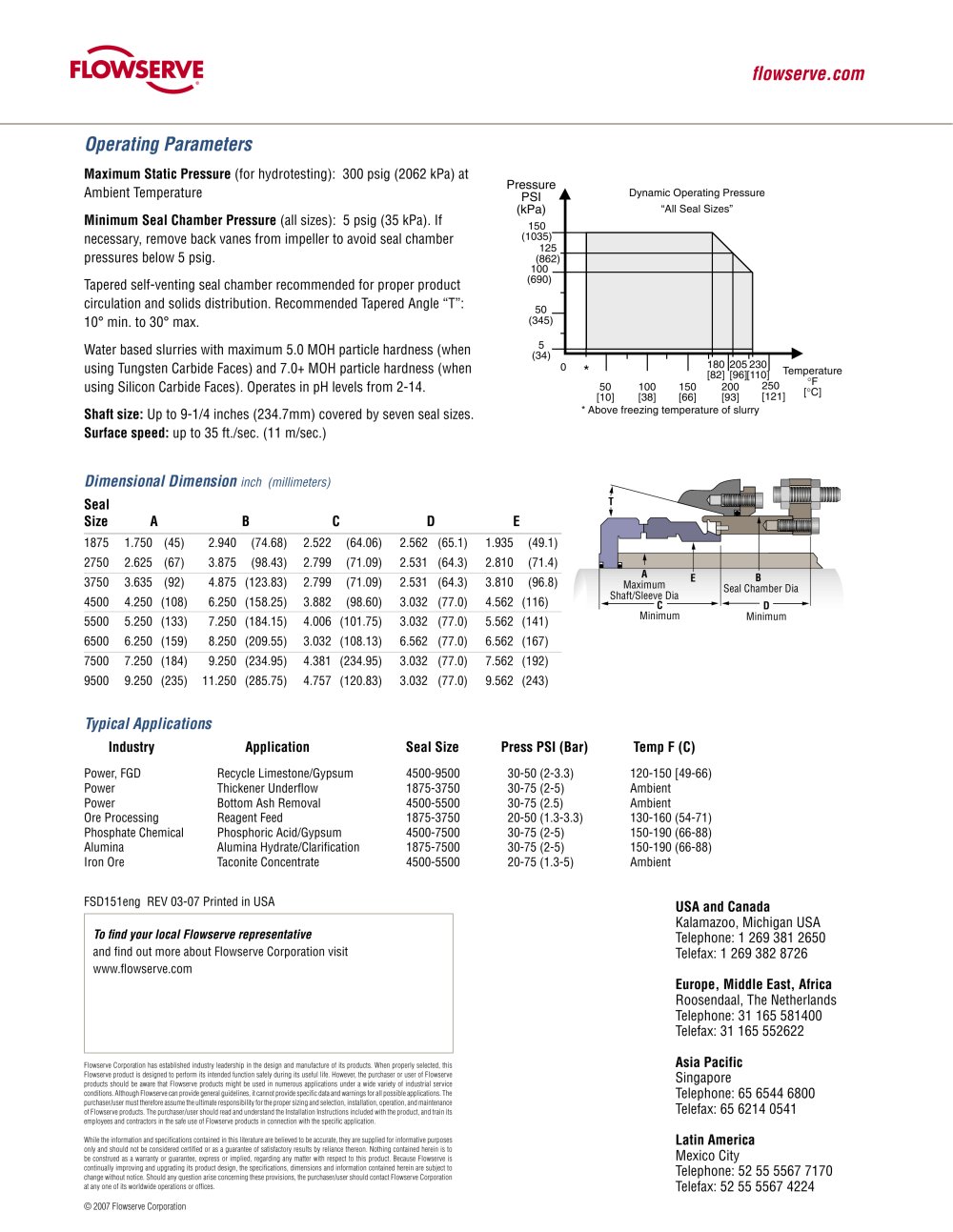

RIS Seal Brochure - FLOWSERVE - #2

Maximum Static Pressure (for hydrotesting): 300 psig (2062 kPa) at Ambient Temperature

Minimum Seal Chamber Pressure (all sizes): 5 psig (35 kPa). If necessary, remove backvanesfrom impeller to avoid seal chamber pressures below 5 psig.

Tapered self-venting seal chamber recommended for proper product circulation and solids distribution. Recommended Tapered Angle "T": 10°min.to 30° max.

Water based slurries with maximum 5.0 MOH particle hardness (when using Tungsten Carbide Faces) and 7.0+ MOH particle hardness (when using Silicon Carbide Faces). Operates in pH levels from 2-14.

Shaft size: Up to 9-1/4 inches (234.7mm) covered by seven seal sizes. Surface speed: upto35 ft./sec. (11 m/sec.)

Pressure PSI ' (kPa)

150 (1035)^-125 (862)' 100 _ (690)

50 _

(345)

5 _

(34)

Dynamic Operating Pressure "All Seal Sizes"

0 *

180 205 230 _T ,

[82] [96][110f Temperature 50 100 150 200 250 [10] [38] [66] [93] [121] L H * Above freezing temperature of slurry

Maximum Shaft/Sleeve Dia

Minimum

Minimum

7500 7.250 9500 9.250

(184) 9.250 (235) 11.250

(234.95) 4.381 (285.75) 4.757

(234.95) 3.032 (120.83) 3.032

(77.0) 7.562 (77.0) 9.562

(192) (243)

Power, FGD RecycleLimestone/Gypsum 4500-9500 30-50 (2-3.3) 120-150 [49-66)

Power ThickenerUnderflow 1875-3750 30-75 (2-5) Ambient

Power Bottom Ash Removal 4500-5500 30-75 (2.5) Ambient

OreProcessing ReagentFeed 1875-3750 20-50 (1.3-3.3) 130-160 (54-71)

PhosphateChemical PhosphoricAcid/Gypsum 4500-7500 30-75 (2-5) 150-190 (66-88)

Alumina AluminaHydrate/Clarification 1875-7500 30-75 (2-5) 150-190 (66-88)

IronOre TaconiteConcentrate 4500-5500 20-75 (1.3-5) Ambient
