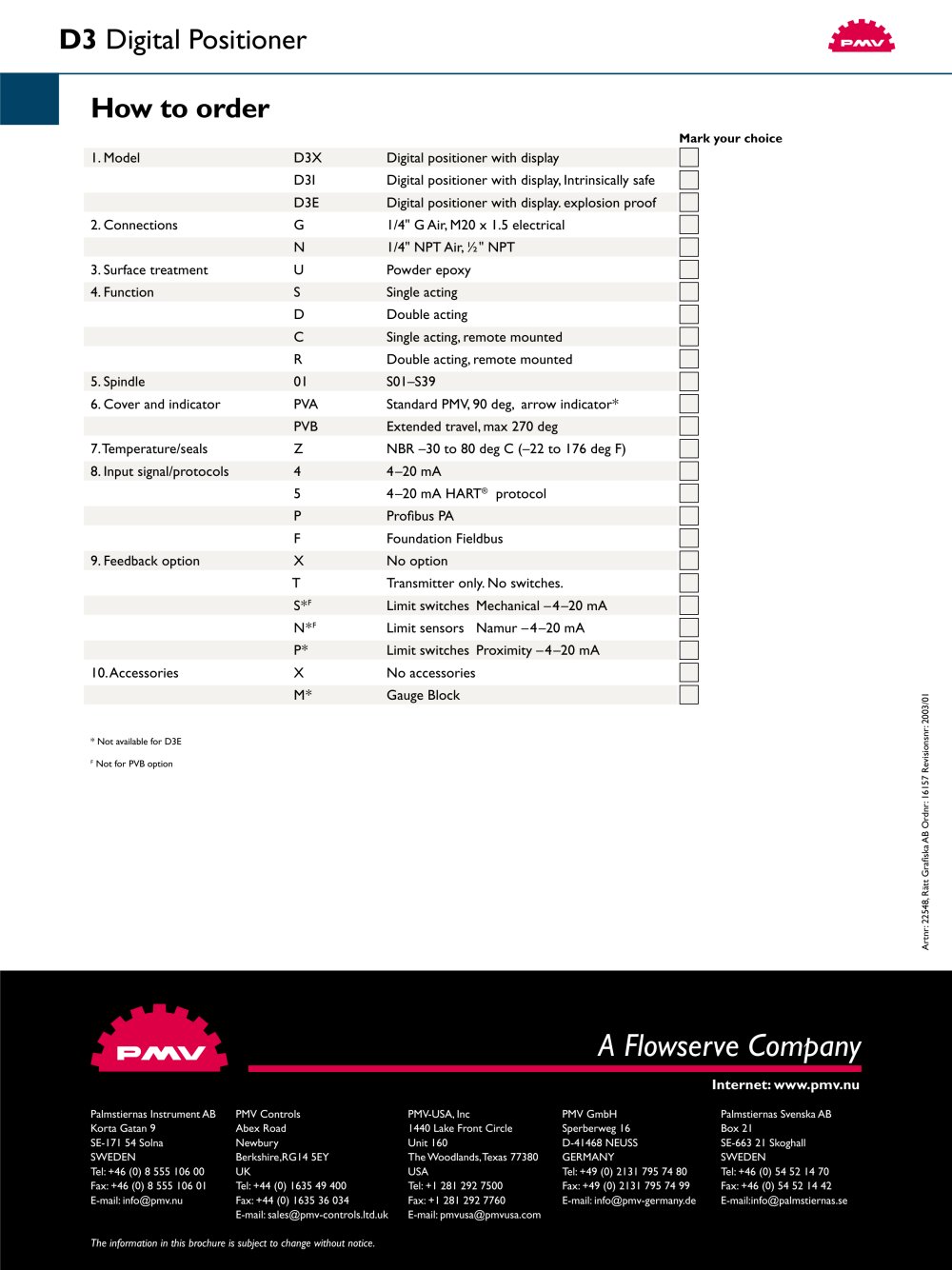

D3 Digital Positioner How to order

Mark your choice 1. Model D3X Digital positioner with display D3I Digital positioner with display, Intrinsically safe D3E Digital positioner with display. explosion proof2. Connections G 1/4" G Air, M20 x 1.5 electrical N 1/4" NPT Air, ½" NPT 3. Surface treatment U Powder epoxy4. Function S Single acting D Double acting C Single acting, remote mounted R Double acting, remote mounted5. Spindle 01 S01–S396. Cover and indicator PVA Standard PMV, 90 deg, arrow indicator* PVB Extended travel, max 270 deg7. Temperature/seals Z NBR –30 to 80 deg C (–22 to 176 deg F)8. Input signal/protocols 4 4–20 mA 5 4–20 mA HART
® protocol P Profi bus PA F Foundation Fieldbus9. Feedback option X No option T Transmitter only. No switches. S*
F Limit switches Mechanical –4–20 mA N*
F Limit sensors Namur –4–20 mA P* Limit switches Proximity –4–20 mA 10. Accessories X No accessories M* Gauge Block
* Not available for D3E F Not for PVB option Artnr: 22548, Rätt Grafi ska AB Ordnr: 16157 Revisionsnr: 2003/01
