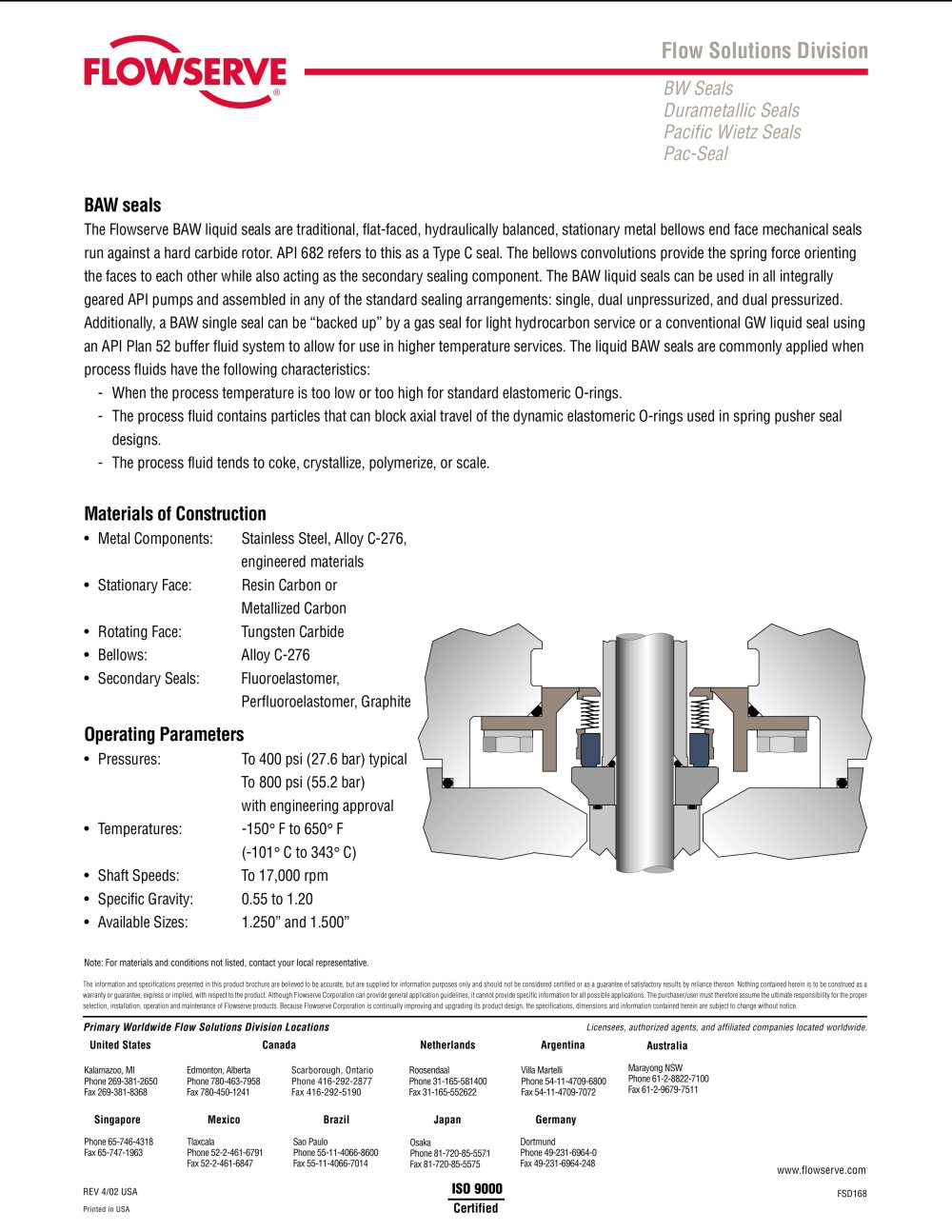

BAW seals

The Flowserve BAW liquid seals are traditional, flat-faced, hydraulically balanced, stationary metal bellows end face mechanical seals run against a hard carbide rotor. API 682 refers to this as a Type C seal. The bellows convolutions provide the spring force orienting the faces to each other while also acting as the secondary sealing component. The BAW liquid seals can be used in all integrally geared API pumps and assembled in any of the standard sealing arrangements: single, dual unpressurized, and dual pressurized. Additionally, a BAW single seal can be "backed up" by a gas seal for light hydrocarbon service or a conventional GW liquid seal using an API Plan 52 buffer fluid system to allow for use in higher temperature services. The liquid BAW seals are commonly applied when process fluids have the following characteristics:

- When the process temperature is too low or too high for standard elastomeric O-rings.

- The process fluid contains particles that can block axial travel of the dynamic elastomeric O-rings used in spring pusher seal designs.

- The process fluid tends to coke, crystallize, polymerize, or scale.

Materials of Construction

• Metal Components: Stainless Steel, Alloy C-276, engineered materials

• Stationary Face:

• Rotating Face:

• Bellows:

• Secondary Seals:

Resin Carbon or Metallized Carbon Tungsten Carbide Alloy C-276

Fluoroelastomer,

Perfluoroelastomer, Graphite

Operating Parameters

• Pressures:

To 400 psi (27.6 bar) typical To 800 psi (55.2 bar) with engineering approval -150° F to 650° F (-101° C to 343° C)

To 17,000 rpm

0.55 to 1.20 1.250" and 1.500"

• Temperatures:

• Shaft Speeds:

• Specific Gravity:

• Available Sizes:

Note: For materials and conditions not listed, contact your local representative.
