Flow Control Division
Worcester Controls

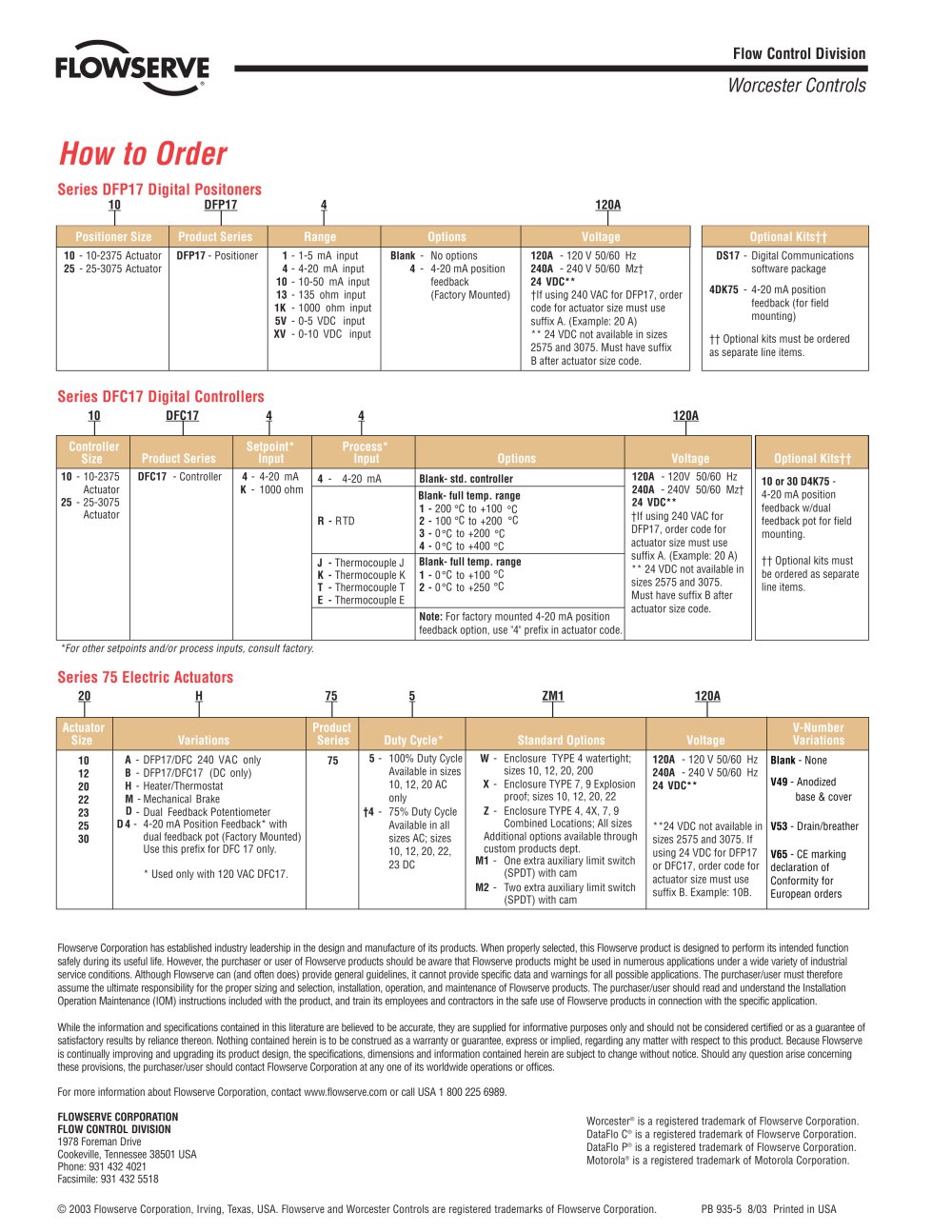

How to Order
Series DFP17 Digital Positoners
10 DFP17
120A
4
1
1
i
i
10 - 10-2375 Actuator 25 - 25-3075 Actuator
DFP17 - Positioner
1 - 1-5 mA input 4 - 4-20 mA input 10 -10-50 mA input 13 -135 ohm input 1K - 1000 ohm input 5V - 0-5 VDC input XV -0-10 VDC input
Blank - No options 4 - 4-20 mA position feedback
(Factory Mounted)
120A - 120 V 50/60 Hz 240A - 240 V 50/60 Mzf 24 VDC**
fit using 240 VAC for DFP17, order code for actuator size must use suffix A. (Example: 20 A) ** 24 VDC not available in sizes 2575 and 3075. Must have suffix B after actuator size code.
DS17 - Digital Communications software package
4DK75 - 4-20 mA position feedback (for field mounting)
ft Optional kits must be ordered as separate line items.
10
DFC17
120A
4
4
Optional Kit!
10 - 10-2375
Actuator 25 - 25-3075 Actuator
DFC17 - Controller
4 - 4-20 mA K - 1000 ohm
120A - 120V 50/60 Hz 240A - 240V 50/60 Mzf
24 VDC**
flf using 240 VAC for DFP17, order code for actuator size must use suffix A. (Example: 20 A) ** 24 VDC not available in sizes 2575 and 3075. Must have suffix B after actuator size code.
4
4-20 mA
Blank- std. controller
10 or 30 D4K75 -
4-20 mA position feedback w/dual feedback pot for field mounting.
tt Optional kits must be ordered as separate line items.
Blank- full temp. range
1 - 200 °C to +100 °C
2 - 100 °C to +200 °C
3 - 0°C to +200 °C
4 - 0 °C to +400 °C
R - RTD
Blank- full temp. range
1 - 0 °C to +100 °C
2 - 0°C to +250 °C
J - Thermocouple J K - Thermocouple K T - Thermocouple T E - Thermocouple E
Note: For factory mounted 4-20 mA position feedback option, use "4" prefix in actuator code.
*For other setpoints and/or process inputs, consult factory.
Series 75 Electric Actuators
20 H
T_T_
ZM1
120A
75
5
10
A
DFP17/DFC 240 VAC only
12
B
DFP17/DFC17 (DC only)
20
H
Heater/Thermostat
22
M
- Mechanical Brake
23
D
Dual Feedback Potentiometer
25
D4-
4-20 mA Position Feedback* with
30
dual feedback pot (Factory Mounted) Use this prefix for DFC 17 only.
W - Enclosure TYPE 4 watertight;
sizes 10, 12, 20, 200
5 - 100% Duty Cycle Available In sizes 10, 12, 20 AC only
t4 - 75% Duty Cycle Available in all sizes AC; sizes 10, 12, 20, 22, 23 DC
120A - 120 V 50/60 Hz 240A - 240 V 50/60 Hz 24 VDC**
Blank - None
V49 - Anodized base & cover
V53 - Drain/breather
V65 - CE marking declaration of Conformity for European orders
75
X
Enclosure TYPE 7, 9 Explosion
proof; sizes 10, 12, 20, 22
Z
Enclosure TYPE 4, 4X, 7, 9
Combined Locations; All sizes Ad d i ti onal options available through c u s to m products dept. M1 - One extra auxiliary limit switch
(SPDT) with cam M2 - Two extra auxiliary limit switch (SPDT) with cam
**24 VDC not available in sizes 2575 and 3075. If using 24 VDC for DFP17 or DFC17, order code for actuator size must use suffix B. Example: 10B.
* Used only with 120 VAC DFC17.
Flowserve Corporation has established Industry leadership In the design and manufacture of its products. When properly selected, this Flowserve product Is designed to perform its intended function safely during its useful life. However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide variety of industrial service conditions. Although Flowserve can (and often does) provide general guidelines, it cannot provide specific data and warnings for all possible applications. The purchaser/user must therefore assume the ultimate responsibility for the proper sizing and selection, installation, operation, and maintenance of Flowserve products. The purchaser/user should read and understand the Installation Operation Maintenance (IOM) instructions included with the product, and train its employees and contractors in the safe use of Flowserve products in connection with the specific application.
While the information and specifications contained in this literature are believed to be accurate, they are supplied for informative purposes only and should not be considered certified or as a guarantee of satisfactory results by reliance thereon. Nothing contained herein is to be construed as a warranty or guarantee, express or implied, regarding any matter with respect to this product. Because Flowserve is continually improving and upgrading its product design, the specifications, dimensions and information contained herein are subject to change without notice. Should any question arise concerning these provisions, the purchaser/user should contact Flowserve Corporation at any one of its worldwide operations or offices.
For more information about Flowserve Corporation, contact www.flowserve.com or call USA 1 800 225 6989.
FLOWSERVE CORPORATION FLOW CONTROL DIVISION
1978 Foreman Drive Cookeville, Tennessee 38501 USA Phone: 931 432 4021 Facsimile: 931 432 5518
Worcester* is a registered trademark of Flowserve Corporation. DataFlo C® is a registered trademark of Flowserve Corporation. DataFlo P* is a registered trademark of Flowserve Corporation. Motorola® is a registered trademark of Motorola Corporation.
© 2003 Flowserve Corporation, Irving, Texas, USA. Flowserve and Worcester Controls are registered trademarks of Flowserve Corporation.
PB 935-5 8/03 Printed in USA
