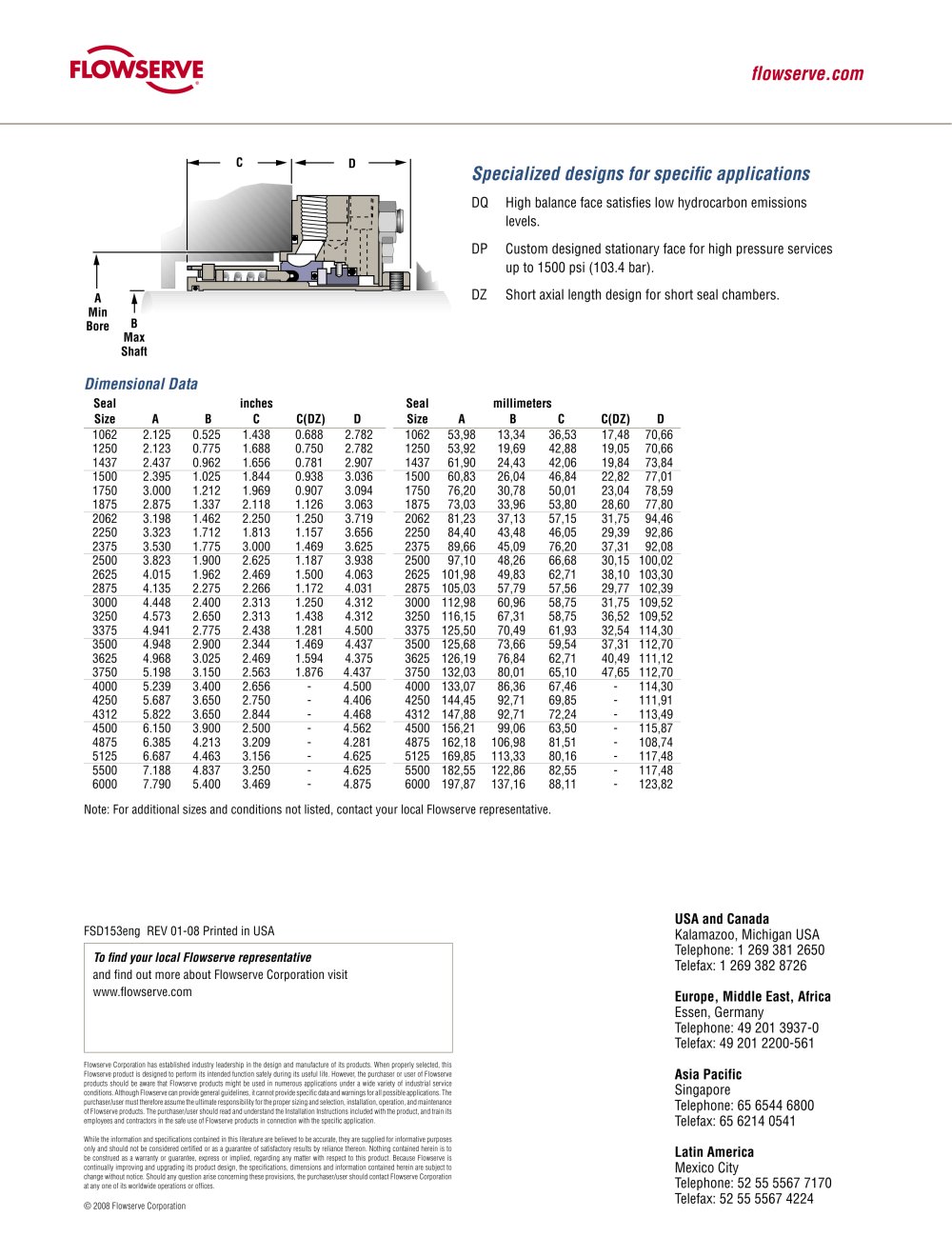

FLOWSERVE flowserve.com

Specialized designs for specific applications

DQ High balance face satisfies low hydrocarbon emissions levels.

DP Custom designed stationary face for high pressure services upto 1500 psi (103.4 bar).

DZ Short axial length design for short seal chambers.

Min T Bore ^BMax Shaft

Dimensional Data

Seal inches Seal millimeters

Size A B C C(DZ) D Size A B C C(DZ) D


	1062 2.125 0.525 1.438 0.688 2.782 1250 2.123 0.775 1.688 0.750 2.782 1437 2.437 0.962 1.656 0.781 2.907	1062 53,98 13,34 36,53 17,48 70,66 1250 53,92 19,69 42,88 19,05 70,66 1437 61,90 24,43 42,06 19,84 73,84
	1500 2.395 1.025 1.844 0.938 3.036 1750 3.000 1.212 1.969 0.907 3.094 1875 2.875 1.337 2.118 1.126 3.063	1500 60,83 26,04 46,84 22,82 77,01 1750 76,20 30,78 50,01 23,04 78,59 1875 73,03 33,96 53,80 28,60 77,80
	2062 3.198 1.462 2.250 1.250 3.719 2250 3.323 1.712 1.813 1.157 3.656 2375 3.530 1.775 3.000 1.469 3.625	2062 81,23 37,13 57,15 31,75 94,46 2250 84,40 43,48 46,05 29,39 92,86 2375 89,66 45,09 76,20 37,31 92,08
	2500 3.823 1.900 2.625 1.187 3.938 2625 4.015 1.962 2.469 1.500 4.063 2875 4.135 2.275 2.266 1.172 4.031	2500 97,10 48,26 66,68 30,15 100,02 2625 101,98 49,83 62,71 38,10 103,30 2875 105,03 57,79 57,56 29,77 102,39
	3000 4.448 2.400 2.313 1.250 4.312 3250 4.573 2.650 2.313 1.438 4.312 3375 4.941 2.775 2.438 1.281 4.500	3000 112,98 60,96 58,75 31,75 109,52 3250 116,15 67,31 58,75 36,52 109,52 3375 125,50 70,49 61,93 32,54 114,30
	3500 4.948 2.900 2.344 1.469 4.437 3625 4.968 3.025 2.469 1.594 4.375 3750 5.198 3.150 2.563 1.876 4.437	3500 125,68 73,66 59,54 37,31 112,70 3625 126,19 76,84 62,71 40,49 111,12 3750 132,03 80,01 65,10 47,65 112,70
	4000 5.239 3.400 2.656 - 4.500 4250 5.687 3.650 2.750 - 4.406 4312 5.822 3.650 2.844 - 4.468	4000 133,07 86,36 67,46 - 114,30 4250 144,45 92,71 69,85 - 111,91 4312 147,88 92,71 72,24 - 113,49
	4500 6.150 3.900 2.500 - 4.562 4875 6.385 4.213 3.209 - 4.281 5125 6.687 4.463 3.156 - 4.625	4500 156,21 99,06 63,50 - 115,87 4875 162,18 106,98 81,51 - 108,74 5125 169,85 113,33 80,16 - 117,48

5500 7.188 4.837 3.250 - 4.625 5500 182,55 122,86 82,55 - 117,48 6000 7.790 5.400 3.469 - 4.875 6000 197,87 137,16 88,11 - 123,82

Note: For additional sizes and conditions not listed, contactyour local Flowserve representative.

USA and Canada

Kalamazoo, Michigan USA Telephone: 1 269 381 2650 Telefax: 1 269 382 8726

Europe, Middle East, Africa

Essen, Germany Telephone: 49 201 3937-0 Telefax: 49 201 2200-561

Asia Pacific

Singapore

Telephone: 65 6544 6800 Telefax: 65 6214 0541

LatinAmerica

Mexico City

Telephone: 52 55 5567 7170 Telefax: 52 55 5567 4224

FSD153eng REV01-08 Printed in USA

To find your local Flowserve representative

and find out more about Flowserve Corporation visit www.flowserve.com

Flowserve Corporation has established industry leadership In the design and manufacture of its products.When properly selected, this Flowserve product Is designed to perform Its intended function safely during Its useful life.However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide variety of industrlalservlce conditions. Although Flowserve can provide generalguidelines.lt cannot provide specific data and warnings for all possible appllcations.The purchaser/usermusttherefore assumethe ultimate responsibility fortheproperslzing and selection. Installation, operation, and maintenance of Flowserve products.The purchaser/user should read and understand the Installation Instructions Included with the product, and train Its employees and contractors In the safe use of Flowserve products In connection with the specific application.

While the information and specifications contained in this literature are believed to be accurate, they are supplied for Informative purposes only and should not be considered certified or as a guarantee of satisfactory results by reliance thereon.Nothlng contained herein is to be construed as a warranty or guarantee, express or implied, regarding any matter with respect to this product.Because Flowserve Is continually Improving and upgrading its product design, the specifications, dimensions and information contained herein are subject to change without notice. Should any guestlon arise concerning these provisions, the purchaser/user should contact Flowserve Corporation at anyone of Its worldwide operations or offices.
