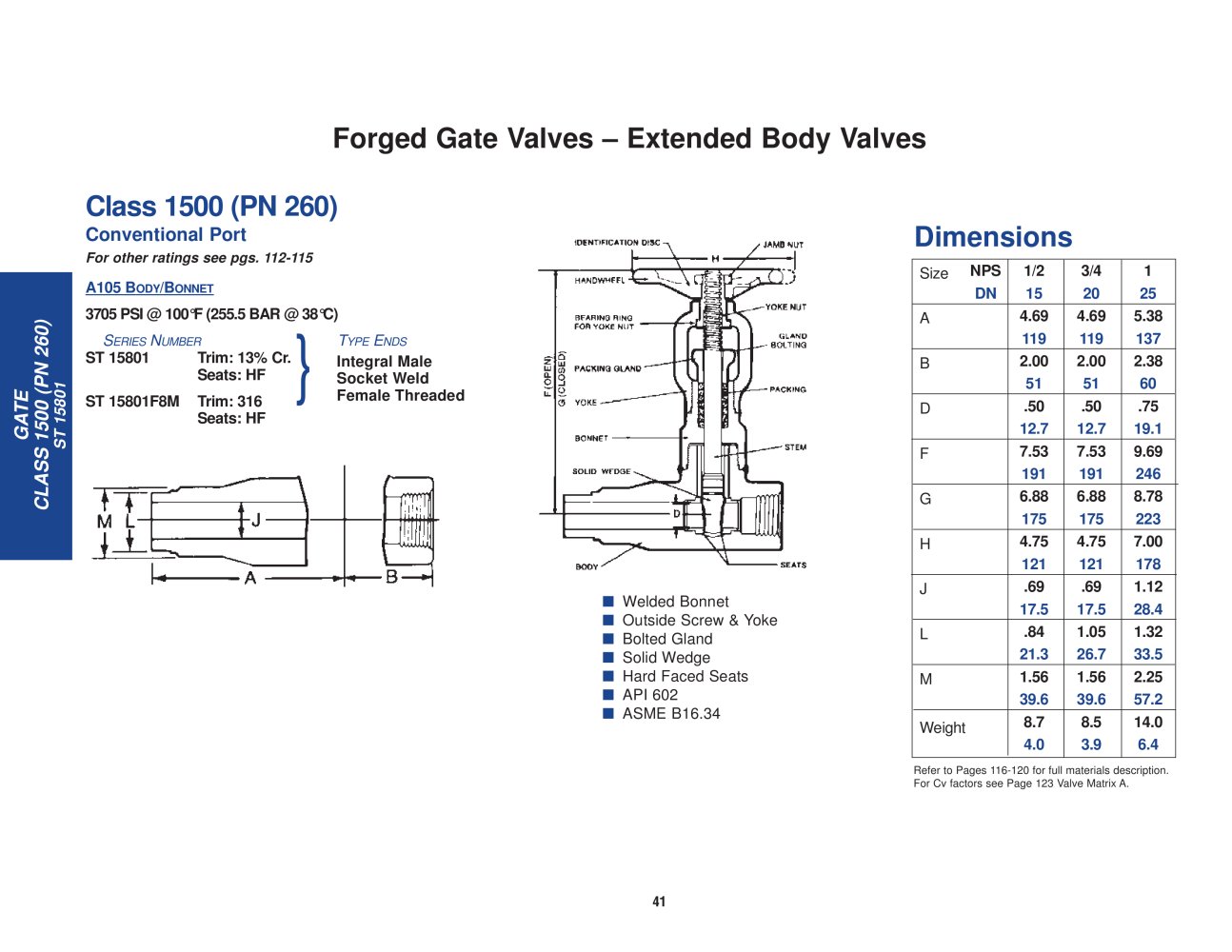

Forged Gate Valves - Extended Body Valves
Class 1500 (PN 260)
Conventional Port
For other ratings see pgs. 112-115
A105 Body/Bonnet
3705 PSI @ 100°F (255.5 BAR @ 38°C)
Series Number ^ Type Ends
ST 15801 Trim: 13% Cr. I integral Male
Seats: HF / Socket Weld
ST15801F8M Trim: 316 J Female Threaded Seats: HF
Dimensions
IDENTIFICATION DISC
Size NPS DN
1/2 15
3/4 20
1
25
A
4.69 119
4.69 119
5.38 137
B
2.00
2.00 51
2.38 60
D
.50 12.7
.50 12.7
.75 19.1
F
7.53 191
7.53 191
9.69 246
G
6.88 175
6.88 175
8.78 223
H
4.75 121
4.75 121
7.00 178
J
.69 17.5
.69 17.5
1.12 28.4
L
.84 21.3
1.05 26.7
1.32 33.5
M
1.56 39.6
1.56 39.6
2.25
Weight
8.7 4.0
8.5 3.9
14.0 6.4
TT
M L-
IA
B-
Welded Bonnet Outside Screw & Yoke Bolted Gland Solid Wedge Hard Faced Seats API 602 ASME B16.34
Referto Pages 116 For Cv factors see
120 for full materials description. Page 123 Valve Matrix A.
41
