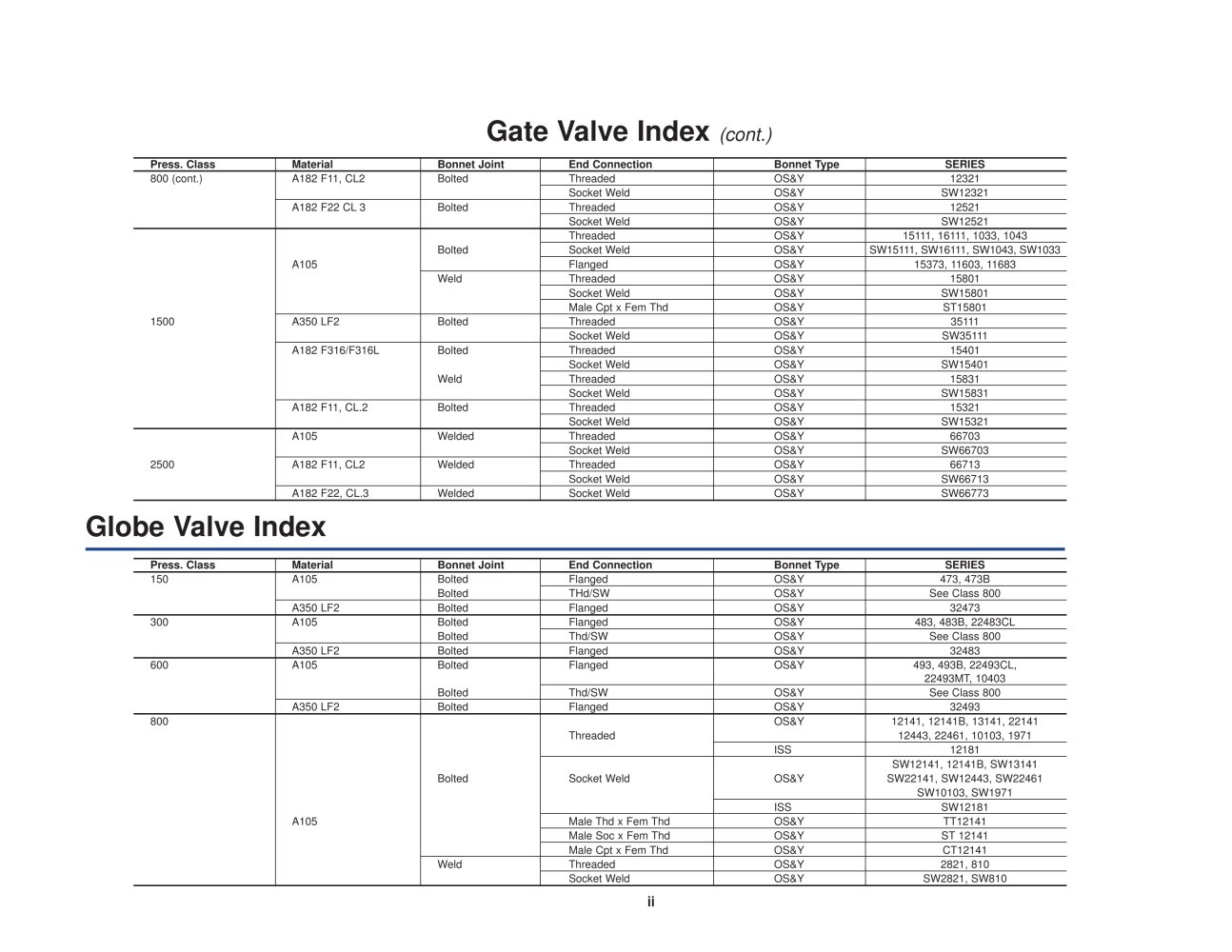

Gate Valve Index (cont.)


	Press. Class	Material	Bonnet Joint	End Connection	Bonnet Type	SERIES
	800 (cont.)	A182 F11, CL2	Bolted	Threaded	OS&Y	12321
		A182 F11, CL2	Bolted	Socket Weld	OS&Y	SW12321
		A182 F22 CL3	Bolted	Threaded	OS&Y	12521
		A182 F22 CL3	Bolted	Socket Weld	OS&Y	SW12521
	1500	A105	Bolted	Threaded	OS&Y	15111, 16111, 1033, 1043
				Socket Weld	OS&Y	SW15111, SW16111, SW1043, SW1033
				Flanged	OS&Y	15373, 11603, 11683
			Weld	Threaded	OS&Y	15801
				Socket Weld	OS&Y	SW15801
				Male Cpt x Fern Thd	OS&Y	ST15801
		A350 LF2	Bolted	Threaded	OS&Y	35111
		A350 LF2	Bolted	Socket Weld	OS&Y	SW35111
		A182 F316/F316L	Bolted Weld	Threaded	OS&Y	15401
				Socket Weld	OS&Y	SW15401
				Threaded	OS&Y	15831
				Socket Weld	OS&Y	SW15831
		A182 F11, CL.2	Bolted	Threaded	OS&Y	15321
		A182 F11, CL.2	Bolted	Socket Weld	OS&Y	SW15321
	2500	A105	Welded	Threaded	OS&Y	66703
		A105	Welded	Socket Weld	OS&Y	SW66703
		A182 F11, CL2	Welded	Threaded	OS&Y	66713
		A182 F11, CL2	Welded	Socket Weld	OS&Y	SW66713
		A182 F22, CL.3	Welded	Socket Weld	OS&Y	SW66773

Globe Valve Index


	Press. Class	Material	Bonnet Joint	End Connection	Bonnet Type	SERIES
	150	A105	Bolted Bolted	Flanged	OS&Y	473, 473B
		A105	Bolted Bolted	THd/SW	OS&Y	See Class 800
		A350 LF2	Bolted	Flanged	OS&Y	32473
	300	A105	Bolted Bolted	Flanged	OS&Y	483, 483B, 22483CL
		A105	Bolted Bolted	Thd/SW	OS&Y	See Class 800
		A350 LF2	Bolted	Flanged	OS&Y	32483
	600	A105	Bolted Bolted	Flanged	OS&Y	493, 493B, 22493CL, 22493MT, 10403
		A105	Bolted Bolted	Thd/SW	OS&Y	See Class 800
		A350 LF2	Bolted	Flanged	OS&Y	32493
	800	A105	Bolted	Threaded	OS&Y	12141, 12141B, 13141, 22141 12443, 22461, 10103, 1971
				Threaded	ISS	12181
				Socket Weld	OS&Y	SW12141, 12141B, SW13141 SW22141, SW12443, SW22461 SW10103, SW1971
				Socket Weld	ISS	SW12181
				Male Thd x Fern Thd	OS&Y	TT12141
				Male Soc x Fern Thd	OS&Y	ST 12141
				Male Cpt x Fern Thd	OS&Y	CT12141
			Weld	Threaded	OS&Y	2821, 810
			Weld	Socket Weld	OS&Y	SW2821, SW810
