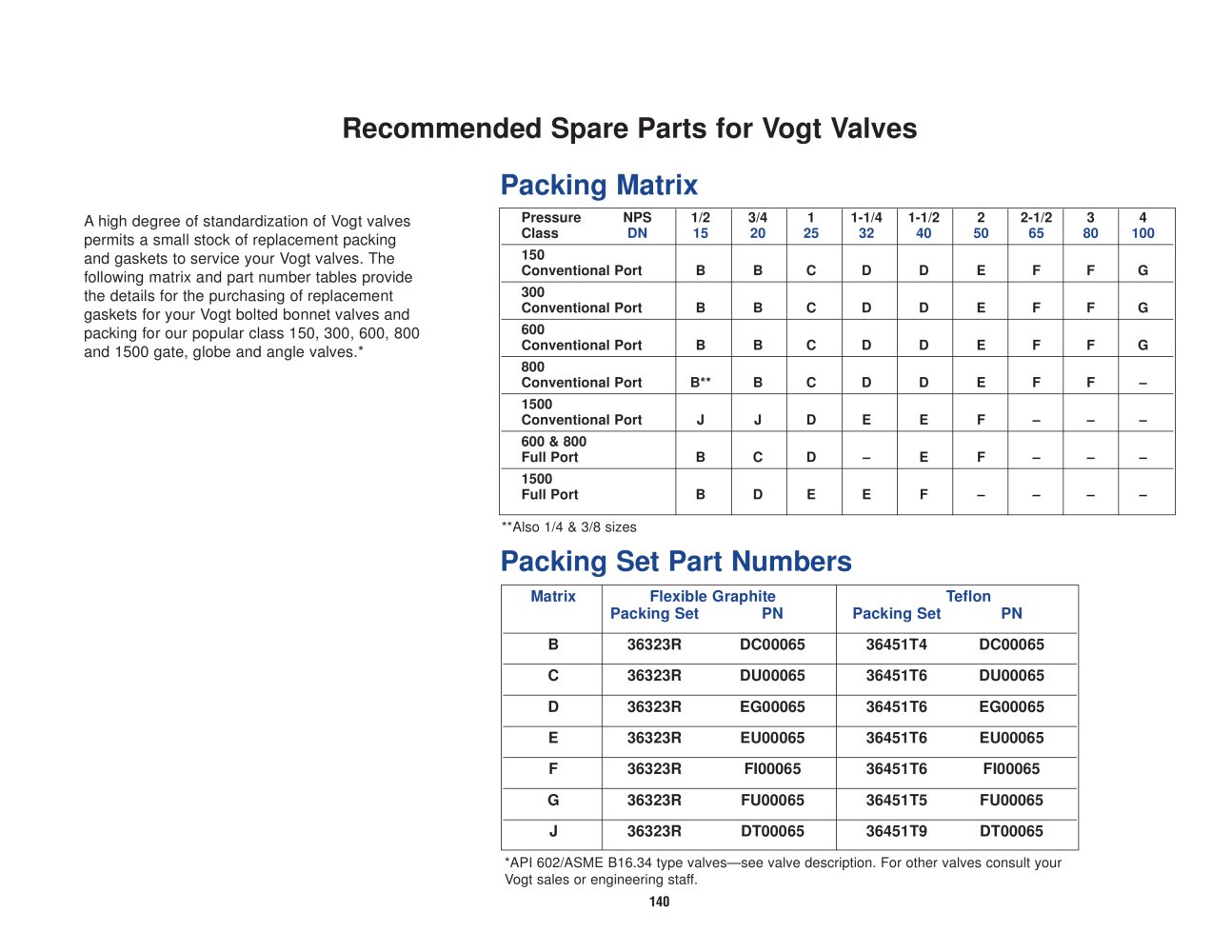

Recommended Spare Parts for Vogt Valves Packing Matrix


Pressure NPS Class DN	1/2 15	3/4 20	1 25	1-1/4 32	1-1/2 40	2 50	2-1/2 65	3 80	4 100
150 Conventional Port	B	B	C	D	D	E	F	F	G
300 Conventional Port	B	B	C	D	D	E	F	F	G
600 Conventional Port	B	B	C	D	D	E	F	F	G
800 Conventional Port	B**	B	C	D	D	E	F	F	_
1500 Conventional Port	J	J	D	E	E	F	_	_	_
600 & 800 Full Port	B	C	D	_	E	F	_	_	_
1500 Full Port	B	D	E	E	F	-	-	-	-

A high degree of standardization of Vogt valves permits a small stock of replacement packing and gaskets to service your Vogt valves. The following matrix and part number tables provide the details for the purchasing of replacement gaskets for your Vogt bolted bonnet valves and packing for our popular class 150, 300, 600, 800 and 1500 gate, globe and angle valves.*

*Also 1/4 & 3/8 sizes

Packing Set Part Numbers


Matrix	Flexible Graphite Packing Set PN		Packing Sel	Teflon PN
B	36323R	DC00065	36451T4	DC00065
C	36323R	DU00065	36451T6	DU00065
D	36323R	EG00065	36451T6	EG00065
E	36323R	EU00065	36451T6	EU00065
F	36323R	FI00065	36451T6	FI00065
G	36323R	FU00065	36451T5	FU00065
J	36323R	DT00065	36451T9	DT00065

*API 602/ASME B16.34 type valves—see valve description. For other valves consult your Vogt sales or engineering staff.
