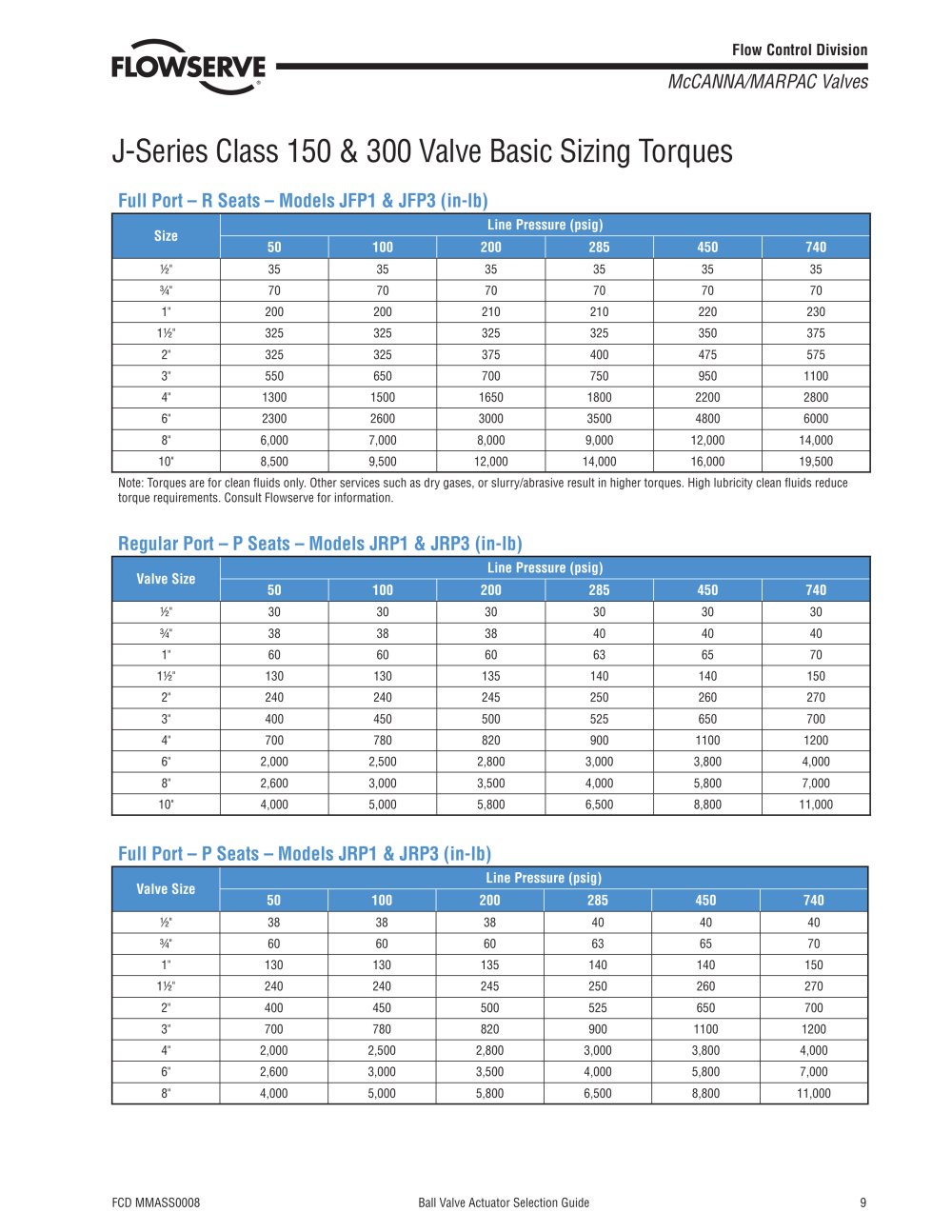

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Flow Control Division | | | | | | FLOWSERVE | | | | | | McCANNA/MARPAC Valves | | | | | | | | | | | | | | J-Series Class 150 & 300 Valve Basic Sizing Torques :ats - Models JFP1 & JFP3 (in-lb) | | | | | | | | | | | | | | | | | | | Line Pressure (psig) | | | | | 50 100 1 200 1 285 | 450 | 7Ì0 | | | | 4" | 35 | 35 | 35 | 35 | 35 | 35 | | | | 3/4" | 70 | 70 | 70 | 70 | 70 | 70 | | | | 1" | 200 | 200 | 210 | 210 | 220 | 230 | | | | 114" | 325 | 325 | 325 | 325 | 350 | 375 | | | | 2" | 325 | 325 | 375 | 400 | 475 | 575 | | | | 3" | 550 | 650 | 700 | 750 | 950 | 1100 | | | | 4" | 1300 | 1500 | 1650 | 1800 | 2200 | 2800 | | | | 6" | 2300 | 2600 | 3000 | 3500 | 4800 | 6000 | | | | 8" | 6,000 | 7,000 | 8,000 | 9,000 | 12,000 | 14,000 | | | | 10" | 8,500 | 9,500 | 12,000 | 14,000 | 16,000 | 19,500 | | | | | | | | | | | | | | | | | | | | | | Note: Torques are for clean fluids only. Other services such as dry gases, or slurry/abrasive result in higher torques. High lubricity clean fluids reduce torque requirements. Consult Flowserve for information. | | | | | | | | | | Regular Port - P Seats - Models JRP1 & JRP3 (in-lb) | | | | | | | | | | | | | | | | | | | | | | Valve Size | Line Pres; | >ure (psig) | | | | 50 1 100 1 200 1 285 | 450 | 740 | | | | 14" | 30 | 30 | 30 | 30 | 30 | 30 | | | | /" | 38 | 38 | 38 | 40 | 40 | 40 | | | | 1" | 60 | 60 | 60 | 63 | 65 | 70 | | | | 14" | 130 | 130 | 135 | 140 | 140 | 150 | | | | 2" | 240 | 240 | 245 | 250 | 260 | 270 | | | | 3" | 400 | 450 | 500 | 525 | 650 | 700 | | | | 4" | 700 | 780 | 820 | 900 | 1100 | 1200 | | | | 6" | 2,000 | 2,500 | 2,800 | 3,000 | 3,800 | 4,000 | | | | 8" | 2,600 | 3,000 | 3,500 | 4,000 | 5,800 | 7,000 | | | | 10" | 4,000 | 5,000 | 5,800 | 6,500 | 8,800 | 11,000 | | | | Full Port - P Seats - Models JRP1 & JRP3 (in-lb) | | | | mum | Line Pressure (psig) | | | | | | 285 | 450 | 740 | | | | 4" | 38 | 38 | 38 | 40 | 40 | 40 | | | | /" | 60 | 60 | 60 | 63 | 65 | 70 | | | | 1" | 130 | 130 | 135 | 140 | 140 | 150 | | | | 14" | 240 | 240 | 245 | 250 | 260 | 270 | | | | 2" | 400 | 450 | 500 | 525 | 650 | 700 | | | | 3" | 700 | 780 | 820 | 900 | 1100 | 1200 | | | | 4" | 2,000 | 2,500 | 2,800 | 3,000 | 3,800 | 4,000 | | | | 6" | 2,600 | 3,000 | 3,500 | 4,000 | 5,800 | 7,000 | | | | 8" | 4,000 | 5,000 | 5,800 | 6,500 | 8,800 | 11,000 | | | | | | | | | | | | | | | | | | | | | | FCD MMASS0008 | | Ball Valve Actuator Selection Guide | | 9 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
