Type 3

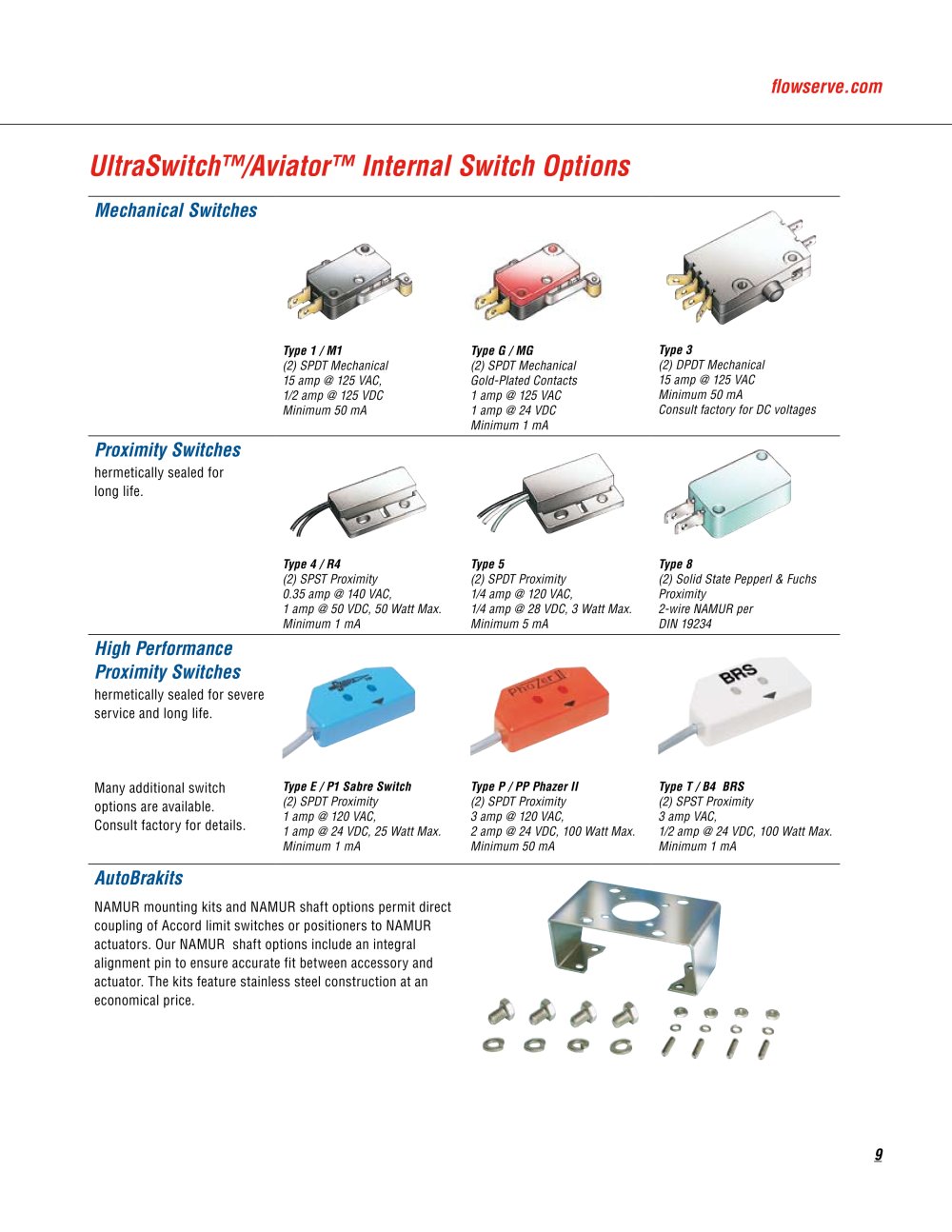

Accord switches and positioners - 6194 UltraSwitch™/Aviator™ Internal Switch Options

(2) DPDT Mechanical15 amp @ 125 VAC Minimum 50 mA Consult factory for DC voltages

Mechanical Switches

Type G / MG (2) SPDT Mechanical Gold-Plated Contacts 1 amp @ 125 VAC 1 amp @ 24 VDC Minimum 1 mA Type 1 / M1 (2) SPDT Mechanical 15 amp @ 125 VAC, 1/2 amp @ 125 VDC Minimum 50 mA Type 8 (2) Solid State Pepperl & Fuchs Proximity 2-wire NAMUR per DIN 19234

Proximity Switches

hermetically sealed for long life.

Type 5 (2) SPDT Proximity 1/4 amp @ 120 VAC, 1/4 amp @ 28 VDC, 3 Watt Max. Minimum 5 mA Type 4 / R4 (2) SPST Proximity 0.35 amp @ 140 VAC, 1 amp @ 50 VDC, 50 Watt Max. Minimum 1 mA

High Performance Proximity Switches

hermetically sealed for severe service and long life.

Type T / B4 BRS (2) SPST Proximity 3 amp VAC, 1/2 amp @ 24 VDC, 100 Watt Max. Minimum 1 mA Type P / PP Phazer II (2) SPDT Proximity 3 amp @ 120 VAC, 2 amp @ 24 VDC, 100 Watt Max. Minimum 50 mA

Many additional switch options are available. Consult factory for details.

Type E / P1 Sabre Switch (2) SPDT Proximity 1 amp @ 120 VAC, 1 amp @ 24 VDC, 25 Watt Max. Minimum 1 mA

AutoBrakits

NAMUR mounting kits and NAMUR shaft options permit direct coupling of Accord limit switches or positioners to NAMUR actuators. Our NAMUR shaft options include an integral alignment pin to ensure accurate fit between accessory and actuator. The kits feature stainless steel construction at an economical price.

9
