Diaphragm DrumPumps - 29 Pages

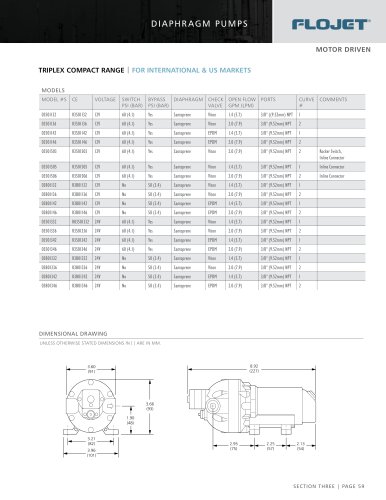

section THREE | page 59
Diaphr agm PUMPS
triplex compact range | FOR International & US MARKETS
Models
MODEL #s CE Voltage Switc h
PSI (BAR)
Bypass
PSI (BAR)
Diap hragm Check
Valve
Open Flow
GPM (LPM)
Ports Curve
#
comments
03501132 R3501132 12V 60 (4.1) Yes Santoprene Viton 1.4 (5.7) 3/8" ((9.52mm) NPT 1
03501136 R3501136 12V 60 (4.1) Yes Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2
03501142 R3501142 12V 60 (4.1) Yes Santoprene EPDM 1.4 (5.7) 3/8" (9.52mm) NPT 1
03501146 R3501146 12V 60 (4.1) Yes Santoprene EPDM 2.0 (7.9) 3/8" (9.52mm) NPT 2
03501503 R3501503 12V 60 (4.1) Yes Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2 Rocker Switch,
Inline Connector
03501505 R3501505 12V 60 (4.1) Yes Santoprene Viton 1.4 (5.7) 3/8" (9.52mm) NPT 1 Inline Connector
03501506 R3501506 12V 60 (4.1) Yes Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2 Inline Connector
03B01132 R3B01132 12V No 50 (3.4) Santoprene Viton 1.4 (5.7) 3/8" (9.52mm) NPT 1
03B01136 R3B01136 12V No 50 (3.4) Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2
03B01142 R3B01142 12V No 50 (3.4) Santoprene EPDM 1.4 (5.7) 3/8" (9.52mm) NPT 1
03B01146 R3B01146 12V No 50 (3.4) Santoprene EPDM 2.0 (7.9) 3/8" (9.52mm) NPT 2
03501332 R03501332 24V 60 (4.1) Yes Santoprene Viton 1.4 (5.7) 3/8" (9.52mm) NPT 1
03501336 R3501336 24V 60 (4.1) Yes Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2
03501342 R3501342 24V 60 (4.1) Yes Santoprene EPDM 1.4 (5.7) 3/8" (9.52mm) NPT 1
03501346 R3501346 24V 60 (4.1) Yes Santoprene EPDM 2.0 (7.9) 3/8" (9.52mm) NPT 2
03B01332 R3B01332 24V No 50 (3.4) Santoprene Viton 1.4 (5.7) 3/8" (9.52mm) NPT 1
03B01336 R3B01336 24V No 50 (3.4) Santoprene Viton 2.0 (7.9) 3/8" (9.52mm) NPT 2
03B01342 R3B01342 24V No 50 (3.4) Santoprene EPDM 1.4 (5.7) 3/8" (9.52mm) NPT 1
03B01346 R3B01346 24V No 50 (3.4) Santoprene EPDM 2.0 (7.9) 3/8" (9.52mm) NPT 2
3.60
(91)
8.92
(227)
2.95
(75)
2.25
(57)
2.13
(54)
3.21
(82)
3.96
(101)
3.66
(93)
1.90
(48)
DIMENSIONAL DRAWING
Unless ot herwise stated dimensions in [ ] are in mm .
