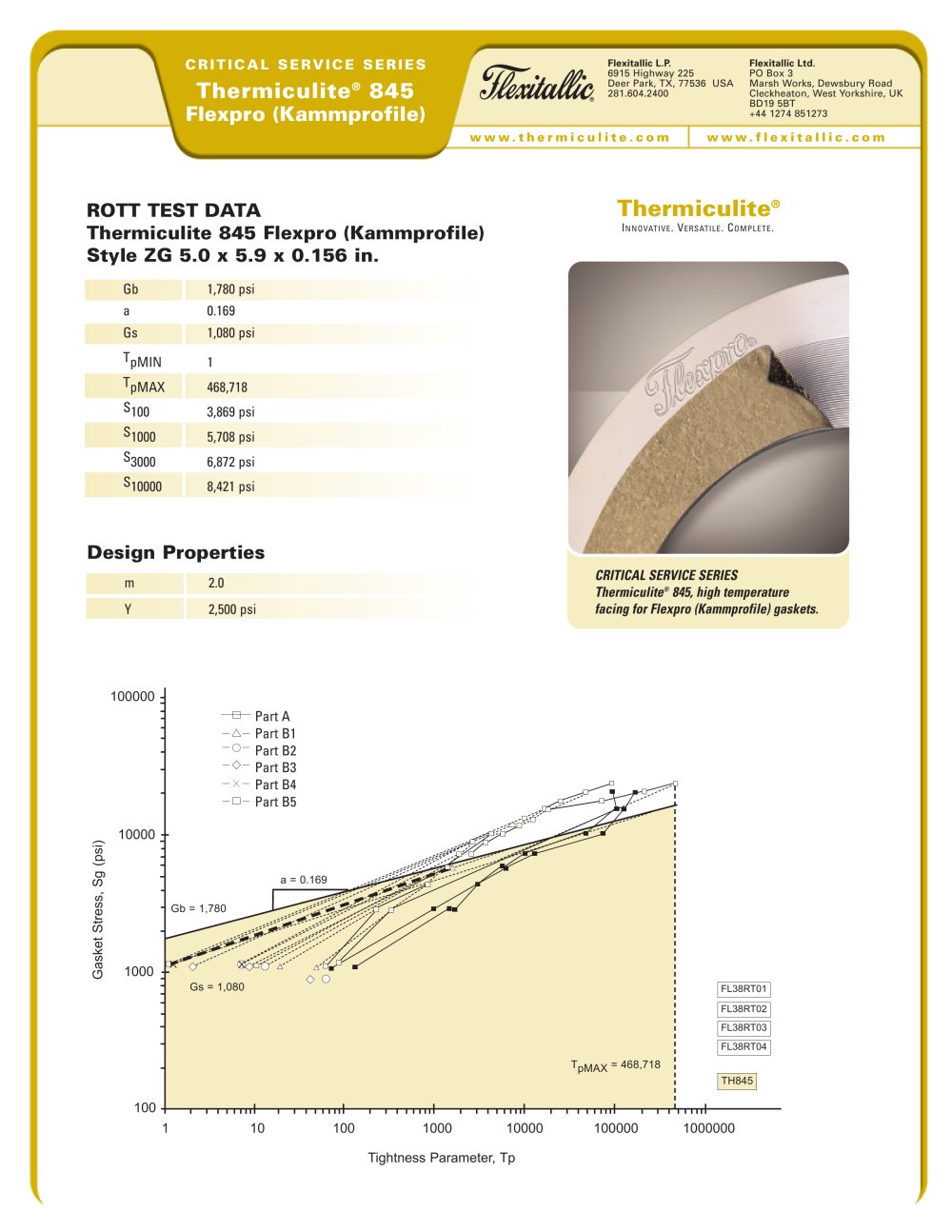

www. t h e r m i c u l i t e . c o m w w w. f l e x i t a l l i c . c o m CRITICAL SERVICE SERIES Thermiculite® 845 Flexpro (Kammprofile) CRITICAL SERVICE SERIES Thermiculite® 845, high temperature facing for Flexpro (Kammprofile) gaskets. Thermiculite® INNOVATIVE. VERSATILE. COMPLETE. Gb 1,780 psi a 0.169 Gs 1,080 psi TpMIN 1 TpMAX 468,718 S100 3,869 psi S1000 5,708 psi S3000 6,872 psi S10000 8,421 psi Tightness Parameter, Tp 1 10 100 1000 10000 100000 1000000 100000 Part A Part B1 Part B2 Part B3 Part B4 Part B5 100 10000 1000 Gasket Stress, Sg (psi) a = 0.169 Gb = 1,780 FL38RT01 FL38RT02 FL38RT03 FL38RT04 Gs = 1,080 TpMAX = 468,718 Flexitallic L.P. 6915 Highway 225 Deer Park, TX, 77536 USA 281.604.2400 Flexitallic Ltd. PO Box 3 Marsh Works, Dewsbury Road Cleckheaton, West Yorkshire, UK BD19 5BT +44 1274 851273 m 2.0 Y 2,500 psi Design Properties TH845 ROTT TEST DATA Thermiculite 845 Flexpro (Kammprofile) Style ZG 5.0 x 5.9 x 0.156 in.
