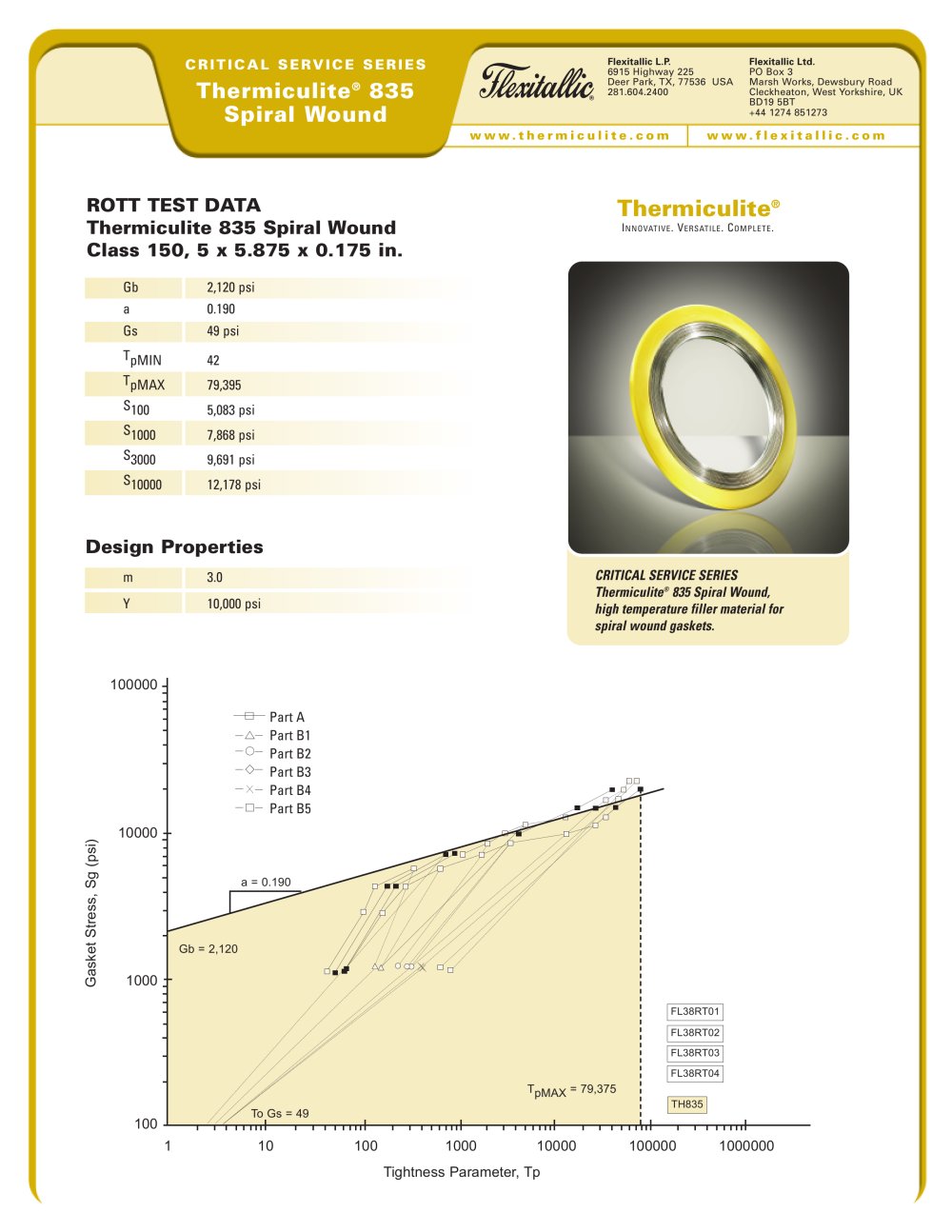

www. t h e r m i c u l i t e . c o m w w w. f l e x i t a l l i c . c o m CRITICAL SERVICE SERIES Thermiculite® 835 Spiral Wound CRITICAL SERVICE SERIES Thermiculite® 835 Spiral Wound, high temperature filler material for spiral wound gaskets. Thermiculite® INNOVATIVE. VERSATILE. COMPLETE. ROTT TEST DATA Thermiculite 835 Spiral Wound Class 150, 5 x 5.875 x 0.175 in. Gb 2,120 psi a 0.190 Gs 49 psi TpMIN 42 TpMAX 79,395 S100 5,083 psi S1000 7,868 psi S3000 9,691 psi S10000 12,178 psi m 3.0 Y 10,000 psi Tightness Parameter, Tp 1 10 100 1000 10000 100000 1000000 100000 Part A Part B1 Part B2 Part B3 Part B4 Part B5 100 10000 1000 Gasket Stress, Sg (psi) a = 0.190 Gb = 2,120 To Gs = 49 FL38RT01 FL38RT02 FL38RT03 FL38RT04 TpMAX = 79,375 Flexitallic L.P. 6915 Highway 225 Deer Park, TX, 77536 USA 281.604.2400 Flexitallic Ltd. PO Box 3 Marsh Works, Dewsbury Road Cleckheaton, West Yorkshire, UK BD19 5BT +44 1274 851273 Design Properties TH835
