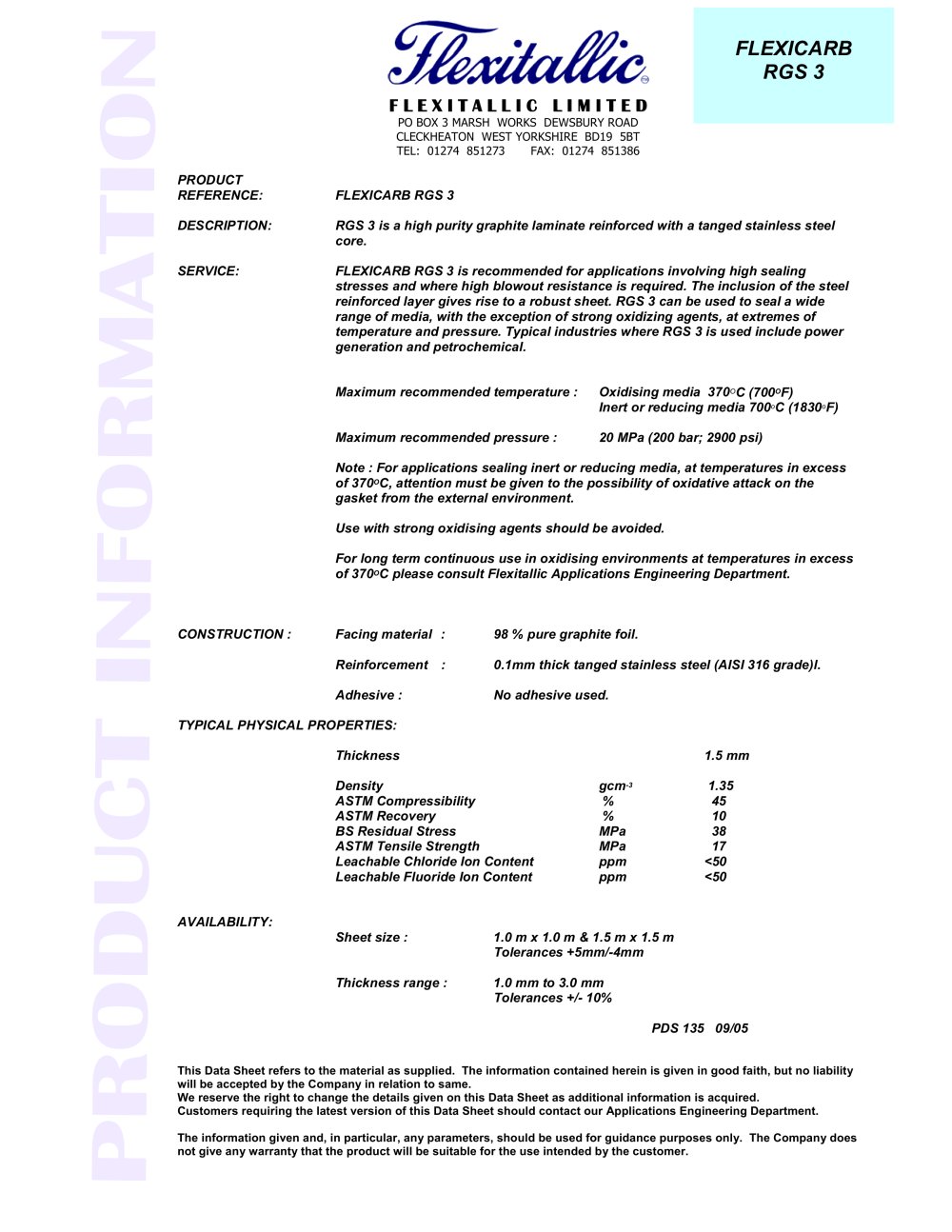

F L E X I T A L L I C L I M I T E D PO BOX 3 MARSH WORKS DEWSBURY ROAD CLECKHEATON WEST YORKSHIRE BD19 5BT TEL: 01274 851273 FAX: 01274 851386 PRODUCT REFERENCE: FLEXICARB RGS 3 DESCRIPTION: RGS 3 is a high purity graphite laminate reinforced with a tanged stainless steel core. SERVICE: FLEXICARB RGS 3 is recommended for applications involving high sealing stresses and where high blowout resistance is required. The inclusion of the steel reinforced layer gives rise to a robust sheet. RGS 3 can be used to seal a wide range of media, with the exception of strong oxidizing agents, at extremes of temperature and pressure. Typical industries where RGS 3 is used include power generation and petrochemical. Maximum recommended temperature : Oxidising media 370OC (700OF) Inert or reducing media 700oC (1830oF) Maximum recommended pressure : 20 MPa (200 bar; 2900 psi) Note : For applications sealing inert or reducing media, at temperatures in excess of 370OC, attention must be given to the possibility of oxidative attack on the gasket from the external environment. Use with strong oxidising agents should be avoided. For long term continuous use in oxidising environments at temperatures in excess of 370OC please consult Flexitallic Applications Engineering Department. CONSTRUCTION : Facing material : 98 % pure graphite foil. Reinforcement : 0.1mm thick tanged stainless steel (AISI 316 grade)l. Adhesive : No adhesive used. TYPICAL PHYSICAL PROPERTIES: Thickness 1.5 mm Density gcm-3 1.35 ASTM Compressibility % 45 ASTM Recovery % 10 BS Residual Stress MPa 38 ASTM Tensile Strength MPa 17 Leachable Chloride Ion Content ppm <50 Leachable Fluoride Ion Content ppm <50 AVAILABILITY: Sheet size : 1.0 m x 1.0 m & 1.5 m x 1.5 m Tolerances +5mm/-4mm Thickness range : 1.0 mm to 3.0 mm Tolerances +/- 10% PDS 135 09/05 This Data Sheet refers to the material as supplied. The information contained herein is given in good faith, but no liability will be accepted by the Company in relation to same. We reserve the right to change the details given on this Data Sheet as additional information is acquired. Customers requiring the latest version of this Data Sheet should contact our Applications Engineering Department. The information given and, in particular, any parameters, should be used for guidance purposes only. The Company does not give any warranty that the product will be suitable for the use intended by the customer. FLEXICARB RGS 3
