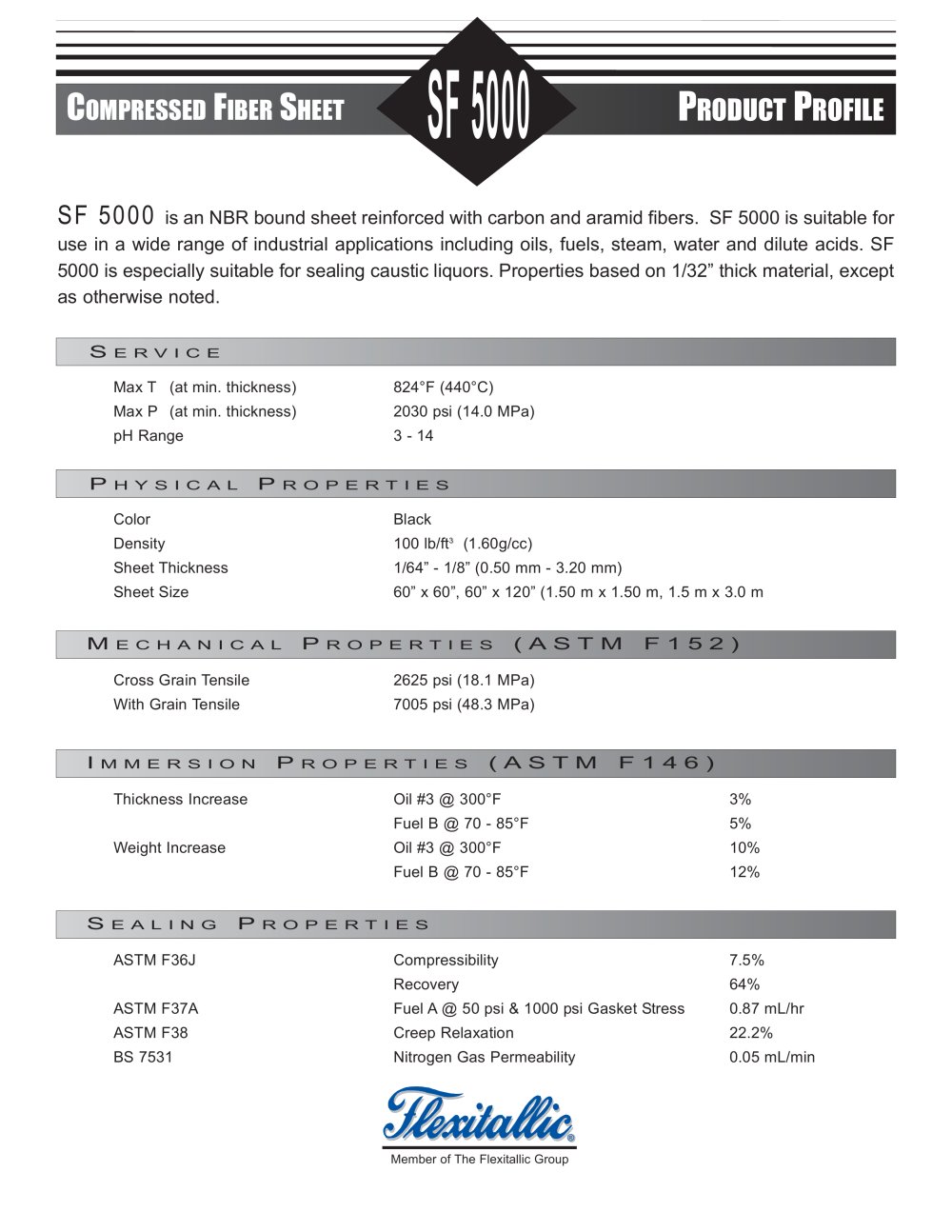

® Member of The Flexitallic Group COMPRESSED FIBER SHEET SF 5000 PRODUCT PROFILE SF 5000 is an NBR bound sheet reinforced with carbon and aramid fibers. SF 5000 is suitable for use in a wide range of industrial applications including oils, fuels, steam, water and dilute acids. SF 5000 is especially suitable for sealing caustic liquors. Properties based on 1/32” thick material, except as otherwise noted. S E R V I C E P H Y S I C A L P R O P E R T I E S M E C H A N I C A L P R O P E R T I E S ( A S T M F 1 5 2 ) I M M E R S I O N P R O P E R T I E S ( A S T M F 1 4 6 ) S E A L I N G P R O P E R T I E S Max T (at min. thickness) 824°F (440°C) Max P (at min. thickness) 2030 psi (14.0 MPa) pH Range 3 - 14 Color Black Density 100 lb/ft33 (1.60g/cc) Sheet Thickness 1/64” - 1/8” (0.50 mm - 3.20 mm) Sheet Size 60” x 60”, 60” x 120” (1.50 m x 1.50 m, 1.5 m x 3.0 m Cross Grain Tensile 2625 psi (18.1 MPa) With Grain Tensile 7005 psi (48.3 MPa) Thickness Increase Oil #3 @ 300°F 3% Fuel B @ 70 - 85°F 5% Weight Increase Oil #3 @ 300°F 10% Fuel B @ 70 - 85°F 12% ASTM F36J Compressibility 7.5% Recovery 64% ASTM F37A Fuel A@ 50 psi & 1000 psi Gasket Stress 0.87 mL/hr ASTM F38 Creep Relaxation 22.2% BS 7531 Nitrogen Gas Permeability 0.05 mL/min
