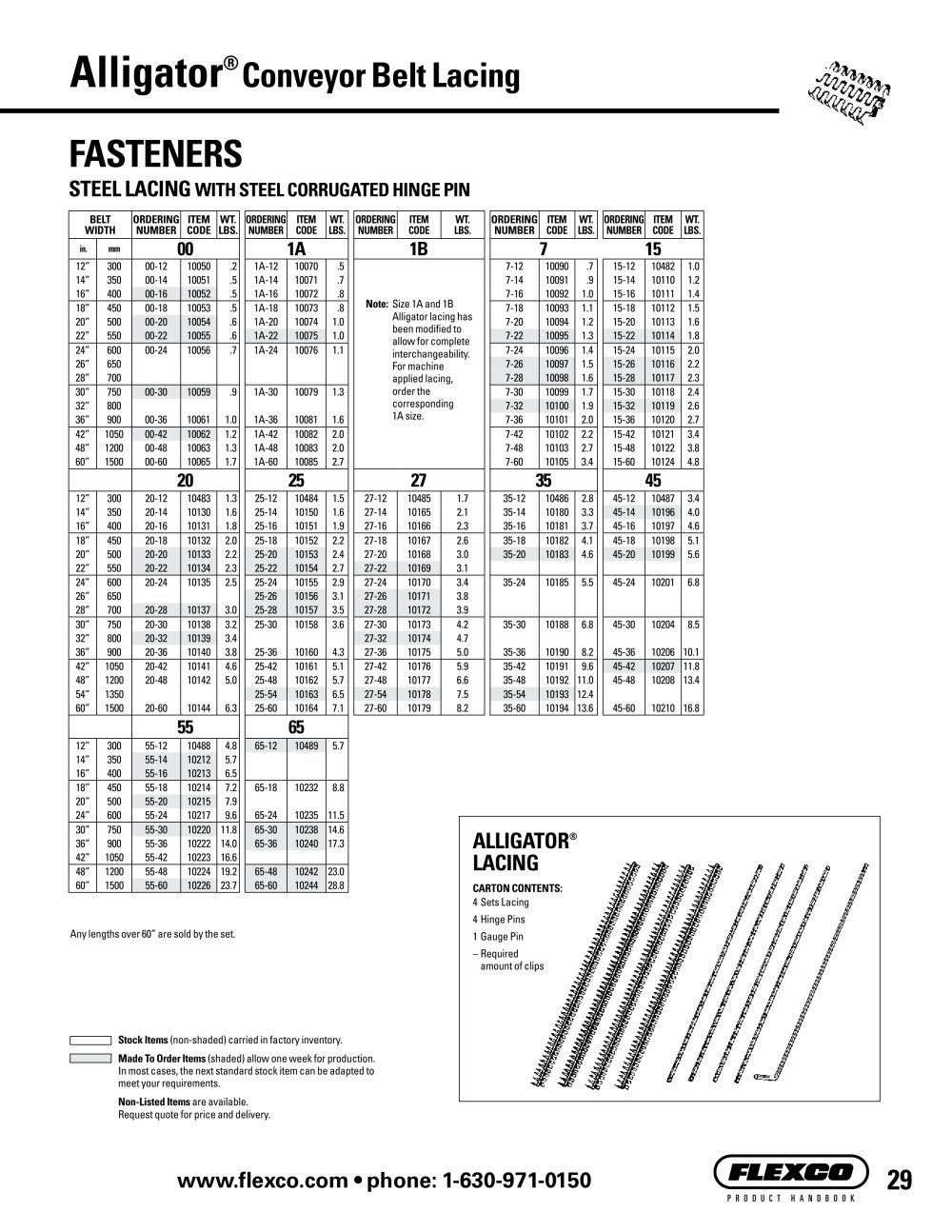

Alligator® Conveyor Belt Lacing

FASTENERS

STEEL LACING WITH STEEL CORRUGATED HINGE PIN


BELT		ORDERING	ITEM	WT.	ORDERING	ITEM	WT.	ORDERING		ITEM	WT.		ORDERING	ITEM	WT.	ORDERING	ITEM	WT.
WIDTH		NUMBER	CODE	LBS.	NUMBER	CODE	LBS.	NUMBER		CODE	LBS.		NUMBER	CODE	LBS.	NUMBER	CODE	LBS.
in.	mm	00			1A			1B						7			15
12"	300	00-12	10050	.2	1A-12	10070	.5						7-12	10090	.7	15-12	10482	1.0
14"	350	00-14	10051	.5	1A-14	10071	.7						7-14	10091	.9	15-14	10110	1.2
16"	400	00-16	10052	.5	1A-16	10072	.8						7-16	10092	1.0	15-16	10111	1.4
18"	450	00-18	10053	.5	1A-18	10073	.8	Note: Size 1Aand IB					7-18	10093	1.1	15-18	10112	1.5
20"	500	00-20	10054	.6	1A-20	10074	1.0		Aingaior lacing nas been modified to				7-20	10094	1.2	15-20	10113	1.6
22"	550	00-22	10055	.6	1A-22	10075	1.0		allnw fnr rnmnloto				7-22	10095	1.3	15-22	10114	1.8
24"	600	00-24	10056	.7	1A-24	10076	1.1		allow ioi coiiiuieie interchangeability.				7-24	10096	1.4	15-24	10115	2.0
26"	650								Formachine				7-26	10097	1.5	15-26	10116	2.2
28"	700								applied lacing,				7-28	10098	1.6	15-28	10117	2.3
30"	750	00-30	10059	.9	1A-30	10079	1.3		order the				7-30	10099	1.7	15-30	10118	2.4
32"	800								corresponding				7-32	10100	1.9	15-32	10119	2.6
36"	900	00-36	10061	1.0	1A-36	10081	1.6		1A size.				7-36	10101	2.0	15-36	10120	2.7
42"	1050	00-42	10062	1.2	1A-42	10082	2.0						7-42	10102	2.2	15-42	10121	3.4
48"	1200	00-48	10063	1.3	1A-48	10083	2.0						7-48	10103	2.7	15-48	10122	3.8
60"	1500	00-60	10065	1.7	1A-60	10085	2.7						7-60	10105	3.4	15-60	10124	4.8
		20			25			27					35			45
12"	300	20-12	10483	1.3	25-12	10484	1.5	27-12		10485	1.7		35-12	10486	2.8	45-12	10487	3.4
14"	350	20-14	10130	1.6	25-14	10150	1.6	27-14		10165	2.1		35-14	10180	3.3	45-14	10196	4.0
16"	400	20-16	10131	1.8	25-16	10151	1.9	27-16		10166	2.3		35-16	10181	3.7	45-16	10197	4.6
18"	450	20-18	10132	2.0	25-18	10152	2.2	27-18		10167	2.6		35-18	10182	4.1	45-18	10198	5.1
20"	500	20-20	10133	2.2	25-20	10153	2.4	27-20		10168	3.0		35-20	10183	4.6	45-20	10199	5.6
22"	550	20-22	10134	2.3	25-22	10154	2.7	27-22		10169	3.1
24"	600	20-24	10135	2.5	25-24	10155	2.9	27-24		10170	3.4		35-24	10185	5.5	45-24	10201	6.8
26"	650				25-26	10156	3.1	27-26		10171	3.8
28"	700	20-28	10137	3.0	25-28	10157	3.5	27-28		10172	3.9
30"	750	20-30	10138	3.2	25-30	10158	3.6	27-30		10173	4.2		35-30	10188	6.8	45-30	10204	8.5
32"	800	20-32	10139	3.4				27-32		10174	4.7
36"	900	20-36	10140	3.8	25-36	10160	4.3	27-36		10175	5.0		35-36	10190	8.2	45-36	10206	10.1
42"	1050	20-42	10141	4.6	25-42	10161	5.1	27-42		10176	5.9		35-42	10191	9.6	45-42	10207	11.8
48"	1200	20-48	10142	5.0	25-48	10162	5.7	27-48		10177	6.6		35-48	10192	11.0	45-48	10208	13.4
54"	1350				25-54	10163	6.5	27-54		10178	7.5		35-54	10193	12.4
60"	1500	20-60	10144	6.3	25-60	10164	7.1	27-60		10179	8.2		35-60	10194	13.6	45-60	10210	16.8
		55			65
12"	300	55-12	10488	4.8	65-12	10489	5.7
14"	350	55-14	10212	5.7
16"	400	55-16	10213	6.5
18"	450	55-18	10214	7.2	65-18	10232	8.8
20"	500	55-20	10215	7.9
24"	600	55-24	10217	9.6	65-24	10235	11.5											_
30"	750	55-30	10220	11.8	65-30	10238	14.6
36"	900	55-36	10222	14.0	65-36	10240	17.3					ALLIGATORS
42"	1050	55-42	10223	16.6								lACING
48"	1200	55-48	10224	19.2	65-48	10242	23.0					LACING
60"	1500	55-60	10226	23.7	65-60	10244	28.8					CARTON CONTENTS:				is? ,

4 Sets Lacing

4 Hinge Pins

1 Gauge Pin

- Required amount of clips

Any lengths over60" are sold by the set.

Stock Items (non-shaded) carried In factory Inventory.

Made To Order Items (shaded) allow one week for production. In most cases, the next standard stock Item can be adapted to meetyour requirements.

Non-Listed Items are available. Requestquote forprlce and delivery.
