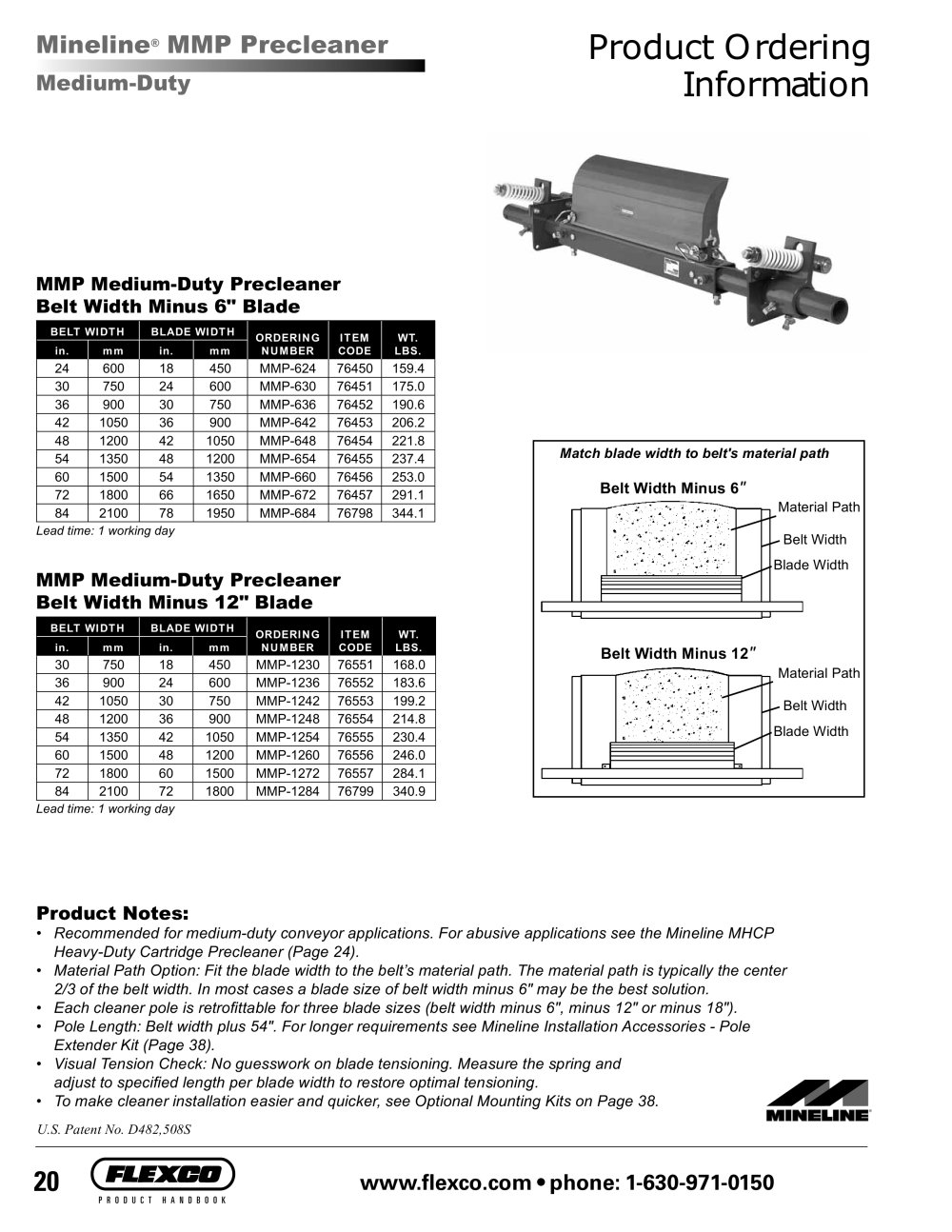

Mineline MMP Precleaner

Belt Conveyor Products Handbook - 14800 Product OrderinInformation

Medium-Duty MMP Medium-Duty Precleanerelt idth Minus lade Product otes

BELT WIDTHBLADE WIDTHORDERINGNUMBERITEMCODEWT.LBS.in.mmin.mm 2460018450MMP-62476450 159.4 3075024600MMP-63076451 175.0 3690030750MMP-63676452 190.6 42105036900MMP-64276453 206.2 481200421050MMP-64876454 221.8 541350481200MMP-65476455 237.4 601500541350MMP-66076456 253.0 721800661650MMP-67276457 291.1 842100781950MMP-68476798 344.1

Belt Width Minus 6

Match blade width to belt's material path

"

Material PathBelt WidthBlade Width
Lead time: 1 working day

MMP Medium-Duty Precleanerelt idth Minus lade

BELT WIDTHBLADE WIDTHORDERINGNUMBERITEMCODEWT. LBS.in.mmin.mm 3075018450MMP-123076551 168.0 3690024600MMP-123676552 183.6 42105030750MMP-124276553 199.2 48120036900MMP-124876554 214.8 541350421050MMP-125476555 230.4 601500481200MMP-126076556 246.0 721800601500MMP-127276557 284.1 842100721800MMP-128476799 340.9

Belt Width Minus 12

"

Material PathBelt Width Blade Width
Lead time: 1 working day

? Recommended for medium-duty conveyor applications. For abusive applications see the Mineline MHCP Heavy-Duty Cartridge Precleaner (Page 24).? Material Path Option: Fit the blade width to the belt’s material path. The material path is typically the center 2/3 of the belt width. In most cases a blade size of belt width minus 6" may be the best solution. ? Each cleaner pole is retrofi ttable for three blade sizes (belt width minus 6", minus 12" or minus 18"). ? Pole Length: Belt width plus 54". For longer requirements see Mineline Installation Accessories - Pole Extender Kit (Page 38).? Visual Tension Check: No guesswork on blade tensioning. Measure the spring and adjust to specifi ed length per blade width to restore optimal tensioning. ? To make cleaner installation easier and quicker, see Optional Mounting Kits on Page 38.

® U.S. Patent No. D482,508S

20
