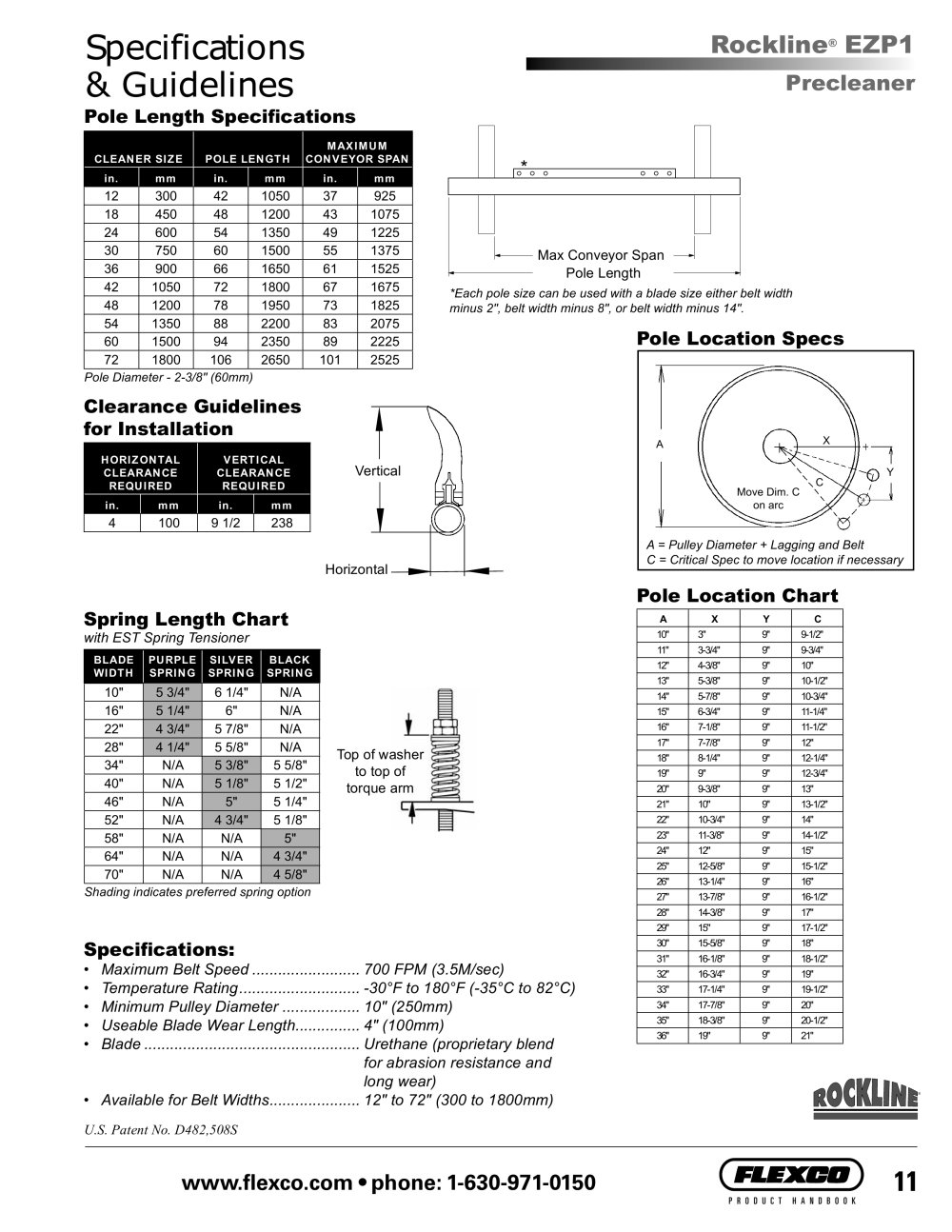

Specifications Guidelines
Pole ength Speci cations
Rockline E P Precleaner
CLEANER SI E
OLE LENGTH
MA I CON E
MUM
OR S AN
in.
mm
in.
mm
in.
mm
12
300
42
1050
37
925
18
450
48
1200
43
1075
24
600
54
1350
49
1225
30
750
60
1500
55
1375
36
900
66
1650
61
1525
42
1050
72
1800
67
1675
48
1200
78
1950
73
1825
54
1350
88
2200
83
2075
60
1500
94
2350
89
2225
72
1800
106
2650
101
2525
|ooo
h-Max Conveyor Span
- Pole Length
*Each pole size can be used with a blade size either belt width minus 2", belt width minus 8", or belt width minus 14".
Pole ocation Specs
Pole Diameter - 2-3/8" (60mm)
Clearance uidelines for Installation
HORI ON TAL CLEARANCE RE UIRED
ERTICAL CLEARANCE
RE UIRED
in.
mm
in.
mm
Vertical
4 100 9 1/2 238
Horizontal
Pole ocation Chart
A
X
Y
C
10"
3"
9"
9-1/2"
11"
3-3/4"
9"
9-3/4"
12"
4-3/8"
9"
10"
13"
5-3/8"
9"
10-1/2"
14"
5-7/8"
9"
10-3/4"
15"
6-3/4"
9"
11-1/4"
16"
7-1/8"
9"
11-1/2"
17"
7-7/8"
9"
12"
18"
8-1/4"
9"
12-1/4"
19"
9"
9"
12-3/4"
20"
9-3/8"
9"
13"
21"
10"
9"
13-1/2"
22"
10-3/4"
9"
14"
23"
11-3/8"
9"
14-1/2"
24"
12"
9"
15"
25"
12-5/8"
9"
15-1/2"
26"
13-1/4"
9"
16"
27"
13-7/8"
9"
16-1/2"
28"
14-3/8"
9"
17"
29"
15"
9"
17-1/2"
30"
15-5/8"
9"
18"
31"
16-1/8"
9"
18-1/2"
32"
16-3/4"
9"
19"
33"
17-1/4"
9"
19-1/2"
34"
17-7/8"
9"
20"
35"
18-3/8"
9"
20-1/2"
36"
19"
9"
21"
Spring ength Chart
with EST Spring Tensioner
BLADE WIDTH
mm
BLAC S RING
10"
5 3/4"
6 1/4"
n/a
16"
5 1/4"
6"
n/a
22"
4 3/4"
5 7/8"
n/a
28"
4 1/4"
5 5/8"
n/a
34"
n/a
5 3/8"
5 5/8"
40"
n/a
5 1/8"
5 1/2"
46"
n/a
5"
5 1/4"
52"
n/a
4 3/4"
5 1/8"
58"
n/a
n/a
5"
64"
n/a
n/a
4 3/4"
70"
n/a
n/a
4 5/8"
Top of washer to top of torque arm
Shading indicates preferred spring option
Speci cations
• Maximum Belt Speed......................... 700 FPM (3.5M/sec)
• Temperature Rating............................-30°F to 180°F (-35°C to 82°C)
• Minimum Pulley Diameter..................10" (250mm)
• Useable Blade Wear Length...............4" (100mm)
• Blade..................................................Urethane (proprietary blend
for abrasion resistance and long wear)
• Available for Belt Widths.....................12" to 72" (300 to 1800mm)
U.S. Patent No. D482,508S
