General Temperature and Pressure Applications

Application Products

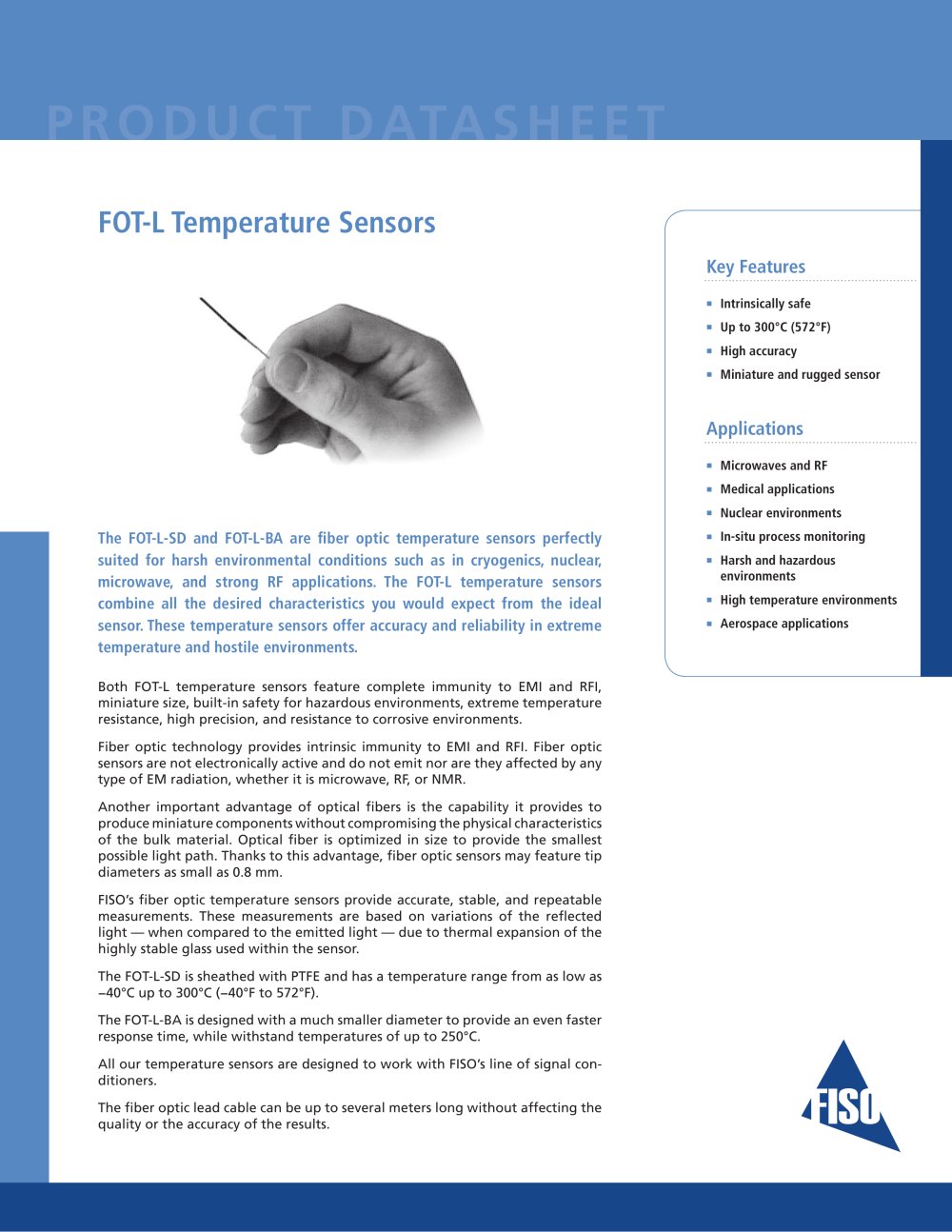

FOT-L Temperature sensor FOP-M Pressure sensor FPI-HR module EVOLUTION chassis

Key Features

High accuracy Up to 250 Hz sampling rate Temperature-compensated modules

Specifi cations

TEMPERATURE – FOT-L PRESSURE – FOP-MMeasuring range −10°C to 120°C R1: 0 to 5 psi / R2: 0 to 50 psi R3: 0 to 150 psi / R4: 0 to 1000 psi Temperature operating range SD: −40°C to 300°C −20°C to 150°C BA: −40°C to 250°C
Sensor Response time
1 <1.5s — Accuracy
2 R4: ±0.25°C / R5: ±0.40°C ±0.5% of full scale Resolution 0.01°C 0.05% of full scale Sampling rate Up to 250 Hz per module Up to 250 Hz per module Power consumption 5 Watts 5 Watts Analog output (Optional) 0 to 5V or 4–20 mA / 16 bits resolution 0 to 5V or 4–20 mA / 16 bits resolution Operating temperature 10ºC to 50ºC 10ºC to 50ºC Storage temperature −30ºC to 80ºC −30ºC to 80ºC Connector SCAI
3 , SCA (ST optional) SCAI
3 , SCA (ST optional)
FPI-HR Module Fiber core size 62.5/125µm (50/125µm optional) 62.5/125µm (50/125µm optional) Number of channel(s) 1 or 2 1 or 2 Communication / Evolution chassis USB via EVO chassis / TS 35 DIN RAIL USB via EVO chassis / TS 35 DIN RAIL Communication/OEM RS-232 / RS-485 RS-232 / RS-485 LED sensor signal and communication diagnostic Yes Yes
1. Time required to reach 63% of a temperature step.2. Includes reproducibility (sensor/module exchange), repeatability and hysteresis, non-linearity, scale error, offset error, conditioner temperature compensation error. Pressure: Accuracy at room temperature. 3. SCAI is an SCA connector with smart chip communicating calibration data to signal conditioner module. Temperature: Accuracy of ±0.25°C can be achieved using the 25°C to 45°C calibration. Accuracy of ±0.40°C can be achieved using the −10°C to 120°C calibration.
