| Positive displacement screw | ||||||||||||||||||||||||||||||
| Ol > | ||||||||||||||||||||||||||||||

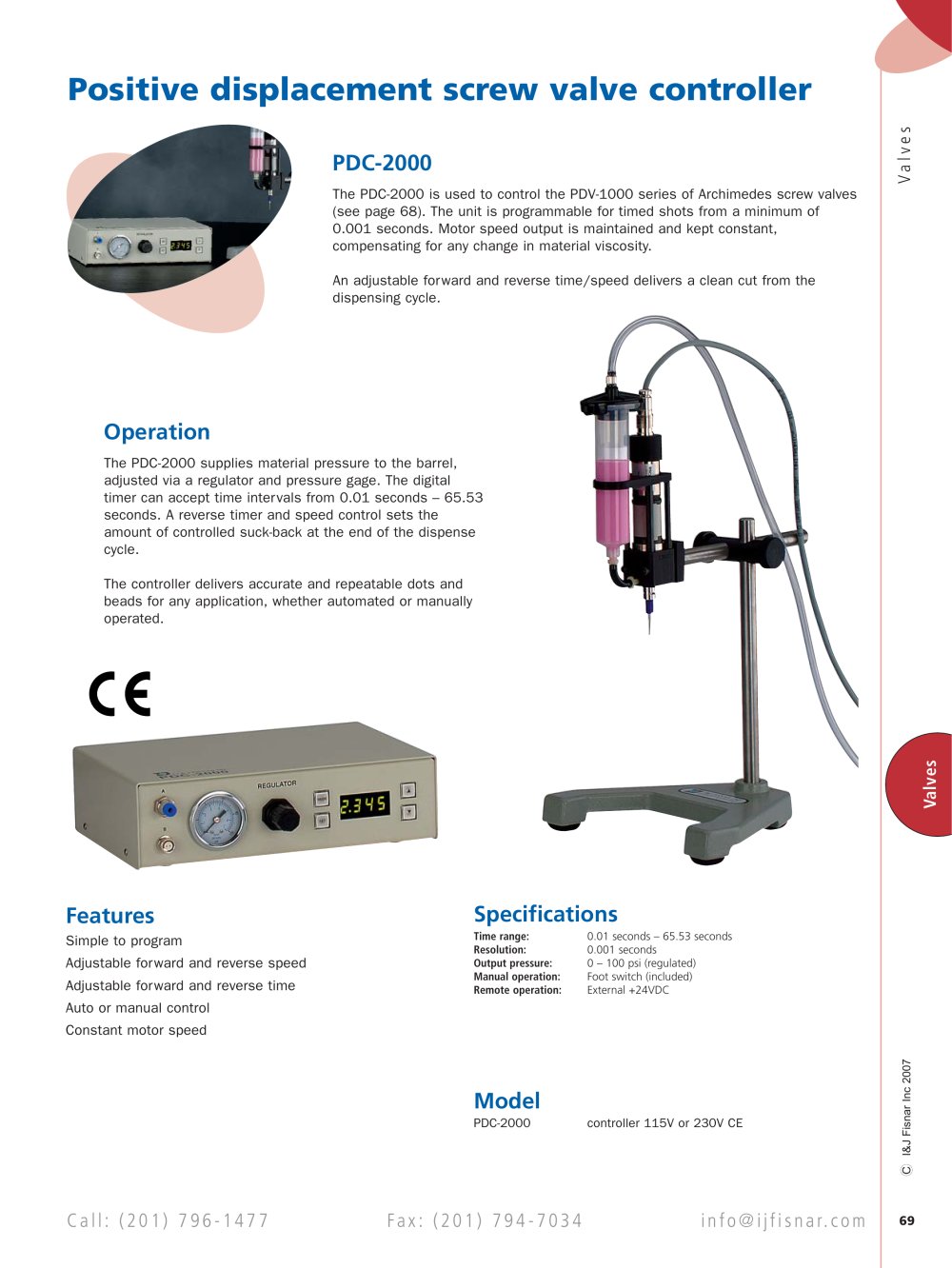

| PDC-2000 The PDC-2000 is used to control the PDV-1000 series of Archimedes screw valves (see page 68). The unit is programmable for timed shots from a minimum of 0.001 seconds. Motor speed output is maintained and kept constant, compensating for any change in material viscosity. An adjustable forward and reverse time/speed delivers a clean cut from the dispensing cycle. | ||||||||||||||||||||||||||||||
| > | ||||||||||||||||||||||||||||||
| The PDC-2000 supplies material pressure to the barrel, adjusted via a regulator and pressure gage. The digital timer can accept time intervals from 0.01 seconds - 65.53 seconds. A reverse timer and speed control sets the amount of controlled suck-back at the end of the dispense cycle. The controller delivers accurate and repeatable dots and beads for any application, whether automated or manually operated. | ||||||||||||||||||||||||||||||
| 1 | ||||||||||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||||||||||
| Features Simple to program Adjustable forward and reverse speed Adjustable forward and reverse time Auto or manual control Constant motor speed | ||||||||||||||||||||||||||||||
| Time range: Resolution: Output pressure: Manual operation: Remote operation: | 0.01 seconds - 65.53 seconds 0.001 seconds 0 - 100 psi (regulated) Foot switch (included) External +24VDC | |||||||||||||||||||||||||||||
| r-- o o CM o _c TO Ll © | ||||||||||||||||||||||||||||||
| Model PDC-2000 | ||||||||||||||||||||||||||||||
| controller 115V or 230V CE | ||||||||||||||||||||||||||||||
| info@ijfisnar.com | ||||||||||||||||||||||||||||||
| ix: (201 ) 794-7034 | ||||||||||||||||||||||||||||||
| 69 | ||||||||||||||||||||||||||||||
