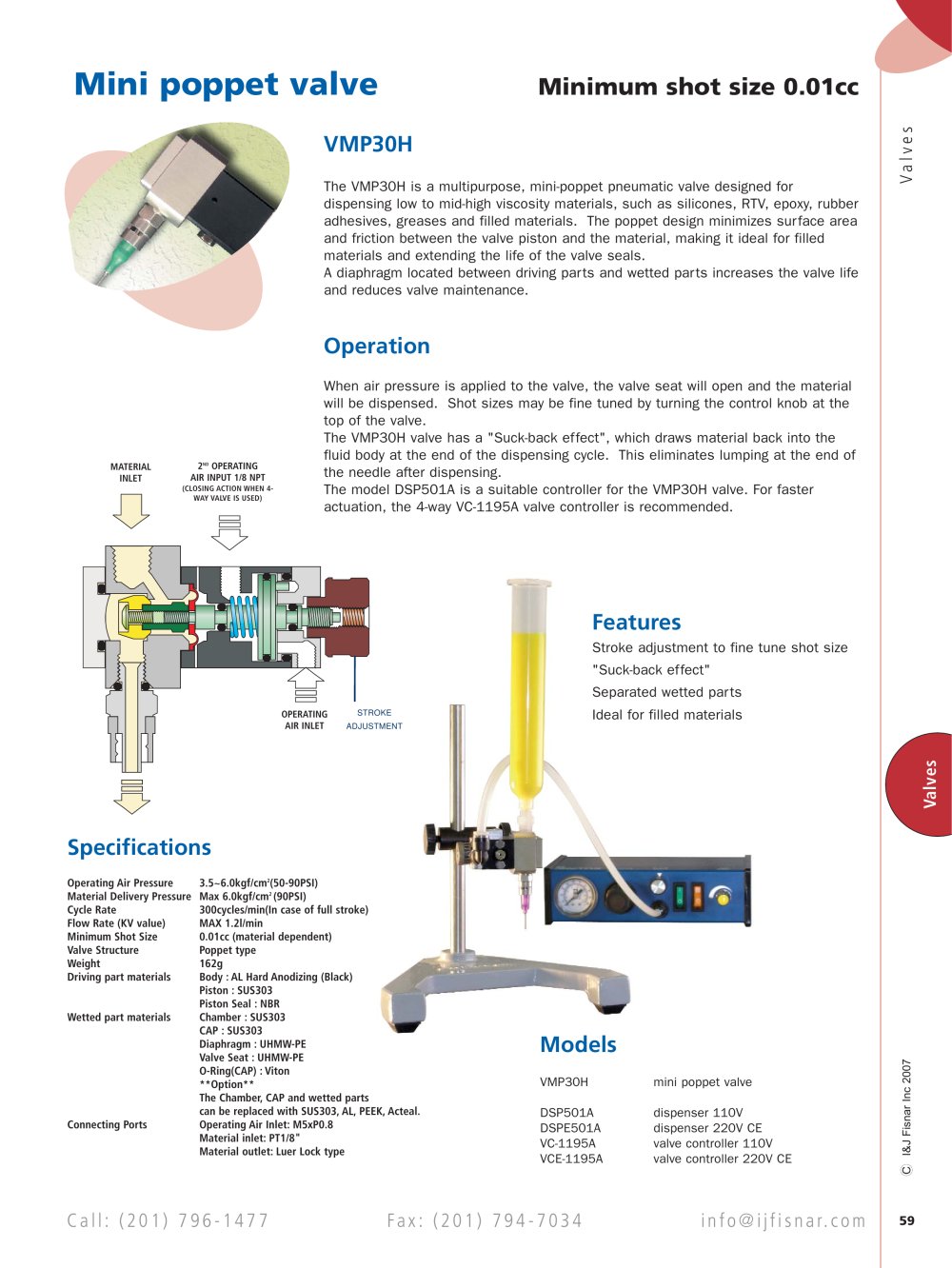

| The VMP30H is a multipurpose, mini-poppet pneumatic valve designed for dispensing low to mid-high viscosity materials, such as silicones, RTV, epoxy, rubber adhesives, greases and filled materials. The poppet design minimizes surface area and friction between the valve piston and the material, making it ideal for filled materials and extending the life of the valve seals. A diaphragm located between driving parts and wetted parts increases the valve life and reduces valve maintenance. | ||||||||||||||||||||||||||||||||||||||||||
| Operation | ||||||||||||||||||||||||||||||||||||||||||
| When air pressure is applied to the valve, the valve seat will open and the material will be dispensed. Shot sizes may be fine tuned by turning the control knob at the top of the valve. The VMP30H valve has a "Suck-back effect", which draws material back into the fluid body at the end of the dispensing cycle. This eliminates lumping at the end of the needle after dispensing. The model DSP501A is a suitable controller for the VMP30H valve. For faster actuation, the 4-way VC-1195A valve controller is recommended. | ||||||||||||||||||||||||||||||||||||||||||
| 2nd OPERATING AIR INPUT 1/8 NPT (CLOSING ACTION WHEN 4-WAY VALVE IS USED) | ||||||||||||||||||||||||||||||||||||||||||
| MATERIAL | ||||||||||||||||||||||||||||||||||||||||||
| NLET | ||||||||||||||||||||||||||||||||||||||||||
| Features Stroke adjustment to fine tune shot size "Suck-back effect" Separated wetted parts Ideal for filled materials | ||||||||||||||||||||||||||||||||||||||||||
| OPERATING stroke AIR INLET adjustment | ||||||||||||||||||||||||||||||||||||||||||
| 1 | ||||||||||||||||||||||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||||||||||||||||||||||
| Operating Air Pressure Material Delivery Pressure Cycle Rate Flow Rate (KV value) Minimum Shot Size Valve Structure Weight Driving part materials | 3.5~6.0kgf/cm2(50-90PSI) Max 6.0kgf/cm2 (90PSI) 300cydes/inin(In case of full stroke) MAX 1.2l/min 0.01cc (material dependent) Poppet type 162g Body : AL Hard Anodizing (Black) Piston : SUS303 Piston Seal : NBR Chamber : SUS303 VI CAP : SUS303 Diaphragm : UHMW-PE Valve Seat : UHMW-PE O-Ring(CAP) : Viton "Option** The Chamber, CAP and wetted parts can be replaced with SUS303, AL, PEEK, Acteal. Operating Air Inlet: M5xP0.8 Material inlet: PT1/8" Material outlet: Luer Lock type | |||||||||||||||||||||||||||||||||||||||||
| Wetted part materials | ||||||||||||||||||||||||||||||||||||||||||
| Models VMP30H DSP501A DSPE501A VC-1195A VCE-1195A | ||||||||||||||||||||||||||||||||||||||||||
| r-- o o CM o _c TO ll © | ||||||||||||||||||||||||||||||||||||||||||
| mini poppet valve dispenser 110V dispenser 220V CE valve controller 110V valve controller 220V CE | ||||||||||||||||||||||||||||||||||||||||||
