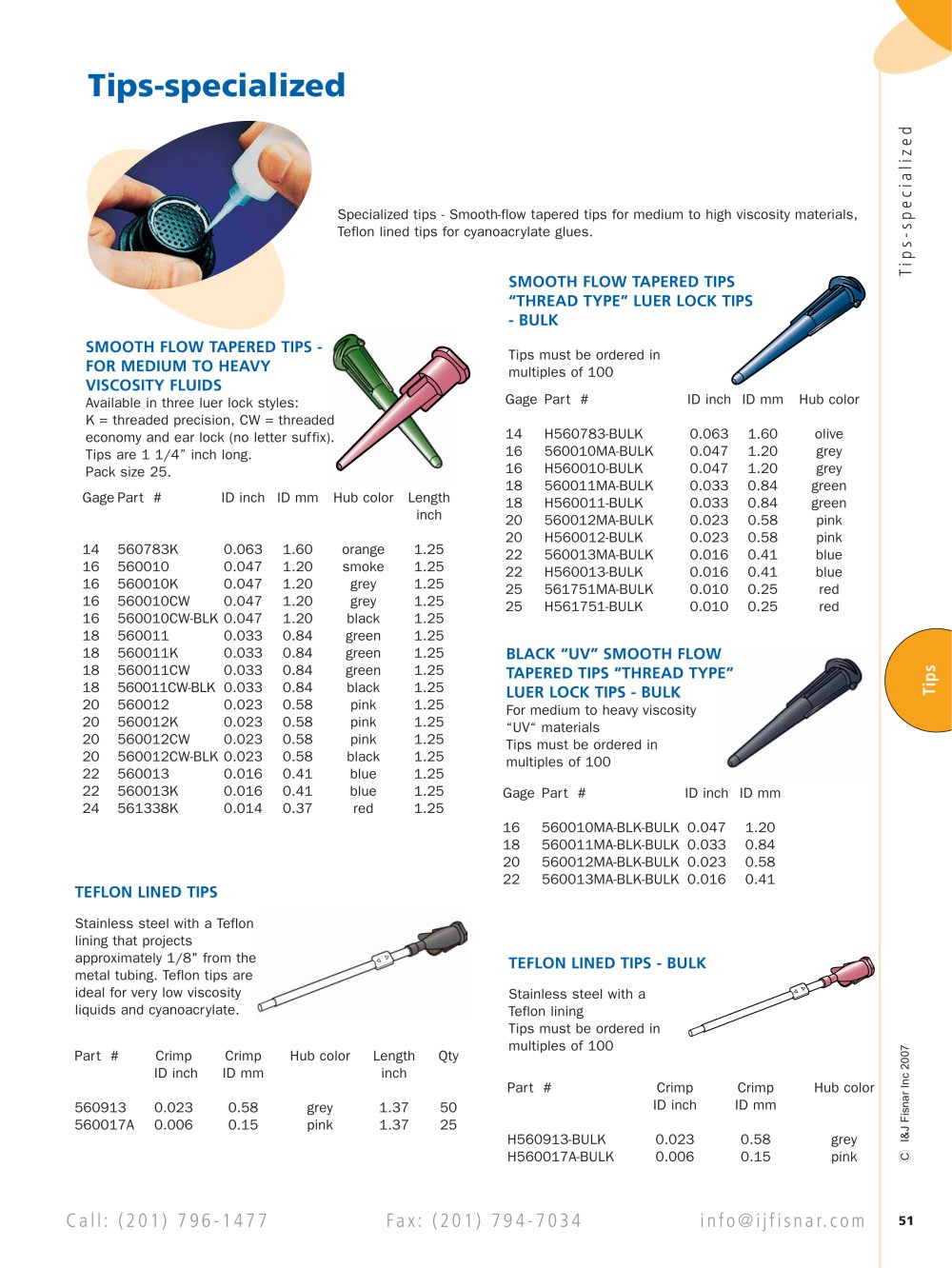

Specialized tips - Smooth-flow tapered tips for medium to high viscosity materials, Teflon lined tips for cyanoacrylate glues.

SMOOTH FLOW TAPERED TIPS "THREAD TYPE" LUER LOCK TIPS - BULK

SMOOTH FLOW TAPERED TIPS FOR MEDIUM TO HEAVY VISCOSITY FLUIDS

Available in three luer lock styles: K = threaded precision, CW = threaded economy and ear lock (no letter suffix). Tips are 1 1/4" inch long. Pack size 25.

Tips must be ordered in multiples of 100

Gage Part #

ID inch ID mm Hub color


14	H560783-BULK	0	.063	1.60	olive
16	560010MA-BULK	0	.047	1.20	grey
16	H560010-BULK	0	.047	1.20	grey
18	560011MA-BULK	0	.033	0.84	green
18	H560011-BULK	0	.033	0.84	green
20	560012MA-BULK	0	.023	0.58	pink
20	H560012-BULK	0	.023	0.58	pink
22	560013MA-BULK	0	.016	0.41	blue
22	H560013-BULK	0	.016	0.41	blue
25	561751MA-BULK	0	.010	0.25	red
25	H561751-BULK	0	.010	0.25	red

Gage Part #

ID inch ID mm Hub color

Length inch


14	560783K	0	.063	1.60	orange	1.25
16	560010	0	.047	1.20	smoke	1.25
16	560010K	0	.047	1.20	grey	1.25
16	560010CW	0	.047	1.20	grey	1.25
16	560010CW-BLK	0	.047	1.20	black	1.25
18	560011	0	.033	0.84	green	1.25
18	560011K	0	.033	0.84	green	1.25
18	560011CW	0	.033	0.84	green	1.25
18	560011CW-BLK	0	.033	0.84	black	1.25
20	560012	0	.023	0.58	pink	1.25
20	560012K	0	.023	0.58	pink	1.25
20	560012CW	0	.023	0.58	pink	1.25
20	560012CW-BLK	0	.023	0.58	black	1.25
22	560013	0	.016	0.41	blue	1.25
22	560013K	0	.016	0.41	blue	1.25
24	561338K	0	.014	0.37	red	1.25

BLACK "UV" SMOOTH FLOW TAPERED TIPS "THREAD TYPE LUER LOCK TIPS - BULK

For medium to heavy viscosity "UV" materials Tips must be ordered in multiples of 100

Gage Part # ID inch ID mm

16 560010MA-BLK-BULK 0.047 1.20

18 560011MA-BLK-BULK 0.033 0.84

20 560012MA-BLK-BULK 0.023 0.58

22 560013MA-BLK-BULK 0.016 0.41

Stainless steel with a Teflon lining that projects approximately 1/8" from the metal tubing. Teflon tips are ideal for very low viscosity liquids and cyanoacrylate.

TEFLON LINED TIPS - BULK

Stainless steel with a Teflon lining

Tips must be ordered in multiples of 100

Part #

Crimp ID inch

0.023 0.006

Crimp ID mm

0.58 0.15

Hub color

Length inch

1.37 1.37

Qty

Part #

Crimp ID inch

0.023 0.006

Crimp ID mm

0.58 0.15

Hub color

560913 560017A

50 25

grey pink

H560913-BULK H560017A-BULK

grey pink

¡nfo@iifisnar.com

034
