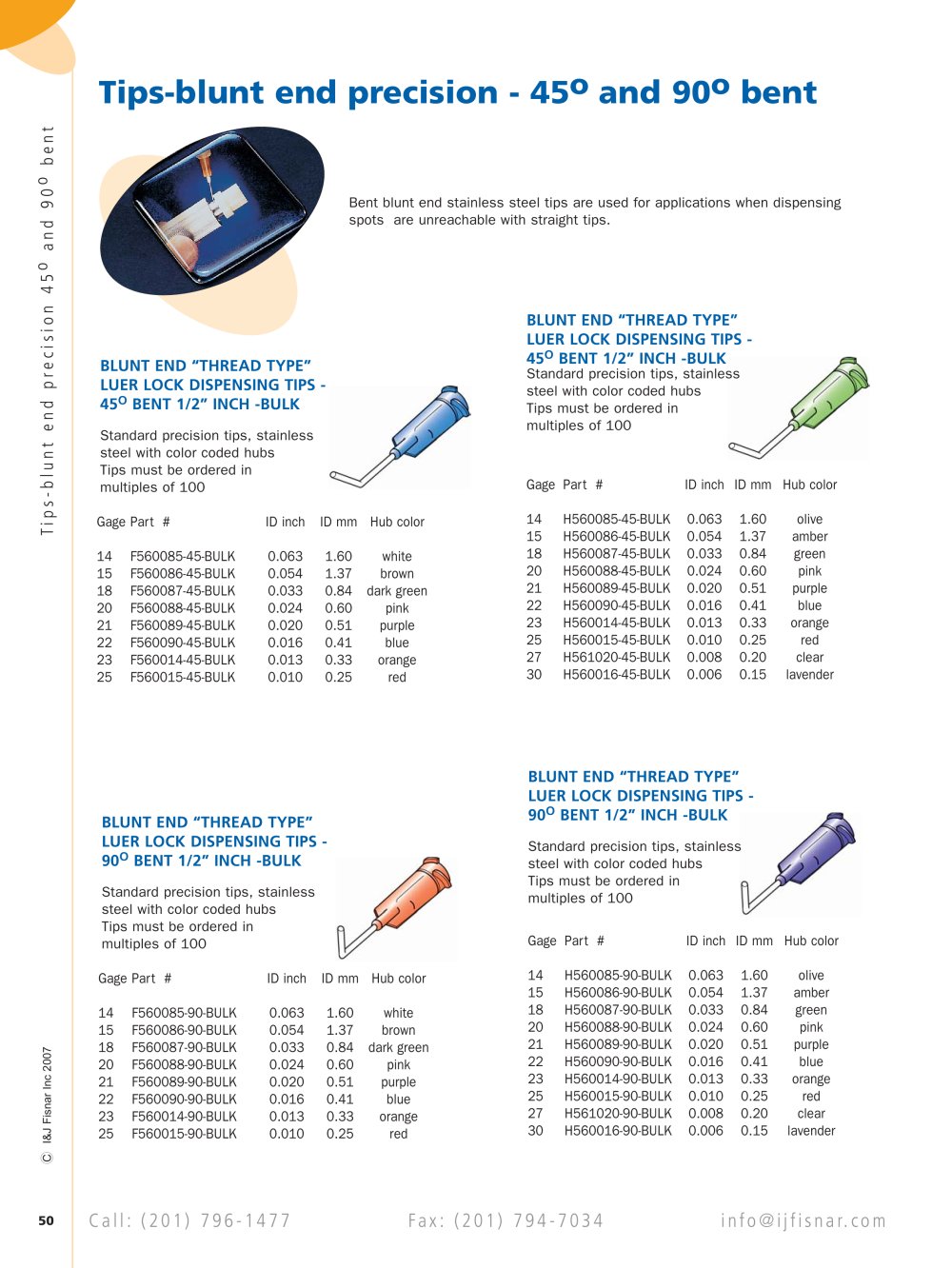

Tips-blunt end precision - 45o and 90o bent
A—' £= Ol _Q
O O
cm n
o
i_n
^t
n
o
o_ n
Bent blunt end stainless steel tips are used for applications when dispensing spots are unreachable with straight tips.
BLUNT END "THREAD TYPE" LUER LOCK DISPENSING TIPS
45O BENT 1/2" INCH -BULK
Standard precision tips, stainless steel with color coded hubs Tips must be ordered in multiples of 100
BLUNT END "THREAD TYPE" LUER LOCK DISPENSING TIPS 45O BENT 1/2" INCH -BULK
Standard precision tips, stainless steel with color coded hubs Tips must be ordered in
multiples of 100
Gage Part #
ID inch
ID mm
Hub color
Gage Part #
ID inch
ID mm
Hub color
14
H560085-45-BULK
0.063
1.60
olive
15
H560086-45-BULK
0.054
1.37
amber
14 F560085-45-BULK
0.063
1.60
white
18
H560087-45-BULK
0.033
0.84
green
15 F560086-45-BULK
0.054
1.37
brown
20
H560088-45-BULK
0.024
0.60
pink
18 F560087-45-BULK
0.033
0.84
dark green
21
H560089-45-BULK
0.020
0.51
purple
20 F560088-45-BULK
0.024
0.60
pink
22
H560090-45-BULK
0.016
0.41
blue
21 F560089-45-BULK
0.020
0.51
purple
23
H560014-45-BULK
0.013
0.33
orange
22 F560090-45-BULK
0.016
0.41
blue
25
H560015-45-BULK
0.010
0.25
red
23 F560014-45-BULK
0.013
0.33
orange
27
H561020-45-BULK
0.008
0.20
clear
25 F560015-45-BULK
0.010
0.25
red
30
H560016-45-BULK
0.006
0.15
lavender
BLUNT END "THREAD TYPE" LUER LOCK DISPENSING TIPS
90O BENT 1/2" INCH -BULK
Standard precision tips, stainless steel with color coded hubs Tips must be ordered in multiples of 100
BLUNT END "THREAD TYPE" LUER LOCK DISPENSING TIPS
90O BENT 1/2" INCH -BULK
Standard precision tips, stainless steel with color coded hubs Tips must be ordered in
multiples of 100
V
Gage Part #
ID inch
ID mm
Hub color
Gage Part #
ID inch
ID mm
Hub color
14
H560085-90-BULK
0.063
1.60
olive
15
H560086-90-BULK
0.054
1.37
amber
14 F560085-90-BULK
0.063
1.60
white
18
H560087-90-BULK
0.033
0.84
green
15 F560086-90-BULK
0.054
1.37
brown
20
H560088-90-BULK
0.024
0.60
pink
18 F560087-90-BULK
0.033
0.84
dark green
21
H560089-90-BULK
0.020
0.51
purple
20 F560088-90-BULK
0.024
0.60
pink
22
H560090-90-BULK
0.016
0.41
blue
21 F560089-90-BULK
0.020
0.51
purple
23
H560014-90-BULK
0.013
0.33
orange
22 F560090-90-BULK
0.016
0.41
blue
25
H560015-90-BULK
0.010
0.25
red
23 F560014-90-BULK
0.013
0.33
orange
27
H561020-90-BULK
0.008
0.20
clear
25 F560015-90-BULK
0.010
0.25
red
30
H560016-90-BULK
0.006
0.15
lavender
1^
o o
CN
TO
Ll
o3
info@ijfisnar.com
Call: (20 1 ) 796- 1 477
Fax: (20 1 ) 794-7034
50
