Ol £=

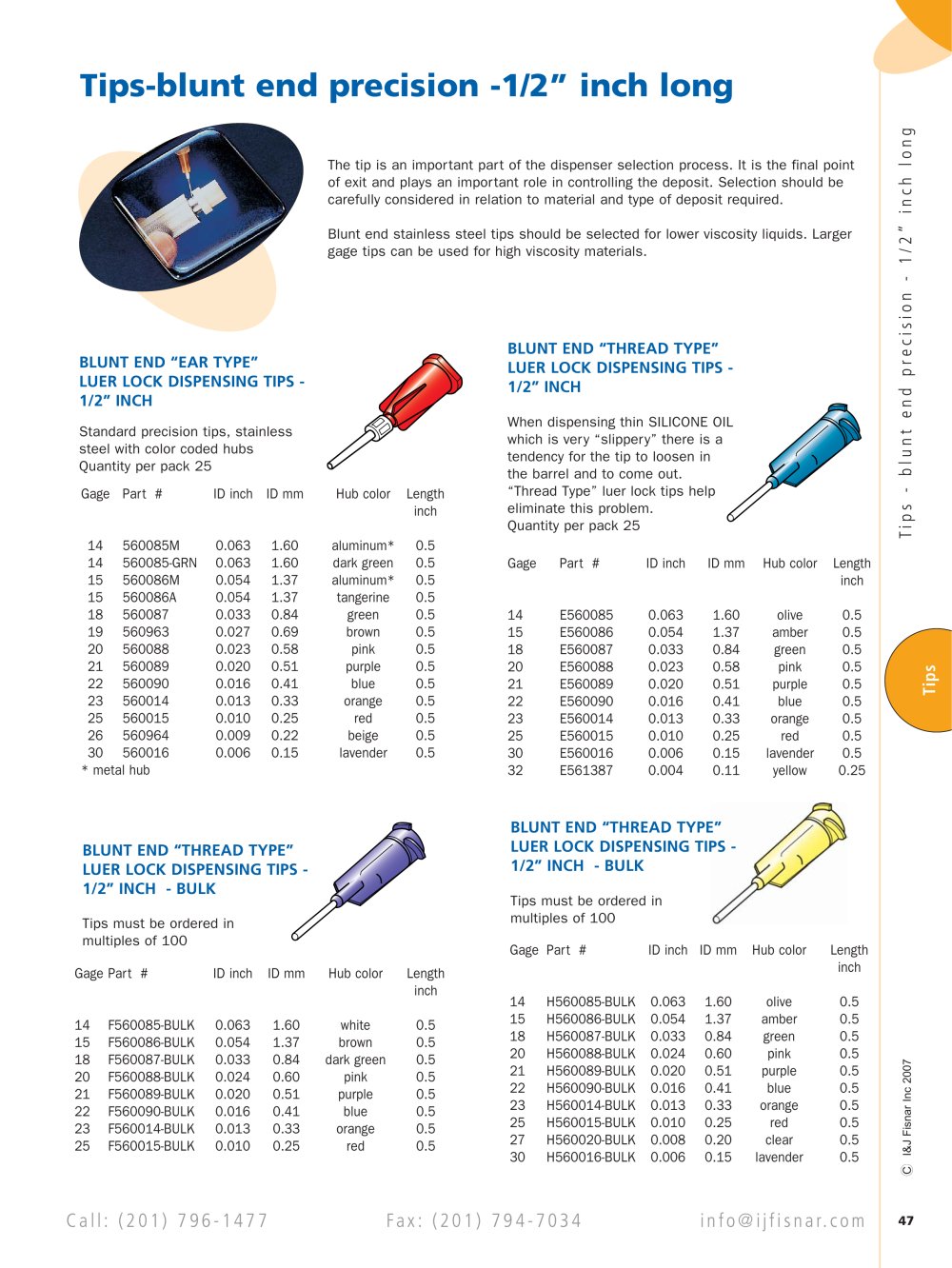

The tip is an important part of the dispenser selection process. It is the final point of exit and plays an important role in controlling the deposit. Selection should be carefully considered in relation to material and type of deposit required.

Blunt end stainless steel tips should be selected for lower viscosity liquids. Larger gage tips can be used for high viscosity materials.

£=

A—'

BLUNT END "THREAD TYPE"

LUER LOCK DISPENSING TIPS -1/2" INCH

When dispensing thin SILICONE OIL which is very "slippery" there is a tendency for the tip to loosen in the barrel and to come out. "Thread Type" luer lock tips help

eliminate this problem. Quantity per pack 25

BLUNT END "EAR TYPE" LUER LOCK DISPENSING TIPS 1/2" INCH

Standard precision tips, stainless steel with color coded hubs Quantity per pack 25

Gage Part #

ID inch ID mm

Hub color Length inch


14	560085M	0.063	1.60	aluminum*	0.5
14	560085-GRN	0.063	1.60	dark green	0.5	Gage	Part #	ID inch	ID mm	Hub color	Length
15	560086M	0.054	1.37	aluminum*	0.5						inch
15	560086A	0.054	1.37	tangerine	0.5
18	560087	0.033	0.84	green	0.5	14	E560085	0.063	1.60	olive	0.5
19	560963	0.027	0.69	brown	0.5	15	E560086	0.054	1.37	amber	0.5
20	560088	0.023	0.58	pink	0.5	18	E560087	0.033	0.84	green	0.5
21	560089	0.020	0.51	purple	0.5	20	E560088	0.023	0.58	pink	0.5
22	560090	0.016	0.41	blue	0.5	21	E560089	0.020	0.51	purple	0.5
23	560014	0.013	0.33	orange	0.5	22	E560090	0.016	0.41	blue	0.5
25	560015	0.010	0.25	red	0.5	23	E560014	0.013	0.33	orange	0.5
26	560964	0.009	0.22	beige	0.5	25	E560015	0.010	0.25	red	0.5
30	560016	0.006	0.15	lavender	0.5	30	E560016	0.006	0.15	lavender	0.5
* metal hub						32	E561387	0.004	0.11	yellow	0.25

BLUNT END "THREAD TYPE" LUER LOCK DISPENSING TIPS 1/2" INCH - BULK

Tips must be ordered in multiples of 100

Tips must be ordered in

multiples of 100

Gage Part #

ID inch ID mm Hub color

Length inch

Gage Part #

ID inch ID mm Hub color

Length inch


14	H560085-BULK	0.063	1.60	olive	0.5
15	H560086-BULK	0.054	1.37	amber	0.5
18	H560087-BULK	0.033	0.84	green	0.5
20	H560088-BULK	0.024	0.60	pink	0.5
21	H560089-BULK	0.020	0.51	purple	0.5
22	H560090-BULK	0.016	0.41	blue	0.5
23	H560014-BULK	0.013	0.33	orange	0.5
25	H560015-BULK	0.010	0.25	red	0.5
27	H560020-BULK	0.008	0.20	clear	0.5
30	H560016-BULK	0.006	0.15	lavender	0.5


14	F560085-BULK	0.063	1.60	white	0.5
15	F560086-BULK	0.054	1.37	brown	0.5
18	F560087-BULK	0.033	0.84	dark green	0.5
20	F560088-BULK	0.024	0.60	pink	0.5
21	F560089-BULK	0.020	0.51	purple	0.5
22	F560090-BULK	0.016	0.41	blue	0.5
23	F560014-BULK	0.013	0.33	orange	0.5
25	F560015-BULK	0.010	0.25	red	0.5

info@ijfisnar.com

034
