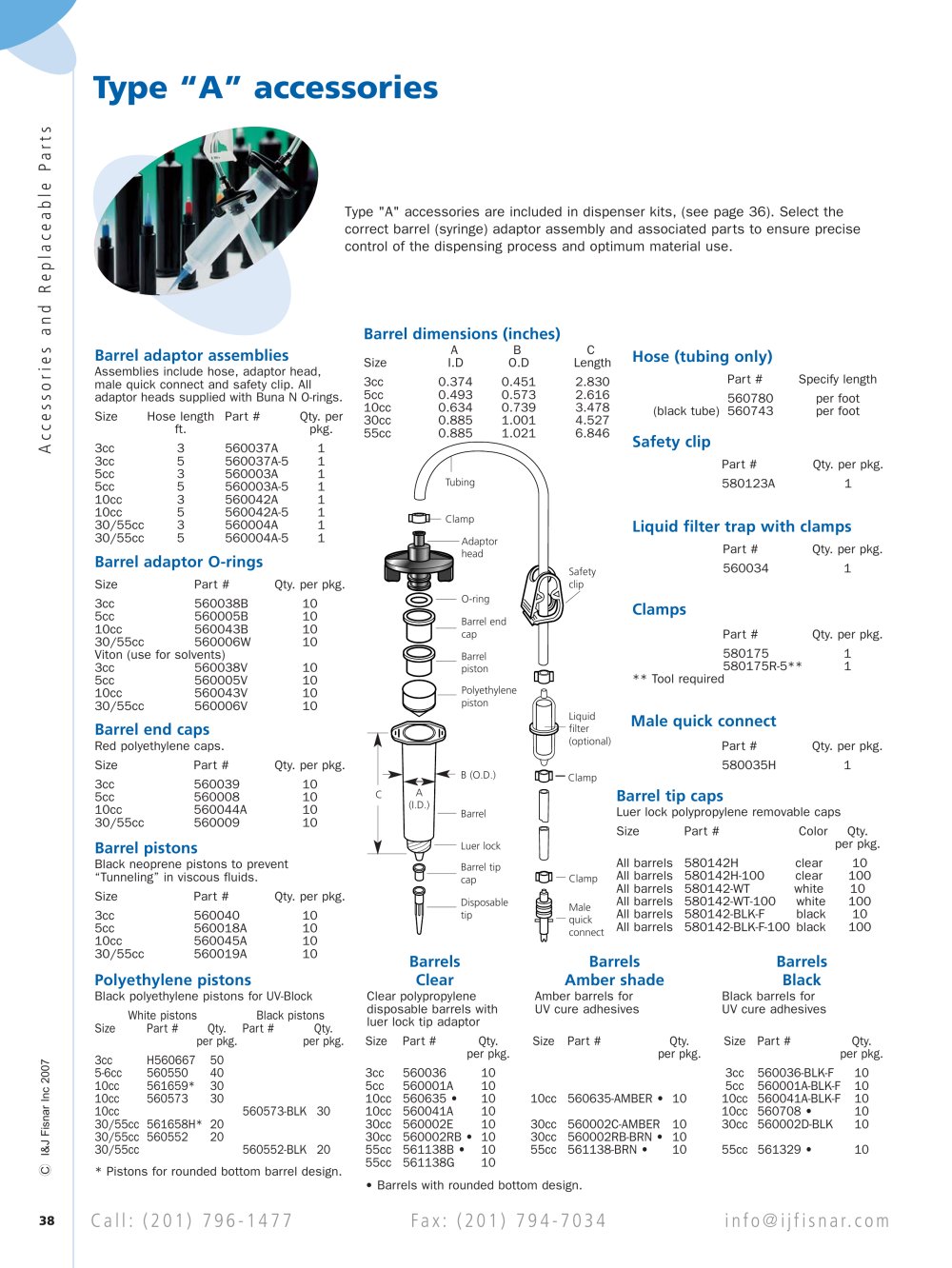

Type "A" accessories ИР"

Type "A" accessories are included in dispenser kits, (see page 36). Select the correct barrel (syringe) adaptor assembly and associated parts to ensure precise control of the dispensing process and optimum material use.

Barrel dimensions (inches)


	A	В	С
Size	I.D	O.D	Length
3cc	0.374	0.451	2.830
5cc	0.493	0.573	2.616
lOcc	0.634	0.739	3.478
30cc	0.885	1.001	4.527
55cc	0.885	1.021	6.846

Barrel adaptor assemblies

Assemblies include hose, adaptor head, male quick connect and safety clip. All adaptor heads supplied with Buna N O-rings.

Hose (tubing only)

Part#

560780 (black tube) 560743

Specify length

per foot per foot

Size

Hose length Part #

Qty. per


	ft.		Pkg
3cc	3	560037A	1
3cc	5	560037A-5	1
5cc	3	560003A	1
5cc	5	560003A-5	1
Юсе	3	560042A	1
Юсе	5	560042A-5	1
30/55cc	3	560004A	1
30/55cc	5	560004A-5	1
Barrel adaptor O-rings
Size		Part # Qty.	per p
3cc		560038B	10
5cc		560005B	10
Юсе		560043B	10
30/55cc		560006W	10
Viton (use for solvents)
3cc		560038V	10
5cc		560005V	10
Юсе		560043V	10
30/55cc		560006V	10

Safety clip

Part# 580123A

Qty. per pkg 1

Liquid filter trap with clamps

Part# 560034

Qty. per pkg 1

Clamps

Part#

580175 580175R-5**

** Tool required

Male quick connect

Part # 580035H

Qty. per pkg.

Liquid filter

(optional)

Barrel end caps

Red polyethylene caps.

Size Part # Qty. per pkg

3cc 560039 10

5cc 560008 10

Юсе 560044A 10

30/55cc 560009 10

Barrel pistons

Black neoprene pistons to prevent "Tunneling" in viscous fluids.

Qty. per pkg 1

Barrel tip caps

Luer lock polypropylene removable caps


Size	Part #	Color	Qty.
			per pkj
All barrels	580142H	clear	10
All barrels	580142H-100	clear	100
All barrels	580142-WT	white	10
All barrels	580142-WT-100	white	100
All barrels	580142-BLK-F	black	10
All barrels	580142-BLK-F-100	black	100

Size

3cc 5cc Юсе 30/55cc

Part #

560040 560018A 560045A 560019A

Qty. per pkg

10 10 10 10

Barrels Clear

Clear polypropylene disposable barrels with luer lock tip adaptor

Barrels Amber shade

Amber barrels for UV cure adhesives

Barrels Black

Black barrels for UV cure adhesives

Polyethylene pistons

Black polyethylene pistons for UV-Block

White pistons Black pistons

Size Part # Qty. Part # Qty.

per pkg. per pkg

3cc H560667 50

5-6cc 560550 40

lOcc 561659* 30

lOcc 560573 30


Size	Part #	Qty.	Size	Part # Qty.	Size	Part # Qty.
		per pkg.		per pkg.		per pk
3cc	560036	10			3cc	560036-BLK-F 10
5cc	560001A	10			5cc	560001A-BLK-F 10
lOcc	560635 •	10	lOcc	560635-AMBER • 10	lOcc	560041A-BLK-F 10
lOcc	560041A	10			lOcc	560708 • 10
30cc	560002E	10	ЗОсс	560002C-AMBER 10	ЗОсс	560002D-BLK 10
ЗОсс	560002RB	• 10	ЗОсс	560002RB-BRN • 10
55cc	561138B •	10	55cc	561138-BRN • 10	55cc	561329 • 10
55cc	561138G	10

lOcc

560573-BLK 30

30/55cc 561658H* 20

30/55cc 560552 20 30/55cc

560552-BLK 20

* Pistons for rounded bottom barrel design.

Barrels with rounded bottom design.
