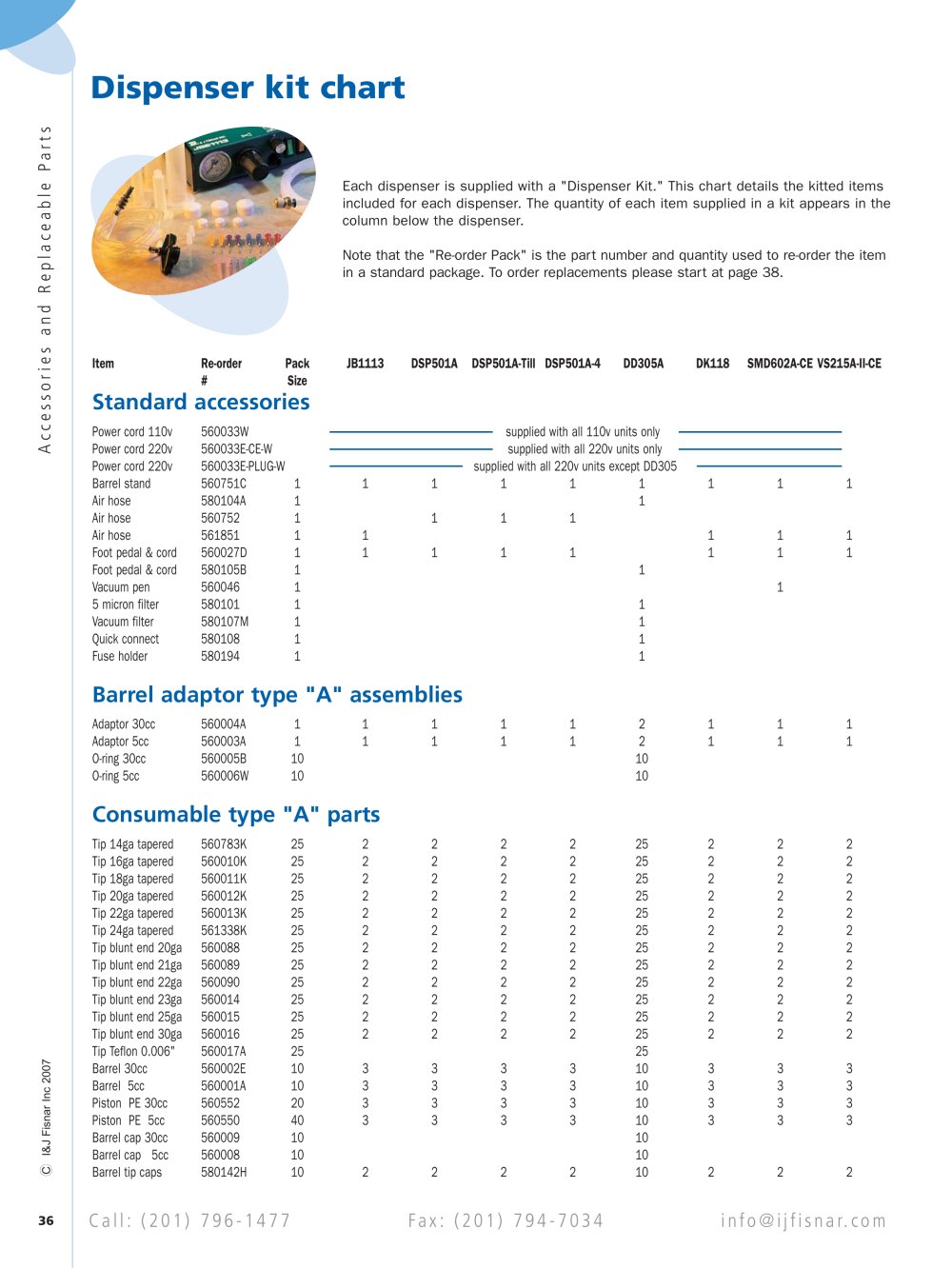

Dispenser kit chart

-I—'

Each dispenser is supplied with a "Dispenser Kit." This chart details the kitted items included for each dispenser. The quantity of each item supplied in a kit appears in the column below the dispenser.

Note that the "Re-order Pack" is the part number and quantity used to re-order the item in a standard package. To order replacements please start at page 38.

Item

Re-order

Pack

JB1113

DSP501A DSP501A-Till DSP501A-4 DD305A

DK118 SMD602A-CE VS215A-II-CE

# Size

Standard accessories


Power cord 110v	560033W		supplied with all 110v units only
Power cord 220v	560033E-CE-W		supplied with all 220v units only
Power cord 220v	560033E-PLUG-W		- supplied with all 220v units except DD305
Barrel stand	560751C	1	11111111
Air hose	580104A	1	1
Air hose	560752	1	111
Air hose	561851	1	1	111
Foot pedal & cord	560027D	1	1111	111
Foot pedal & cord	580105B	1	1
Vacuum pen	560046	1		1
5 micron filter	580101	1	1
Vacuum filter	580107M	1	1
Quick connect	580108	1	1
Fuse holder	580194	1	1
Barrel adaptor type "A" assemblies
Adaptor 30cc	560004A	1	11112111
Adaptor 5cc	560003A	1	11112111
O-ring 30cc	560005B	10	10
O-ring 5cc	560006W	10	10
Consumable type		A	parts
Tip 14ga tapered	560783K	25	2222 25	222
Tip 16ga tapered	560010K	25	2222 25	222
Tip 18ga tapered	560011K	25	2222 25	222
Tip 20ga tapered	560012K	25	2222 25	222
Tip 22ga tapered	560013K	25	2222 25	222
Tip 24ga tapered	561338K	25	2222 25	222
Tip blunt end 20ga	560088	25	2222 25	222
Tip blunt end 21ga	560089	25	2222 25	222
Tip blunt end 22ga	560090	25	2222 25	222
Tip blunt end 23ga	560014	25	2222 25	222
Tip blunt end 25ga	560015	25	2222 25	222
Tip blunt end 30ga	560016	25	2222 25	222
Tip Teflon 0.006"	560017A	25	25
Barrel 30cc	560002E	10	3333 10	333
Barrel 5cc	560001A	10	3333 10	333
Piston PE 30cc	560552	20	3333 10	333
Piston PE 5cc	560550	40	3333 10	333
Barrel cap 30cc	560009	10	10
Barrel cap 5cc	560008	10	10
Barrel tip caps	580142H	10	2222 10	222

C\l

ü _c

c Ll_

-3

info@ijfisnar.com

Call: (201 ) 796- 1 477

Fax: (201 ) 794-7034
