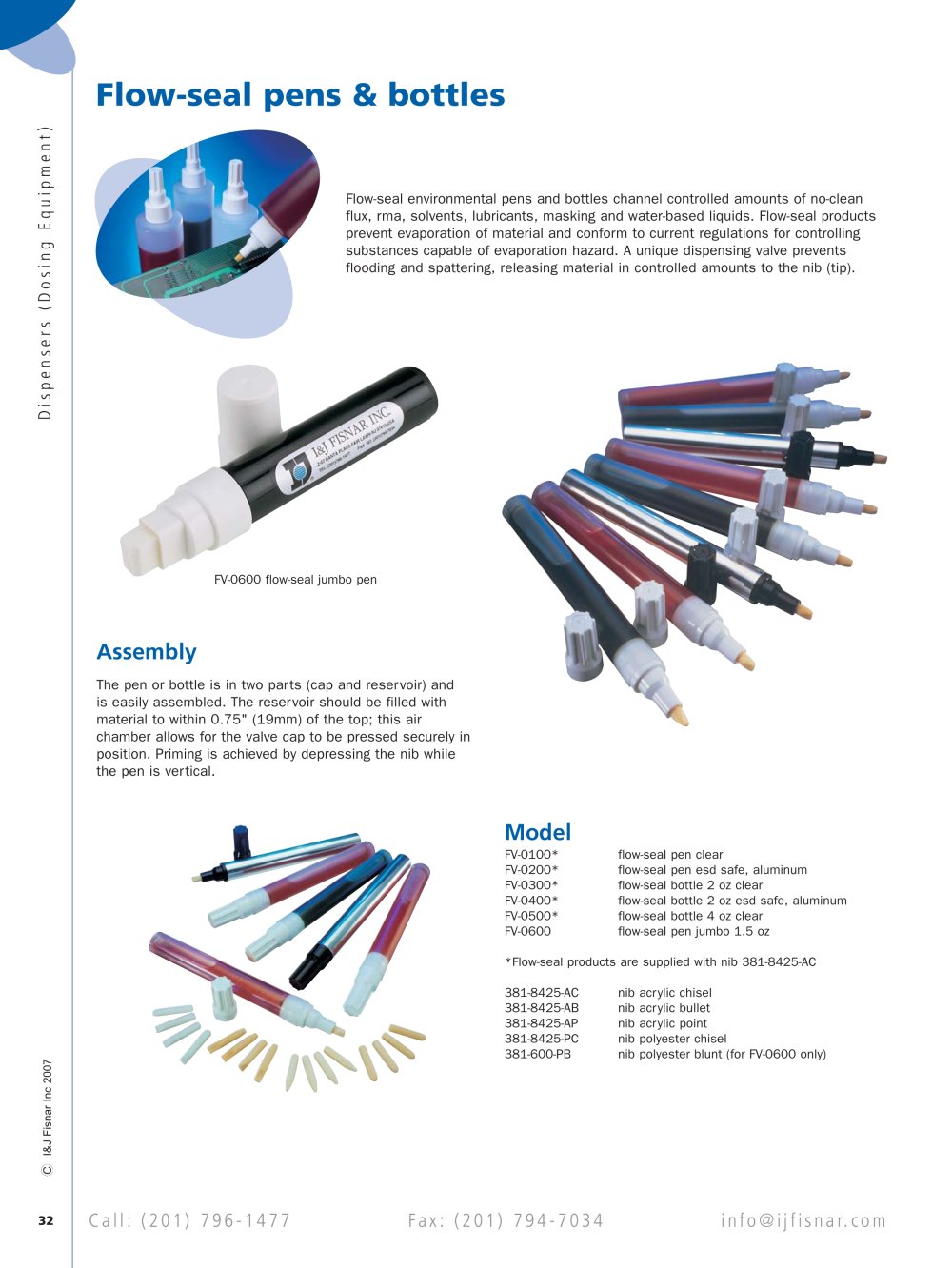

| Flow-seal pens & bottles | ||||||||||||||||||||||||||||||||
| Flow-seal environmental pens and bottles channel controlled amounts of no-clean flux, rma, solvents, lubricants, masking and water-based liquids. Flow-seal products prevent evaporation of material and conform to current regulations for controlling substances capable of evaporation hazard. A unique dispensing valve prevents flooding and spattering, releasing material in controlled amounts to the nib (tip). | ||||||||||||||||||||||||||||||||
| d LO o | ||||||||||||||||||||||||||||||||
| FV-0600 flow-seal jumbo pen | ||||||||||||||||||||||||||||||||
| Assembly | ||||||||||||||||||||||||||||||||
| The pen or bottle is in two parts (cap and reservoir) and is easily assembled. The reservoir should be filled with material to within 0.75" (19mm) of the top; this air chamber allows for the valve cap to be pressed securely in position. Priming is achieved by depressing the nib while the pen is vertical. | ||||||||||||||||||||||||||||||||
| Mc | ||||||||||||||||||||||||||||||||
| FV-0100* FV-0200* FV-0300* FV-0400* FV-0500* FV-0600 | flow-seal pen clear flow-seal pen esd safe, aluminum flow-seal bottle 2 oz clear flow-seal bottle 2 oz esd safe, aluminum flow-seal bottle 4 oz clear flow-seal pen jumbo 1.5 oz | |||||||||||||||||||||||||||||||
| *Flow-seal products are supplied with nib 381-8425-AC 381-8425-AC nib acrylic chisel 381-8425-AB nib acrylic bullet 381-8425-AP nib acrylic point 381-8425-PC nib polyester chisel 381-600-PB nib polyester blunt (for FV-0600 only) | ||||||||||||||||||||||||||||||||
| o o CN Ü _c TO Ll_ | ||||||||||||||||||||||||||||||||
| info@ijfisnar.com | ||||||||||||||||||||||||||||||||
| Call: (201 ) 796- 1 477 | Fax: (201 ) 794-7034 | |||||||||||||||||||||||||||||||
