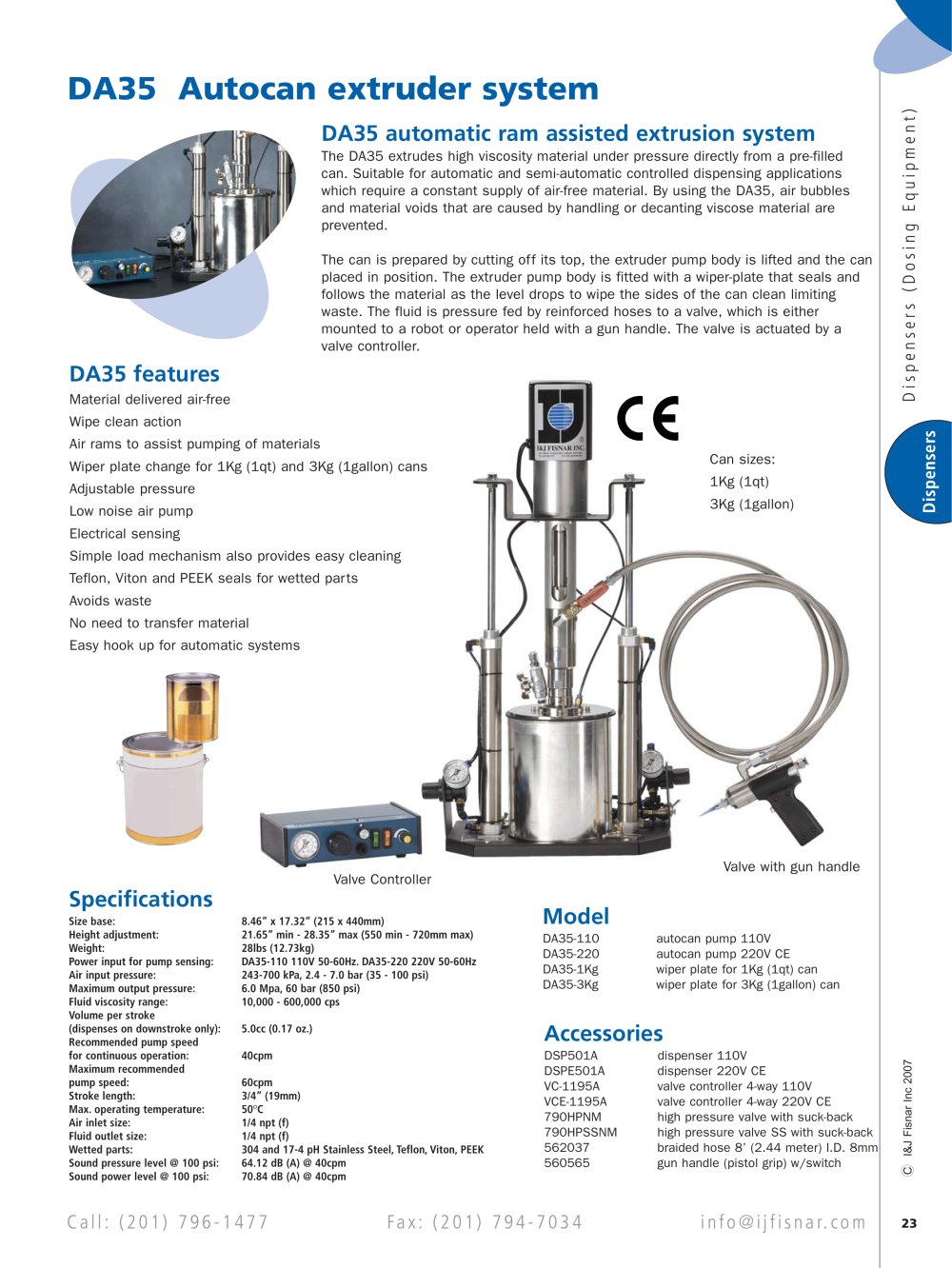

| DA35 automatic ram assisted extrusion system The DA35 extrudes high viscosity material under pressure directly from a pre-filled can. Suitable for automatic and semi-automatic controlled dispensing applications which require a constant supply of air-free material. By using the DA35, air bubbles and material voids that are caused by handling or decanting viscose material are prevented. The can is prepared by cutting off its top, the extruder pump body is lifted and the can placed in position. The extruder pump body is fitted with a wiper-plate that seals and follows the material as the level drops to wipe the sides of the can clean limiting waste. The fluid is pressure fed by reinforced hoses to a valve, which is either mounted to a robot or operator held with a gun handle. The valve is actuated by a valve controller. | ||||||||||||||||||||||||||
| Ol | ||||||||||||||||||||||||||
| o | ||||||||||||||||||||||||||
| DA35 features Material delivered air-free Wipe clean action Air rams to assist pumping of materials Wiper plate change for 1Kg (1qt) and 3Kg (lgallon) cans Adjustable pressure Low noise air pump Electrical sensing Simple load mechanism also provides easy cleaning Teflon, Viton and PEEK seals for wetted parts Avoids waste No need to transfer material Easy hook up for automatic systems | ||||||||||||||||||||||||||
| Valve with gun handle | ||||||||||||||||||||||||||
| Valve Controller | ||||||||||||||||||||||||||
| Specifications Size base: Height adjustment: Weight: Power input for pump sensing: Air input pressure: Maximum output pressure: Fluid viscosity range: Volume per stroke (dispenses on downstroke only): Recommended pump speed for continuous operation: Maximum recommended pump speed: Stroke length: Max. operating temperature: Air inlet size: Fluid outlet size: Wetted parts: Sound pressure level @ 100 psi: Sound power level @ 100 psi: | ||||||||||||||||||||||||||
| Model DA35-110 autocan pump 110V DA35-220 autocan pump 220V CE DA35-1Kg wiper plate for 1Kg (1qt) can DA35-3Kg wiper plate for 3Kg (1gallon) can | ||||||||||||||||||||||||||
| 8.46" x 17.32" (215 x 440mm) 21.65" min - 28.35" max (550 min - 720mm max) 28lbs (12.73kg) DA35-110 110V 50-60Hz. DA35-220 220V 50-60Hz 243-700 kPa, 2.4 - 7.0 bar (35 - 100 psi) 6.0 Mpa, 60 bar (850 psi) 10,000 - 600,000 cps 5.0cc (0.17 oz.) 40cpm 60cpm 3/4" (19mm) 50°C 1/4 npt (f) 1/4 npt (f) 304 and 17-4 pH Stainless Steel, Teflon,Viton, PEEK 64.12 dB (A) @ 40cpm 70.84 dB (A) @ 40cpm | ||||||||||||||||||||||||||
| DSP501A dispenser 110V DSPE501A dispenser 220V CE VC-1195A valve controller 4-way 110V VCE-1195A valve controller 4-way 220V CE 790HPNM high pressure valve with suck-back 790HPSSNM high pressure valve SS with suck-back 562037 braided hose 8' (2.44 meter) I.D. 8mm 560565 gun handle (pistol grip) w/switch | ||||||||||||||||||||||||||
