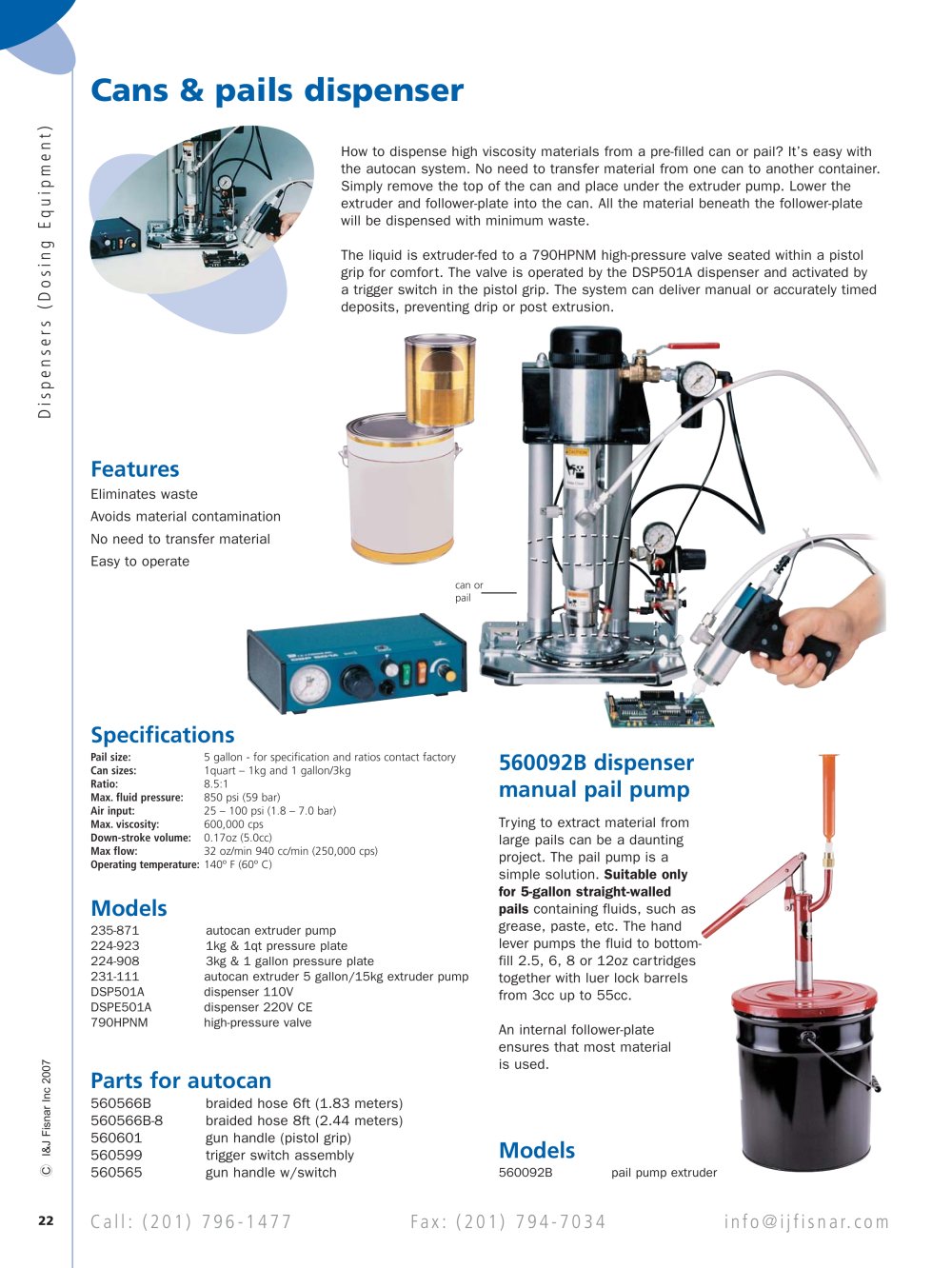

| Cans & pails dispenser | |||||||||||||||||||||||||||||
| How to dispense high viscosity materials from a pre-filled can or pail? It's easy with the autocan system. No need to transfer material from one can to another container. Simply remove the top of the can and place under the extruder pump. Lower the extruder and follower-plate into the can. All the material beneath the follower-plate will be dispensed with minimum waste. The liquid is extruder-fed to a 790HPNM high-pressure valve seated within a pistol grip for comfort. The valve is operated by the DSP501A dispenser and activated by a trigger switch in the pistol grip. The system can deliver manual or accurately timed deposits, preventing drip or post extrusion. | |||||||||||||||||||||||||||||
| LO o | |||||||||||||||||||||||||||||
| Features Eliminates waste Avoids material contamination No need to transfer material Easy to operate | |||||||||||||||||||||||||||||
| Specifications | |||||||||||||||||||||||||||||
| Pail size: 5 gallon - for specification and ratios contact factory Can sizes: Iquart - 1kg and 1 gallon/3kg Ratio: 8.5:1 Max. fluid pressure: 850 psi (59 bar) Air input: 25 - 100 psi (1.8 - 7.0 bar) Max. viscosity: 600,000 cps Down-stroke volume: 0.17oz (5.0cc) Max flow: 32 oz/min 940 cc/min (250,000 cps) Operating temperature: 140° F (60° C) | |||||||||||||||||||||||||||||
| 560092B dispenser manual pail pump Trying to extract material from large pails can be a daunting project. The pail pump is a simple solution. Suitable only for 5-gallon straight-walled pails containing fluids, such as grease, paste, etc. The hand lever pumps the fluid to bottom-fill 2.5, 6, 8 or 12oz cartridges together with luer lock barrels from 3cc up to 55cc. An internal follower-plate ensures that most material is used. | |||||||||||||||||||||||||||||
| Models 235-871 autocan extruder pump 224-923 1kg & 1qt pressure plate 224-908 3kg & 1 gallon pressure plate 231-111 autocan extruder 5 gallon/15kg extruder pump DSP501A dispenser 110V DSPE501A dispenser 220V CE 790HPNM high-pressure valve | |||||||||||||||||||||||||||||
| r-- o o CN Ü _c ai Ll_ | |||||||||||||||||||||||||||||
| Parts for autocan 560566B braided hose 6ft (1.83 meters) 560566B-8 braided hose 8ft (2.44 meters) 560601 gun handle (pistol grip) 560599 trigger switch assembly 560565 gun handle w/switch | |||||||||||||||||||||||||||||
| Model: 560092B | |||||||||||||||||||||||||||||
| pail pump extruder | |||||||||||||||||||||||||||||
| info@ijfisnar.com | |||||||||||||||||||||||||||||
| Call: (20 1 ) 796- 1 477 | Fax: (201) 794-7034 | ||||||||||||||||||||||||||||
| 22 | |||||||||||||||||||||||||||||
