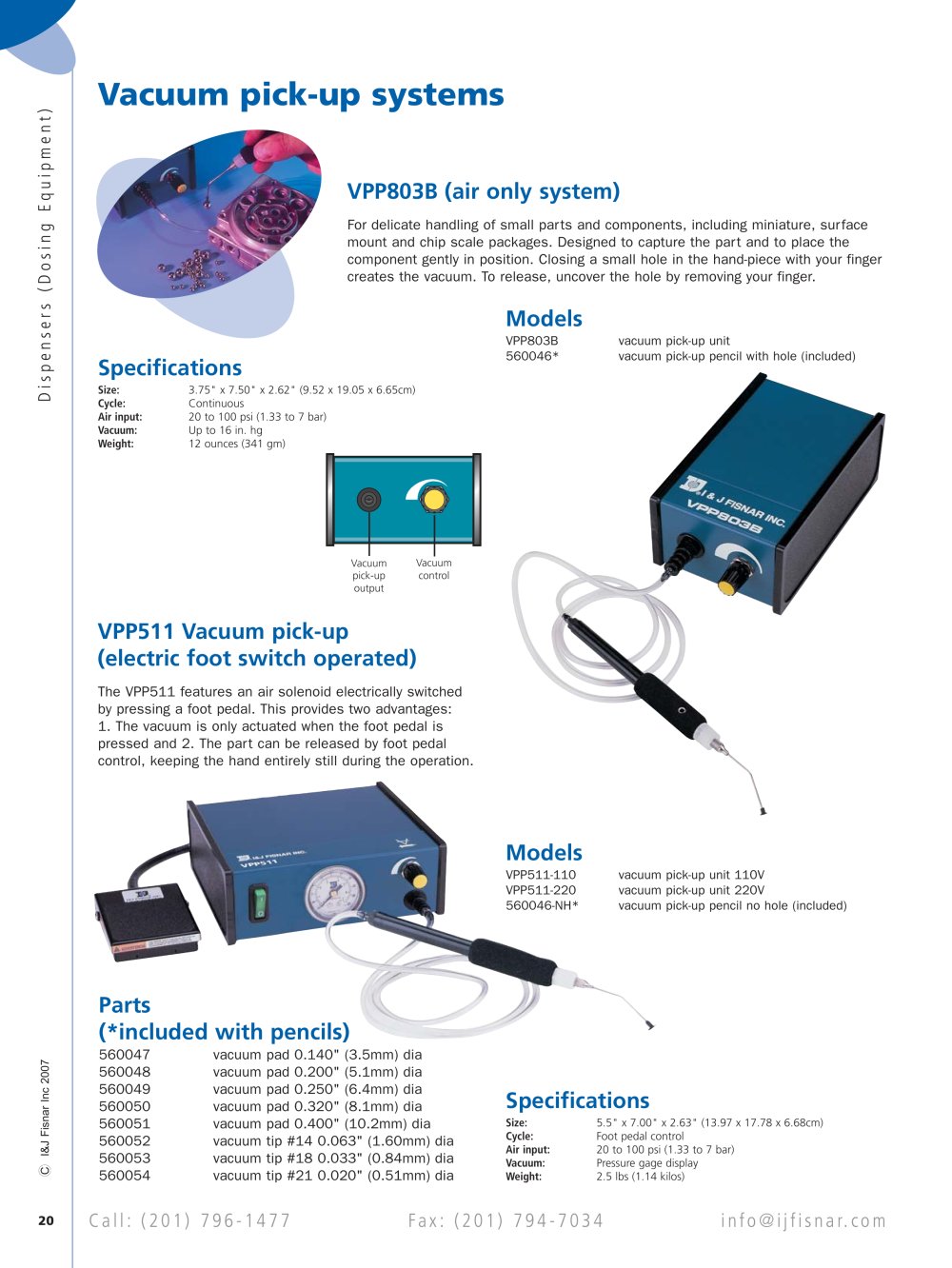

| Vacuum pick-up systems | |||||||||||||||||||||||||||||||||||||
| VPP803B (air only system) | |||||||||||||||||||||||||||||||||||||
| For delicate handling of small parts and components, including miniature, surface mount and chip scale packages. Designed to capture the part and to place the component gently in position. Closing a small hole in the hand-piece with your finger creates the vacuum. To release, uncover the hole by removing your finger. | |||||||||||||||||||||||||||||||||||||
| d LO o | |||||||||||||||||||||||||||||||||||||
| Models VPP803B 560046* | |||||||||||||||||||||||||||||||||||||
| vacuum pick-up unit vacuum pick-up pencil with hole (included) | |||||||||||||||||||||||||||||||||||||
| Specifications | |||||||||||||||||||||||||||||||||||||
| Size: 3.75" x 7.50" x 2.62" (9.52 x 19.05 x 6.65cm) Cycle: Continuous Air input: 20 to 100 psi (1.33 to 7 bar) Vacuum: Up to 16 in. hg Weight: 12 ounces (341 gm) | |||||||||||||||||||||||||||||||||||||
| VPP511 Vacuur (electric foot switch operated) The VPP511 features an air solenoid electrically switched by pressing a foot pedal. This provides two advantages: 1. The vacuum is only actuated when the foot pedal is pressed and 2. The part can be released by foot pedal control, keeping the hand entirely still during the operation. | |||||||||||||||||||||||||||||||||||||
| Models VPP511-110 VPP511-220 560046-NH* | |||||||||||||||||||||||||||||||||||||
| vacuum pick-up unit 110V vacuum pick-up unit 220V vacuum pick-up pencil no hole (included) | |||||||||||||||||||||||||||||||||||||
| Parts (*included with pencils) __ 560047 vacuum pad 0.140" (3.5mm) dia 560048 vacuum pad 0.200" (5.1mm) dia 560049 vacuum pad 0.250" (6.4mm) dia 560050 vacuum pad 0.320" (8.1mm) dia 560051 vacuum pad 0.400" (10.2mm) dia 560052 vacuum tip #14 0.063" (1.60mm) dia 560053 vacuum tip #18 0.033" (0.84mm) dia 560054 vacuum tip #21 0.020" (0.51mm) dia | |||||||||||||||||||||||||||||||||||||
| o o CN Ü | |||||||||||||||||||||||||||||||||||||
| Specificatio | |||||||||||||||||||||||||||||||||||||
| re | |||||||||||||||||||||||||||||||||||||
| Size: 5.5" x 7.00" x 2.63" (13.97 x 17.78 x 6.68cm) Cycle: Foot pedal control Air input: 20 to 100 psi (1.33 to 7 bar) Vacuum: Pressure gage display Weight: 2.5 lbs (1.14 kilos) | |||||||||||||||||||||||||||||||||||||
