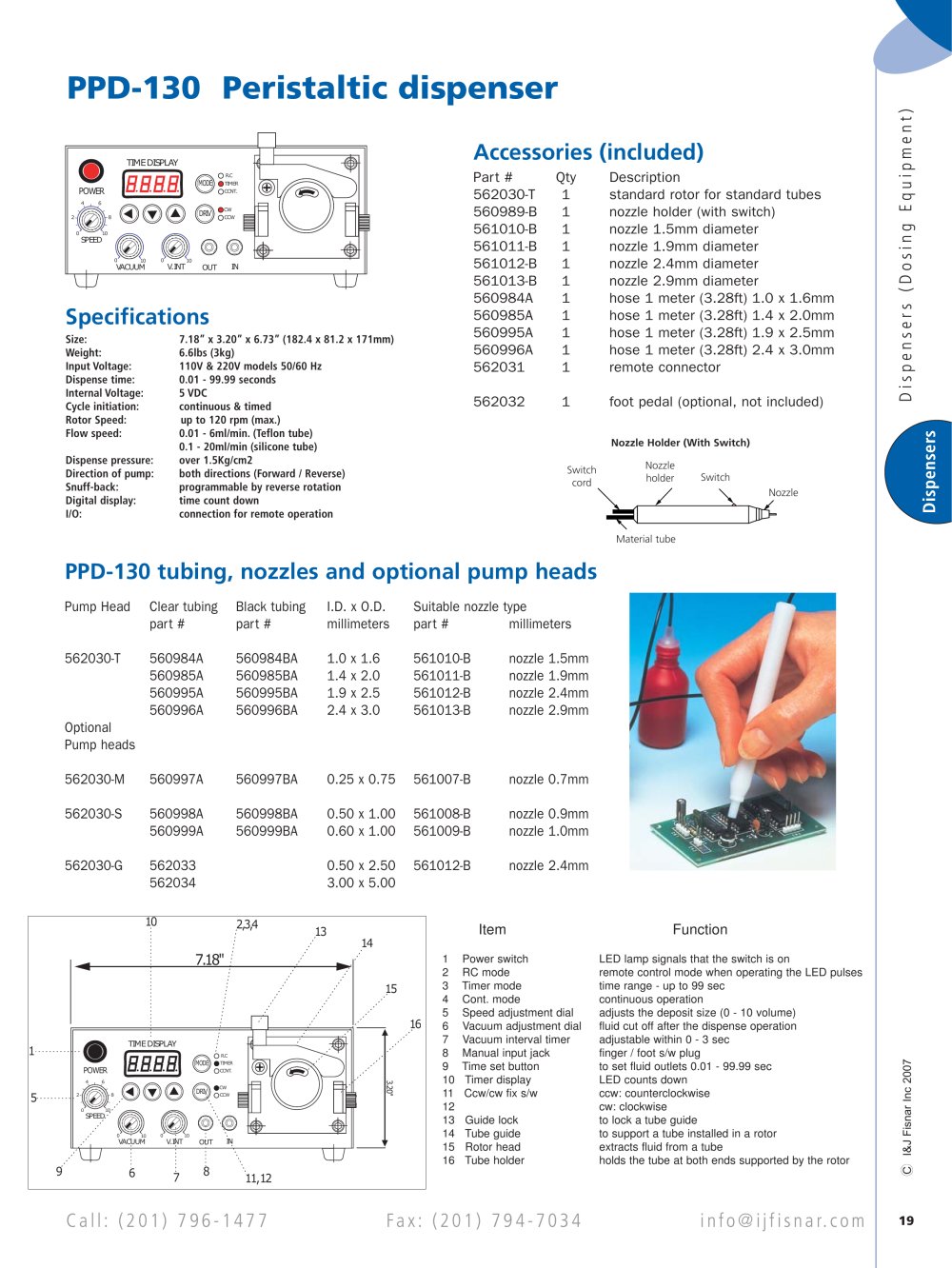

Accessories (included)

TIMEDISP_AY

Part #

562030-T

560989-B

561010-B

561011-B

561012-B

561013-B

560984A

560985A

560995A

560996A

562031 562032

Qty 1 1 1 1 1 1 1 1 1 1 1

Description

standard rotor for standard tubes

nozzle holder (with switch)

nozzle 1.5mm diameter

nozzle 1.9mm diameter

nozzle 2.4mm diameter

nozzle 2.9mm diameter

hose 1 meter (3.28ft) 1.0 x 1.6mm

hose 1 meter (3.28ft) 1.4 x 2.0mm

hose 1 meter (3.28ft) 1.9 x 2.5mm

hose 1 meter (3.28ft) 2.4 x 3.0mm

remote connector

foot pedal (optional, not included)

Nozzle Holder (With Switch)

plODffl Otimer

Qccnt

POWER

^^^)||[8 ^^D^/ Occ»

VACUUM V. INT OUT

Specifications

Size: 7.18" x 3.20" x 6.73" (182.4 x 81.2 x 171mm)

Weight: 6.6lbs (3kg)

Input Voltage: 110V & 220V models 50/60 Hz

Dispense time: 0.01 - 99.99 seconds

Internal Voltage: 5 VDC

Cycle initiation: continuous & timed

Rotor Speed: up to 120 rpm (max.)

Flow speed: 0.01 - 6ml/min. (Teflon tube) 0.1 - 20ml/min (silicone tube)

Dispense pressure: over 1.5Kg/cm2

Direction of pump: both directions (Forward / Reverse)

Snuff-back: programmable by reverse rotation

Digital display: time count down

I/O: connection for remote operation

Nozzle holder

Switch cord

Switch

Nozzle

in*

Material tube

heads

Pump Head

Clear tubing part #

560984A 560985A 560995A 560996A

Black tubing

part #

560984BA 560985BA 560995BA 560996BA

I.D. x O.D.

millimeters

1.0 x 1.6 1.4 x 2.0 1.9 x 2.5 2.4 x 3.0

Suitable nozzle type

part # millimeters

562030-T

561010-B 561011-B 561012-B 561013-B

nozzle 1.5mm nozzle 1.9mm nozzle 2.4mm nozzle 2.9mm

Optional Pump heads

562030-M 560997A

560997BA

560998BA 560999BA

0.25 x 0.75 561007-B

0.50 x 1.00 561008-B

0.60 x 1.00 561009-B

0.50 x 2.50 561012-B 3.00 x 5.00

nozzle 0.7mm

nozzle 0.9mm nozzle 1.0mm

nozzle 2.4mm

562030-S

560998A 560999A

562033 562034

562030-G

2,3,4

Item

Function


1	Power switch	LED lamp signals that the switch is on
2	RC mode	remote control mode when operating the LED pulses
3	Timer mode	time range - up to 99 sec
4	Cont. mode	continuous operation
5	Speed adjustment dial	adjusts the deposit size (0 - 10 volume)
6	Vacuum adjustment dial	fluid cut off after the dispense operation
7	Vacuum interval timer	adjustable within 0 - 3 sec
8	Manual input jack	finger / foot s/w plug
9	Time set button	to set fluid outlets 0.01 - 99.99 sec
10	Timer display	LED counts down
11	Ccw/cw fix s/w	ccw: counterclockwise
12		cw: clockwise
13	Guide lock	to lock a tube guide
14	Tube guide	to support a tube installed in a rotor
15	Rotor head	extracts fluid from a tube
16	Tube holder	holds the tube at both ends supported by the rotor

o o

TO U_

11, 12
